Remove/Install Light Switch Module - AR54.25-P-3270LF

MODEL 217, 222

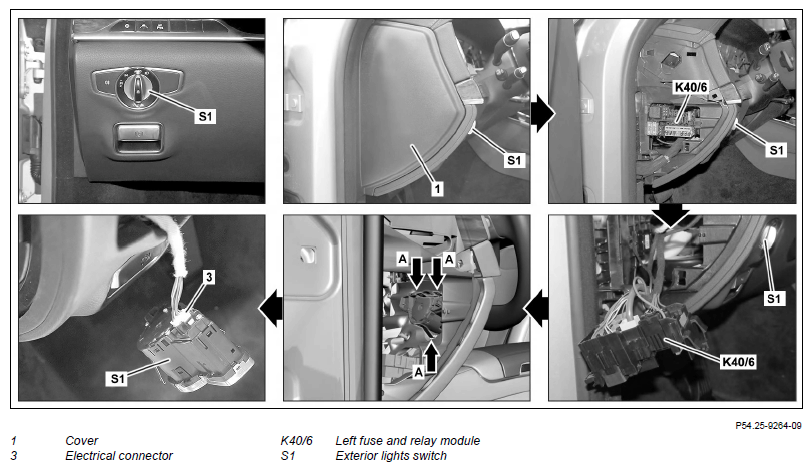

Fig 1: Light Switch Module Component Location - Model 217 (Shown On Model 222)

Courtesy of MERCEDES-BENZ USA

Shown on model 222

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove cover (1)
2	Unclip left fuse and relay module (K40/6) from instrument panel
3	Unclip exterior lights switch (S1) and pull far enough out until the electrical connection (3) is accessible	To do so, reach through the opening for the left fuse and relay module (K40/6) and press the clamps (arrows A) on the exterior lights switch (S1) together.
4	Detach electrical connection (3) and remove exterior lights switch (S1)
5	Install in the reverse order
