Remove/Install Paneling On A-Pillar - AR68.30-P-4050LCA
Model 217.4
MODIFICATION NOTES
| 16.08.2017 | Disconnect electrical connector of microphones as of model year 2018. | Operation step 4. |
Shown on model 217.4 up to model year 2018
Shown on model 217.4 as of model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

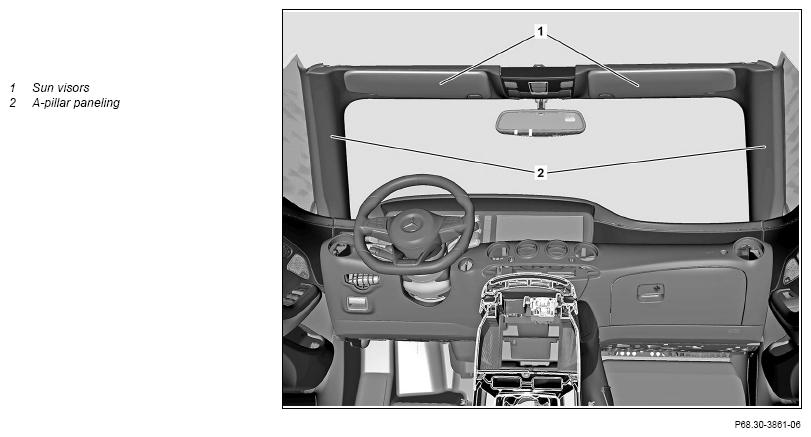

| 1 | Remove sun visors (1) | AR68.60-P-5480NKB | |
| 2 | Unclip A-pillar paneling (2) | ||
| 3 | Disconnect electrical connectors from sun visor illumination | ||

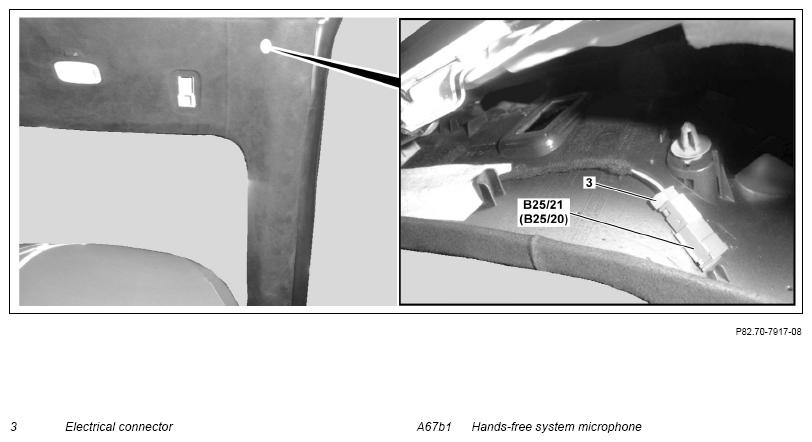

| 4 | Disconnect electrical connector (3) from front-passenger hands-free system microphone (B25/21) and/or electrical connector (3) from driver's hands-free system microphone (B25/20) in left A-pillar trim (2) | Model 217.4 as of model year 2018 | |
| 5 | Remove A-pillar paneling (2) | ||
| 6 | Install in the reverse order |
