Remove/Install Center Instrument Panel Cover - AR68.10-P-3430LF

MODEL 217, 222.0/1/9

Shown on MODEL 222 without CODE 463 (Head-up display)

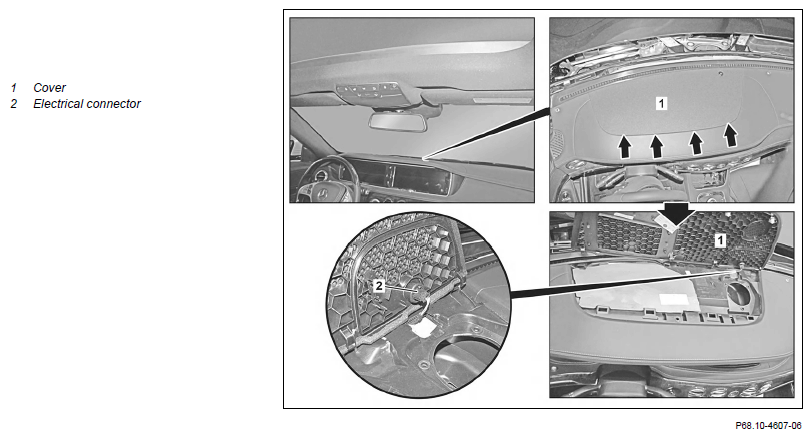

Fig 1: Center Instrument Panel Cover Component Location - Model 217 (Shown On Model 222 Without Code 463)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key
2	Unclip cove (1) and lift	Carefully push clip remover between instrument panel and cover (1) (arrows). Clip remover	Fig 2
3	Disconnect electrical connector (2)
4	Take off cover (1)	Cover (1) is inserted into instrument panel at front.
5	Transfer sun visor	When replacing cover (1)
6	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
