Remove/Install Cover Below Instrument Panel (Left) - AR68.10-P-1500LF
MODEL 217, 222.0/1/9

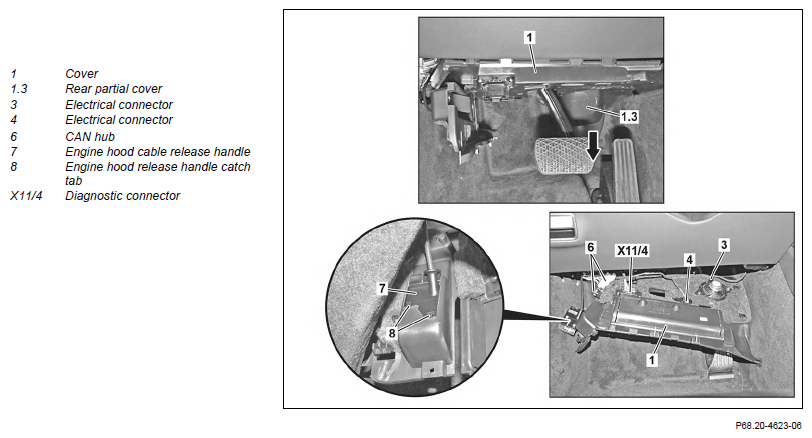

Shown on model 222

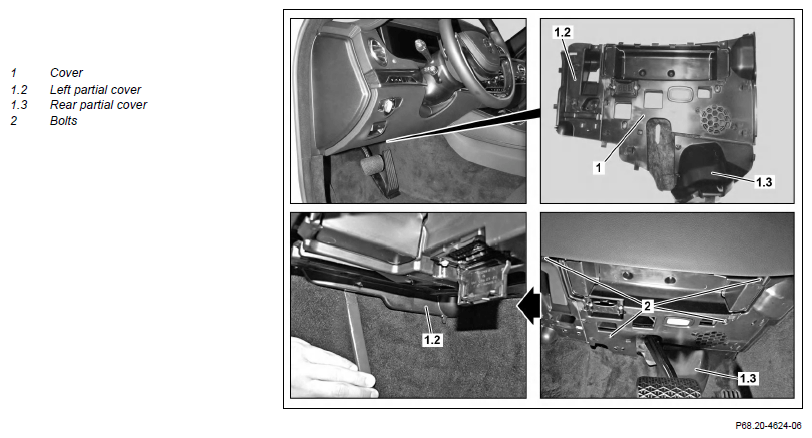

Shown on model 222
| Remove/install | |||
| 1 | Move driver seat to end position toward rear | ||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Remove driver kneebag | MODEL 217 MODEL 222.0/1/9 with CODE 294 (Kneebag) |
AR91.60-P-0200LF |
| 4 | Remove bolts (2) | ||
| 5 | Fold left partial cover (1.2) down with suitable tool | ||
| 6 | Pull left partial cover (1.3) down in direction of arrow | ||
| 7 | Push cover (1) in direction of travel and lower | ||
| 8 | Unlock diagnostic connector (X11/4) and remove from cover (1) | ||
| 9 | Detach electrical connections (3, 4) | ||
| 10 | Unclip CAN distributor (6) | ||
| 11 | Detach engine hood cable release handle catch tab (8) and guide engine hood cable release handle (7) toward inside through cover (1) | ||
| 12 | Remove cover (1) from footwell | ||
| 13 | Transfer speaker and footwell lamp | When replacing cover (1) | |
| 14 | Install in the reverse order |
