Remove/Install Glove Compartment - AR68.10-P-1400LC

Model 217

Shown on vehicle with CODE P21 (Air quality package)

Courtesy of MERCEDES-BENZ USA

Shown with code 380 (Car telephony package)

Courtesy of MERCEDES-BENZ USA

	Remove/install
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove flacon (2) from glove compartment (1).	Model 217 with code P21 (Air quality package)
2	Release and disconnect electrical connectors of telephone control unit (N123/9).	Model 217 with code 380 (Car telephony package)
3	Remove bracket (10) with telephone control unit (N123/9).	Model 217 with code 380 (Car telephony package)

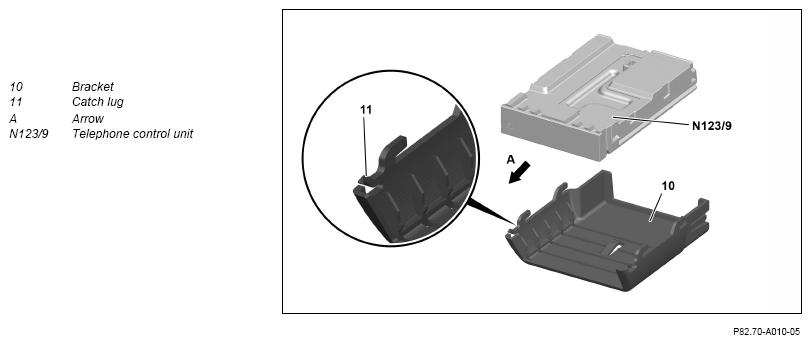

		Press catch tabs (11) on both sides downwards. Remove bracket (10) with telephone control unit (N123/9) in direction of arrow (A).
4	Remove cover below instrument panel at right.		AR68.10-P-1520LF
5	Pull off rubber plugs at screws (3) and remove	.

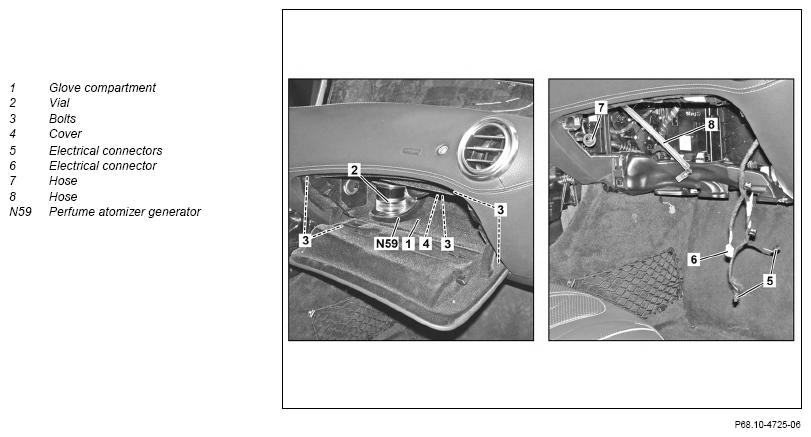

6	Unclip cover (4) in glove compartment (1) and remove.	Mounting wedge	Fig 1
7	Remove screw/bolts (3).
8	Pull out glove compartment (1) from instrument panel basic carrier until electrical connectors (5, 6) can be accessed.
9	Release electrical connections (5) and disconnect.
10	Release and disconnect electrical connector (6).	Model 217 with code P21 (Air quality package)
11	Remove hose (7) of glove compartment ventilation.
12	Disconnect hose (8) from fragrance system generator connection (N59).	Model 217 with code P21 (Air quality package)
13	Remove glove compartment (1).
14	Install in the reverse order.
15	Perform function test.

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
