Remove/Install Panoramic Sliding Roof Frame - AR77.21-P-0801S
Model 223
with code 413 (Panoramic sliding sunroof/glass roof)
| Notice | Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove rear fixed element of panoramic sliding sunroof. | AR77.21-P-0802S | |
| 2 | Remove front roller sunblind for panoramic sliding sunroof. | AR77.21-P-0207S | |

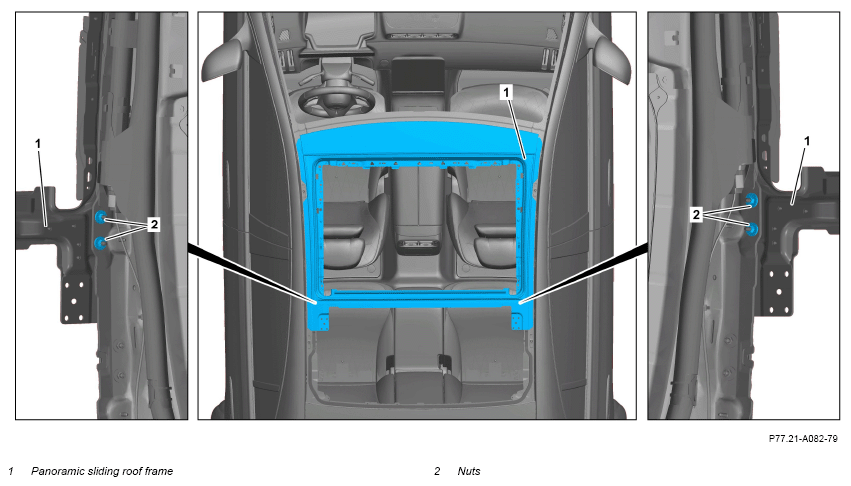

| 3 | Remove nuts (2). | ||
| 4 | Mask off adjacent paint surfaces with fabric tape. | Adhesive fabric tape | *BR00.45-Z-1062-02A |
| 5 | Cover vehicle interior with suitable means. | ||
| Risk of injury due to snapping or warming up of cutting wire and due to splinters when cutting out glued panoramic roofs | Wear cut-proof gloves and safety glasses. | AS77.21-Z-0002-01A | |
| 6 | Cut out panoramic sliding sunroof frame (1) and remove. | AR77.21-P-0801-01S | |
| Fig 2 | |||
| 7 | Prepare body flange on panoramic sliding sunroof frame (1) for installation. | AR77.21-P-0801-03S | |
| Install | |||
| 8 | Place roof lining in vehicle. | ||
| 9 | Install windshield. | AR67.10-P-1700S | |
| Model 223 with code 413 (Panoramic sliding sunroof/glass roof) except code Z07 (B7 armoring on special protection version) |
|||
| 10 | Prepare panoramic sliding sunroof frame (1) for installation. | AR77.21-P-0801-02S | |
| *BE67.10-P-1001-01E | |||
| Adhesive fabric tape | *BR00.45-Z-1062-02A | ||
| Fig 1 | |||
| 11 | Apply adhesive material for panoramic sliding sunroof frame (1). | AR77.21-P-0801-04S | |
| 000 588 02 72 00 Sealing and corrosion protection gun | WS97.00-P-0003B | ||
| Fig 3 | |||
| 12 | Install panoramic sliding sunroof frame (1). | AR77.21-P-0801-05S | |
Do not move vehicle for at least 10 h after gluing in the panoramic sliding sunroof frame (1). The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured. |
|||
| *BA77.21-P-1004-01E | |||
| 13 | Remove weights for putting load on the panoramic sliding sunroof frame (1). | Do not remove weights before reference adhesive bead is completely cured. The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured. |
|
| 14 | Install front roller sunblind for panoramic sliding roof. | AR77.21-P-0207S | |
| 15 | Install rear fixed element of panoramic sliding sunroof. | AR77.21-P-0802S | |
| 16 | Remove masking tape residues. | ||
| 17 | Install detachable parts in area of windshield. | AR67.10-P-1700S | |
| Model 223 with code 413 (Panoramic sliding sunroof/glass roof) except code Z07 (B7 armoring on special protection version) |
|||
| Finishing activity | |||
| 18 | Normalize panoramic sliding sunroof with diagnostic system and perform teach-in run for automatic reversing function. | ||
| AD00.00-P-2000-06FR |
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD
| Number | Designation | Model 223 except code Z07 (B7 armoring on special protection version) | Model 223 with code Z07 (B7 armoring on special protection version) | ||
|---|---|---|---|---|---|
| BE67.10-P-1001-01E | Distance between top edge of window and front edge of roof | Dimension "A" | mm | 3, 5 (±1, 5) | 3, 5 (±1, 5) |
| Picture | AR67.10-P-1000-09S | - | |||
PANORAMIC ROOF
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA77.21-P-1004-01E | Nut, panoramic sliding roof frame to side wall | Nm | 14 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1062-02A | Adhesive fabric tape | A 007 989 28 85 |
