Remove/Install Front Roller Sunblind For Panoramic Sliding Roof - AR77.21-P-0207S

Model 223

with code 413 (Panoramic sliding sunroof/glass roof)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove roller sunblind guide rails (1).		AR77.21-P-0231S

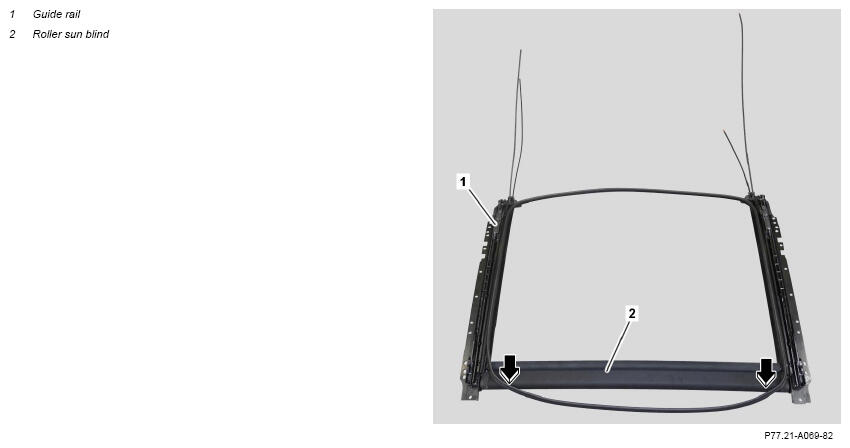

2	Unclip roller sunblind (2) and pull out of guide rails (1) with drive cable (arrow).	Lubricate drive cables with synthetic grease during assembly.
		Synthetic grease, sliding roof 500 g, DB supply specification 6827.60	*BR00.45-Z-1004-06A
3	Install in the reverse order.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1004-06A	Synthetic grease, sliding roof 500 g, DB supply specification 6827.60	A 001 989 46 51
