Prepare Panoramic Sliding Roof Frame For Installation - AR77.21-P-0801-02S
Model 223
with code 413 (Panoramic sliding sunroof/glass roof)
| Notice | Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD
| Number | Designation | Model 223 except code Z07 (B7 armoring on special protection version) | Model 223 with code Z07 (B7 armoring on special protection version) | ||
|---|---|---|---|---|---|
| BE67.10-P-1001-01E | Distance between top edge of window and front edge of roof | Dimension "A" | mm | 3, 5 (±1, 5) | 3, 5 (±1, 5) |
| Picture | AR67.10-P-1000-09S | - | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1062-02A | Adhesive fabric tape | A 007 989 28 85 |
Bonding surfaces (2) must be free from dust, oil, grease, wax, dirt residues, and other adhesive components.
Otherwise, there may be adhesion problems.
Only use the adhesive kit specified in the XENTRY Portal parts information.

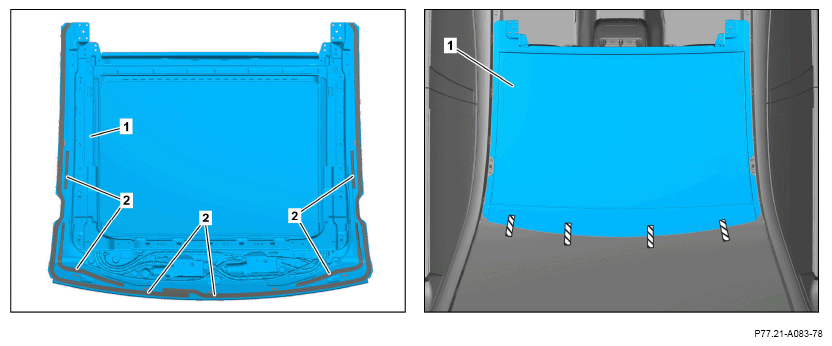

- Attach cup suction tools to outside of panoramic sliding sunroof frame (1) and set down panoramic sliding sunroof frame (1) on a suitable base with the inside facing upwards.
Aid of helper required.
- Clean bonding surfaces (2) on panoramic sliding roof frame (1).
- Mount panoramic sliding sunroof frame (1) on body and use
feeler gauge to align distance between windshield upper edge and front edge of fixed glass section.
- The Affix tape strips as shown and cut through at outer edges of panoramic sliding sunroof frame (1).
- Place panoramic sliding sunroof frame (1) onto suitable base with inside pointing upward.
- Apply primer to bonding surfaces (2) at panoramic sliding sunroof frame (1).
The primer must flash off for at least 10 min.
Otherwise the adhesive effect of the adhesive material will be impaired.
