Connect/Disconnect Diagnostic Unit - AD00.00-P-2000-06FR

Model 192

Model 206

Model 214

Model 223

Model 232

Model 236

Model 254

Model 257

Model 290

Model 293

Model 294

Model 295

Model 296

Model 297

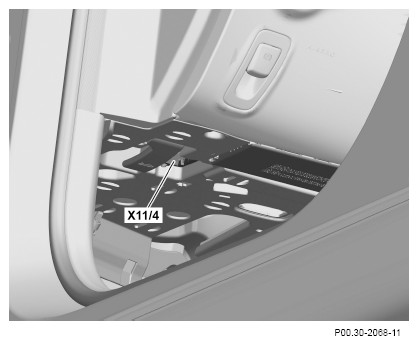

1. Connect diagnostic device to diagnostics connection (X11/4) in driver's footwell.

   Even after disconnecting the starter battery, the vehicle is still powered by the diagnostic device. When working on a deenergized vehicle, the diagnostic device must be disconnected from the vehicle.

2. Start XENTRY.
3. Select the model series in the menu via the path Selection → Brand → Product group → Vehicle.

   The work procedures are menu-assisted.

4. Disconnect diagnostic unit.
