Install Panoramic Sliding Roof Frame - AR77.21-P-0801-05S

Model 223

with code 413 (Panoramic sliding sunroof/glass roof)

	Notes on removal/installation of bonded elements of panoramic roof		AH77.21-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A

PANORAMIC ROOF

Number	Designation		Model 223
BA77.21-P-1004-01E	Nut, panoramic sliding roof frame to side wall	Nm	14

Courtesy of MERCEDES-BENZ USA

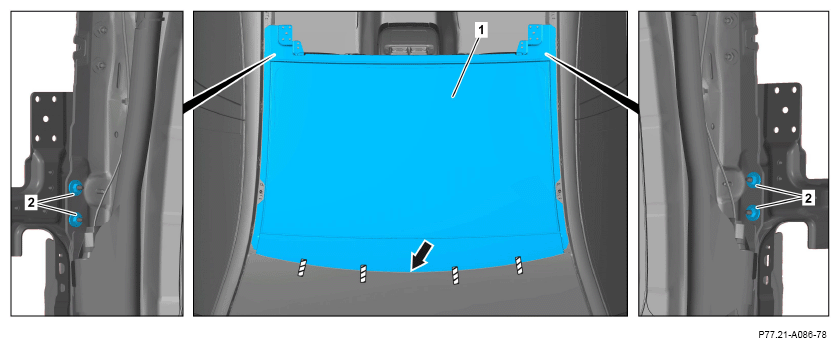

Position panoramic sliding sunroof frame (1), carefully mount on adhesive beads and gently press on
Two helpers are required.

Observe installation position of windshield seal (arrow).
Align panoramic sliding sunroof frame (1) with strips of adhesive tape.
Do not move vehicle for at least 10 h after gluing in the panoramic sliding sunroof frame (1).

The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.
Place loads on panoramic sliding sunroof frame (1) during curing time of adhesive material.
Use flat weights, e. g. sandbags.

Otherwise the panoramic sliding roof frame (1) can be damaged.
Install nuts (2) .
Carefully remove cup suction tool.
