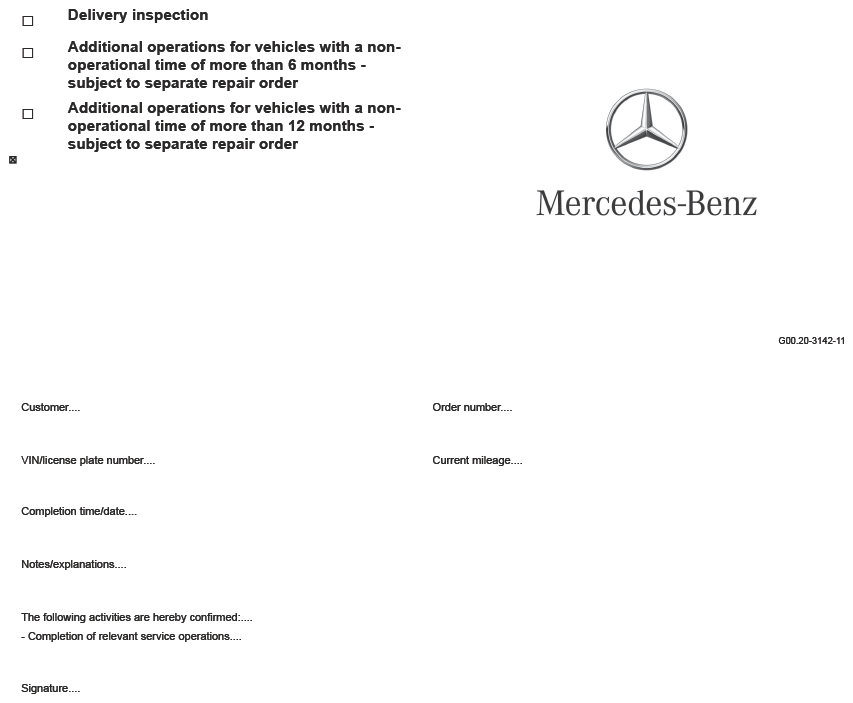

Perform Delivery And Hand-Over Inspection - AP00.20-D-1100A

Model 415, 420, 447, 448, 470, 471, 900, 906, 907, 909, 910

Courtesy of MERCEDES-BENZ USA

D	Z6	Z12		Input condition not OK:	ⓧ
Completed
[X]	[X]	[X]
			General
□			Check vehicle for any unresolved service measures.	To be performed by the service advisor.  If there are any unresolved service measures, ↓ conduct unresolved service measures. Subject to separate repair order.	◦
□			Read out radio code from VeDoc.	Model 415 To be performed by the service advisor.  Enter radio code into form and hand over to Sales or the customer.		OF82.60-Z-3000-04KCV
□			Product instructions: Print out form.	To be performed by the service advisor.
				Print the form and place into the vehicle, or hand over to Sales.		OF00.00-D-3000-11A
□			Confirm delivery inspection certificate in maintenance booklet or Digital Service Booklet (DSB).	To be performed by the service advisor.  Completely fill out and confirm verification in maintenance booklet or DSB. If this is not completed, the inspection is considered not to have been carried out and may lead to rejection of warranty claims depending on the nature of the damage.
			Status and function check (vehicle cleaned)
□			Engine: Check oil level.	If vehicle was parked for less than 12 months. If necessary, ↓ Correct oil level. Subject to separate repair order.
□			Engine cooling system: Check fluid level.
				Model 415, 420, 447, 448, 470, 471, 906, 907, 910		AP20.30-S-2049U
				Model 900		AP20.00-D-2011H
□			48 volt on-board electrical system coolant circuit: Check fluid level.	Model 909 If necessary, ↓ Correct fluid level. Subject to separate repair order.		AP20.00-D-2010R
				Model 447 with engine 254 If necessary, ↓		AP20.00-S-2015EJ
				Correct fluid level. Subject to separate repair order.
□			Heating system: Check fluid level.	Model 420 with engine 780 If necessary, ↓ Correct fluid level. Subject to separate repair order.		AP83.20-S-8313HV
□			Windshield washer system: Check/correct fluid level.	If necessary, ↓ Correct fluid level. Subject to separate repair order.
□			Remove towing eye and install cover.	Model 447, 448 Secure towing eye on vehicle tool kit using existing tensioning strap, so that squeaking or clattering noise doe snot occur.
□			Remove protective films and transport labels.
□			Vehicle interior, equipment, trim, seats  Remove protective foils from vehicle interior.
□			Read out map data release from navigation system, check update, and then update and enter data into table.	If necessary, ↓ update map data. Model 447 with code E6H (MBUX Multimedia system, High) and code E1E (Navigation) or with code E6M (MBUX multimedia system, Mid) and code E1E (Navigation) or with code EA2 (COMAND Online with 6-disk DVD changer) or with code EJ9 (COMAND Online), model 448 with code EA2 (COMAND Online with 6-disk DVD changer), model 470, 471 with code EJ9 (COMAND Online), model 907, 910 with code E1E (Navigation) and with code E3M (MBUX multimedia system with 7-inch touchscreen) or with code E4M (MBUX multimedia system with 10.25-inch touchscreen), model 907 with code E1E (Navigation) and with code E7M (MBUX multimedia system)	◦	AP82.85-S-8252E
□			Confirm vehicle handover in display.	Service Information: Update map data version for COMAND navigation system as part of delivery and handover inspection Model 447 with code EA2 (COMAND Online with DVD changer, 6-disk) or with code EJ9 (COMAND Online) and except code EX9 (3 years' free-of-charge map updates), model 470 with code EJ9 (COMAND Online) except code EX9 (3 years' free-of-charge map updates) Subject to separate repair order.		SI82.85-S-0048A
				Model 420 with code C6L (Multifunction steering wheel)		AP00.20-S-0041-01HB
				Model 420 except code C6L (Multifunction steering wheel)		AP00.20-S-0041-01HC
				Model 447.6/7 except code XM7 (MOPF II) Vehicle with steering wheel buttons Model 447.6/7 with code XM7 (MOPF II)		AP00.20-S-0041-01EB
				Model 447.6/7 except code XM7 (MOPF II) Vehicle without steering wheel buttons		AP00.20-S-0041-01EA
				Model 447.8 except code XM7 (MOPF II)		AP00.20-S-0041-01E
				Model 447.8 with code XM7 (MOPF II)		AP00.20-S-0041-01EH
				Model 470.252/270, 471.252		AP00.20-S-0041-01P
				Model 900, 906 with code CL4 (Multifunction steering wheel with trip computer)		AP00.20-D-0041-01H
				Model 900, 906 except code CL4 (Multifunction steering wheel with trip computer) Model 909		AP00.20-D-0041-01HA
				Model 907, 910 with code C6L (Multifunction steering wheel)		AP00.20-D-0041-01TS
				Model 907, 910 except code C6L (Multifunction steering wheel)		AP00.20-D-0041-01TSC
□			Check time setting of clock.
				If necessary,
				Correct time setting of clock.
□			Check horn for proper operation.		◦
□			Check warning and function indicator lamps in instrument cluster.		◦
				Model 415, 420, 447, 448, 470, 471, 906, 907, 910		AP54.30-S-5449UU
□			Install electrical fuse (15 A).	Model 900		AP54.00-D-5451-01H
				Model 415 with code E1M (Navigation system, including radio) Model 415 with code J67 (Anti-theft alarm system)		SI54.15-S-0007A
□			Deactivate transport mode.	Model 415		AR54.00-S-0001CV
				Model 420		AR54.00-S-0001H
				Model 447 with code XM0 (Facelift), model 907, 910		AR54.00-D-0001TS
□			Check state of charge of high-voltage battery on display of additional instruments.	Model 470, 471 Model 420 with engine 780.6 Model 447 with engine 780.7 Model 907 with engine 780.6 Model 910 with engine 780.7 Do not disconnect 12 V battery ground line. Otherwise, the high-voltage battery is not balanced, and this can lead to damage to the high-voltage battery.		AR54.00-S-0001P
				Model 420 with engine 780.6 Model 447 with engine 780.7 Model 910 with engine 780.7 Specified value for state of charge of high-voltage battery: > 80%. Model 907 with engine 780.6 Specified value for state of charge of high-voltage battery: 100%. Full charge required for SOC calibration. Enter state of charge of high-voltage battery here: If the state of charge of the high-voltage battery is below the specified value, ↓ Charge high-voltage battery completely.
			Wheels, tires
□			Check for tight fit.	Retighten all wheel bolts/nuts with the prescribed tightening torque. Do not undo wheel bolts/nuts. Check spare wheel for tight seating.	◦	AP40.10-D-4070-01A
□			Check tire pressure and enter measurement values in table.	Model 415	◦	AP40.15-S-4060A
				Model 420		AP40.15-S-4060H
				Model 447, 448		AP40.15-S-4060E
				Model 470, 471		AP40.15-S-4060P
				Model 900, 906		AP40.15-D-4060-01E
				Model 909		AP40.15-D-4060-01F
□			Attach hub caps.	Model 907, 910 If tire pressure wrong, ↓ correct tire pressure and enter tire pressure in table. On vehicles with steel rims.		AP40.15-D-4060TS
			Additional operations: Transport lock
□			Remove battery disconnect switch from seat console.	Model 447 with code ED6 (Taximeter in inside rearview mirror), or with code Z65 (Marine transport, preparation) Subject to separate repair order.		AR54.10-S-0039E
			Additional operations: Camper van equipment
□			Check pop-up roof and equipment for damage and function, charge batteries.	Model 447.7 with code ZH6 (Marco Polo ACTIVITY); Model 447.8 with code Z93 (Marco Polo HORIZON); Model 447.8 with code ZK7 (Marco Polo equipment line)	◦	AP00.20-S-4000E
□			Install electrical fuse of kitchen module auxiliary battery supply (F60/6) (50 A).	Model 447.813 13 as of 327562 with code ZK7 (Equipment line MARCO POLO) as of equipment number 288040G04498
				Service Information: Electrical fuses The fuse box is located underneath the driver's seat, the electrical fuse in the glove compartment housing.		SI54.15-S-0007B
□			Miscellaneous  Enter any other faults into table.
			Additional operations for non-operational time of more than 6 months - subject to separate repair order
	□		Check brake disks for corrosion.	If a vehicle is not driven for an extended period of time, a thin layer of rust may form on the friction surfaces of the brake disks. This layer of rust has no effect on the working life of the brake disk and is usually removed when the brakes are applied. If brake disks are corroded, ↓ Perform a test drive and apply firm braking pressure to brake disks.	◦
	□		Renew brake fluid.
				Model 415, 420		AP42.50-S-4280CV
				Model 447, 448		AP42.50-S-4280E
				Model 470, 471		AP42.50-S-4280P
				Model 900, 906		AP42.50-D-4280A
				Model 909		AP42.50-D-4280R
				Model 907, 910		AP42.00-D-4280TS
			Additional operations for non-operational time of more than 12 months - subject to separate
		□	Engine: Change oil and oil filter.
				Model 415 with engine 200		AP18.00-S-0101CVA
				Model 415 with engine 607		AP18.00-S-0101CV
				Model 415 with engine 608		AP18.00-S-0101CVC
				Model 420 with engine 200		AP18.00-S-0101HB
				Model 420 with engine 608		AP18.00-S-0101HC
				Model 447, 448 with engine 274		AP18.00-S-0101EA
				Model 447, 448 with engine 254		AP18.00-S-0101EJ
				Model 447 with engine 622		AP18.00-S-0101EF
				Model 447 with engine 651		AP18.00-S-0101E
				Model 447 with engine 654		AP18.00-S-0101EG
				Model 470, 471 with engine 699		AP18.00-S-0101P
				Model 470, 471 with engine 642		AP18.00-S-0101PS
				Model 900.6 with engine 651.9 Model 906.1/2/6/7 with engine 642.8/9, 646.9		AP18.00-D-0101H
				Model 906.1/2/6/7 with engine 651.9
				Model 909 with engine 646		AP18.00-D-0101R
				Model 907 with engine 642; model 907, 910 with engine 651		AP18.00-D-0101TS
				Model 907 with engine 274		AP18.00-D-0101TSC
		□	Replace AdBlue®.	Model 907, 910 with engine 654		AP18.00-D-0101TSD
				Model 415 with engine 608		AR49.20-S-2015CE
				Model 420 with engine 608		AR49.20-S-2015HC
				MODEL 447 with ENGINE 622, 651		AR14.40-S-2014-02E
				Model 447 with engine 654		AR49.20-S-2015EA
				Model 470 with engine 642, 699		AR14.40-S-0012-01PD
				Model 906 with engine 642, 651		AR14.40-D-2014-02A
				Model 907 with engine 642 Model 907, 910 with engine 651 Model 907.1/2/6/7, 910 with engine 654.9		AR49.20-D-2014-01TS
		□	Check brake disks for corrosion.	If a vehicle is not driven for an extended period of time, a thin layer of rust may form on the friction surfaces of the brake disks. This layer of rust has no effect on the working life of the brake disk and is usually removed when the brakes are applied. If brake disks are corroded, ↓ Perform a test drive and apply firm braking pressure to brake disks.	◦
		□	Renew brake fluid.
				Model 415, 420		AP42.50-S-4280CV
				Model 447, 448		AP42.50-S-4280E
				Model 470, 471		AP42.50-S-4280P
				Model 900, 906		AP42.50-D-4280A
				Model 909		AP42.50-D-4280R
				Model 907, 910		AP42.00-D-4280TS
			Chassis, frame, body, front end, structure, platform (decision on scope through MPC) -subject to separate repair order
□			Check condition.	Ignore any body shell faults that do not adversely affect the overall appearance.	◦
□			Check paint zone 1 (immediate field of vision).	This zone must have a proper and clean paintwork surface. Ignore small individual dust or dirt particle inclusions that are more than 30 cm apart and which do not affect the overall appearance.	◦
□			Check paint zone 2 (not immediate field of vision).	Ignore any small paintwork faults, slightly uneven areas and small individual runs without drip formation.	◦
□			Check for paint damage.	May not occur in any visible areas.	◦
□			Check for any paint runs.	Individual paint runs in the load compartment textured paint are permitted. The run structure (orange peel) is not a quality problem.	◦
□			Check for corrosion.	There must be no outer visible signs of corrosion on folds and overlaps on the entire body and frame. Pay greater attention to street dust and	◦
				industrial fallout (rust film particles). If the paint surface exhibits corresponding features, ↓ Clean paint surface using suitable care products. Subject to separate repair order.
