Correct Tire Pressure, Including Spare Wheel - AP40.15-S-4060E
Model 447, 448
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Information on tires/rims | AH40.10-P-9411-01A | ||
| Check | |||

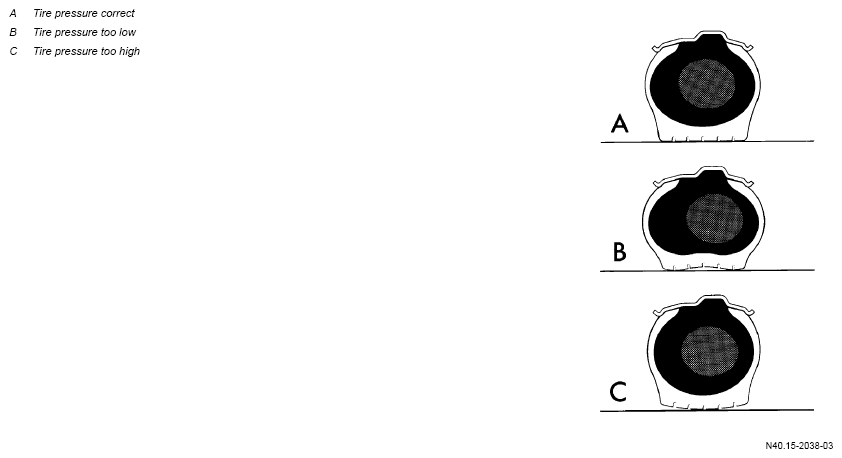

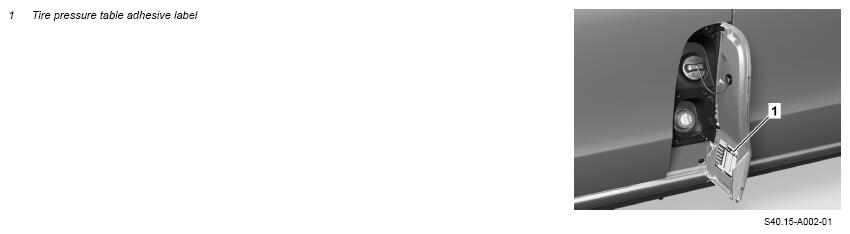

| 1 | Check and correct tire pressure. | For tire pressures see the tire pressure table in the operators manual or on (1) in the fuel filler flap |
|
| 2 | Remove spare wheel. | With CODE RR6 (Spare wheel with vehicle jack) | |
| 3 | Check and correct tire pressure of spare wheel. | Model 447, 448 with code RR6 (Spare tire with jack) Model 447, 448 with code RR8 (Spare wheel holder, inside on side wall) |
|
| 4 | Install spare wheel. | With CODE RR6 (Spare wheel with vehicle jack) | |
| 5 | Enter set tire pressures in maintenance sheet. | ||
| 6 | Restart tire pressure monitor (TPM). | With CODE RY2 (Tire pressure monitor) |
