Confirm Vehicle Handover On Display - AP00.20-S-0041-01EB

Model 447.6/7

Vehicle with steering wheel buttons

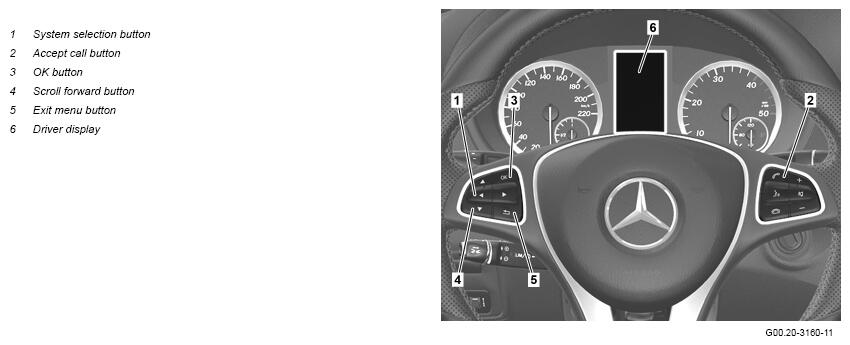

Steering wheel shown up to 14.02.2024

Courtesy of MERCEDES-BENZ USA

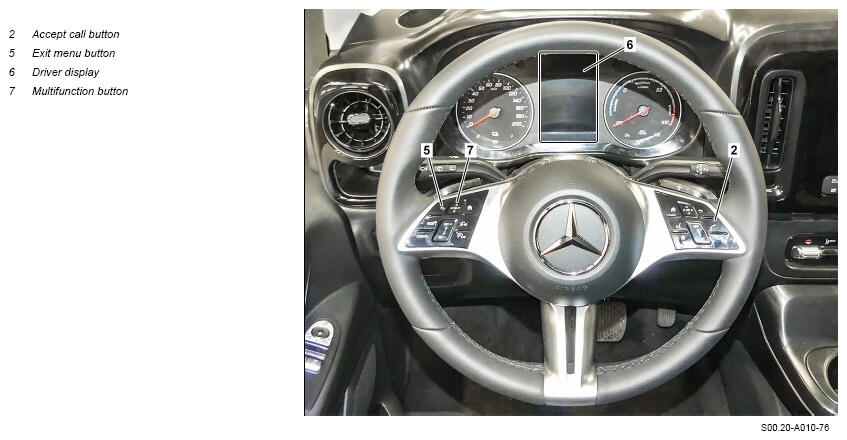

Steering wheel shown as of 15.02.2024

Courtesy of MERCEDES-BENZ USA

1. 1 Close doors.
2. 2.1 Model 447.6/7 with engine 274, 622, 651, 654 except code MJ7 (ECO start/stop function) except code MJ8 (ECO start/stop function)

   Turn key in ignition lock into position "1".

   The standard display (trip distance/total distance) must appear on the driver display (6), if necessary, press the scroll forward button (4) repeatedly.

3. 2.2 Model 447.6/7 with engine 274, 622, 651, 654 with code MJ7 (ECO start/stop function) or with code MJ8 (ECO start/stop function), model 447.6/7 with engine 780

   Move vehicle to drive range 1.

   To do so, press the start/stop button.

   The standard display (trip distance/total distance) must appear on the driver display (6), if necessary, swipe multifunction button (7) repeatedly.

4. 3.1 Model 447.6/7 up to 14.02.24

   Press System selection button (1) repeatedly until the "Trip" menu item is highlighted on the driver display (6).

   "Trip" remains selected for approx. 5 s. Operation step 4 must be carried out within this time.

5. 3.2 Model 447.6/7 as of 15.02.24

   Press multifunction button (7) repeatedly until "Trip" menu item is highlighted in the driver display (6).

   "Trip" remains selected for approx. 5 s. Operation step 4 must be carried out within this time.

6. 4.1 Model 447.6/7 up to 14.02.24

   First press and hold down "Accept call" button (2) and then, within 1 second, also press and hold down OK button (3) for approx. 5 seconds.

   The driver display (6) shows the Workshop menu with the "Vehicle data", "Roller test" and "ASSYST PLUS" tabs.

7. 4.2 Model 447.6/7 as of 15.02.24

   First press and hold down Accept call button (2) and then, within 1 s, also press and hold down multifunction button (7) for approx. 5 s.

   The driver display (6) shows the Workshop menu with the "Vehicle data", "Roller test" and "ASSYST PLUS" tabs.

8. 5.1 Model 447.6/7 up to 14.02.24

   Press the scroll forward button (4) repeatedly until "ASSYST PLUS" is highlighted and confirm selection with the OK button (3).

   The "Service data", "Full service", "Vehicle handover" tabs appear on the driver display (6).

9. 5.2 Model 447.6/7 as of 15.02.24

   Swipe multifunction button (7) repeatedly until "ASSYST PLUS" is highlighted and confirm selection with multifunction button (7).

   The "Service data", "Full service", "Vehicle handover" tabs appear on the driver display (6).

10. 6.1 Model 447.6/7 up to 14.02.24

    Press the scroll forward button (4) repeatedly until "Vehicle handover" is highlighted and confirm selection with the OK button (3).

    "Vehicle handed over?" is shown on the driver display (6).

11. 6.2 Model 447.6/7 as of 15.02.24

    Press multifunction button (7) repeatedly until "Vehicle handover" is highlighted and confirm selection with multifunction button (7).

    "Vehicle handed over?" is shown on the driver display (6).

12. 7.1 Model 447.6/7 up to 14.02.24

    Press scroll forward button (4) repeatedly until "Yes" is highlighted, and confirm selection with OK button (3).

13. 7.2 Model 447.6/7 as of 15.02.24

    Swipe multifunction button (7) repeatedly until "Yes" is highlighted and confirm selection with multifunction button (7).

14. 8 Press Exit menu button (5) repeatedly until standard display (trip distance/total distance) appears in the driver display (6).
15. 9.1 Model 447.6/7 with engine 274, 622, 651, 654 except code MJ7 (ECO start/stop function) except code MJ8 (ECO start/stop function)

    Turn key in ignition lock into position "0".

16. 9.2 Model 447.6/7 with engine 274, 622, 651, 654 with code MJ7 (ECO start/stop function) or with code MJ8 (ECO start/stop function), model 447.6/7 with engine 780

    Move vehicle to drive range 0.

    To do so, press the start/stop button.
