Deactivate Transport Mode Prior To Vehicle Delivery - AR54.00-D-0001TS
Model 447
With Code XM0 (Facelift)
Model 907, 910

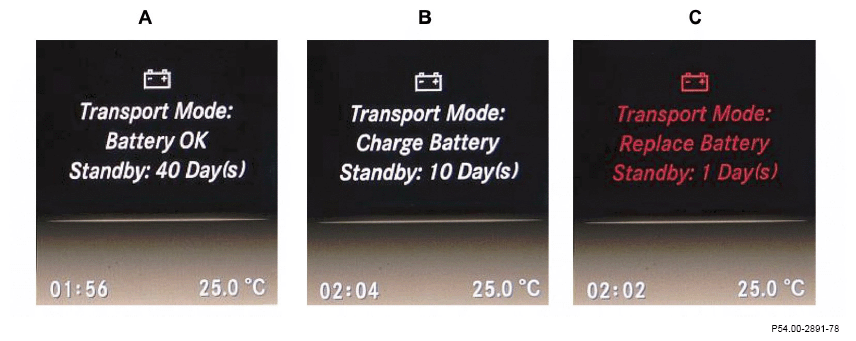

Shown here are the different system states in the instrument cluster with an active transport mode (Display always in English)
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | Model 447 with engine 780 with code XM0 (Facelift) Model 907, 910 with engine 780 |
AH68.00-D-0001-01KOS |
| Check | |||
| 1 | Switch on ignition. | Make sure that the instrument cluster shows the "Battery OK" (A) message before the deactivation. If a "Charge Battery" (B) message is shown on the instrument cluster, ↓ Charge on-board electrical system battery. Model 447 with code XM0 (Facelift) |
AR54.10-S-1130E |
| Model 907, 910 If a "Replace Battery" (C) message is shown on the instrument cluster, ↓ replace on-board electrical system battery. |
AR54.10-D-1130TS | ||
| Model 447 with code XM0 (Facelift) |
AR54.10-S-0005E | ||
| Model 907 | AR54.10-D-0009TSR | ||
| Model 910 | AR54.10-D-0009TSF | ||
| 2 | Document the residual service life shown on the instrument cluster. | ||
| AP00.20-D-1100A | |||
| Deactivation | |||
| 3 | Deactivate transport mode using button combination. | AR54.00-D-0001-01TS | |
| 4 | Document deactivation of transport mode. | ||
| AP00.20-D-1100A |
