Remove Battery Disconnect Switch - AR54.10-S-0039E
Model 447
With Code ED6 (Taximeter in rear-view mirror)
With Code Z65 (Packing for sea transport)
Shown on Model 447.8
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove | |||
| 1.1 | Unclip cover (1) at outside on front passenger seat console from above and take off | MODEL 447.8 |

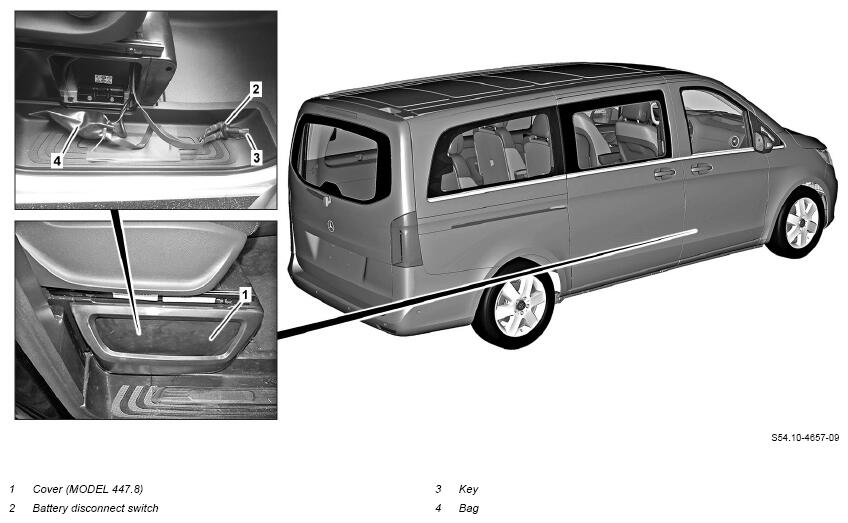

Fig 1 |
| 1.2 | Remove cover at outside on front passenger seat console | MODEL 447.6/7 | |
| 2 | Remove wiring harness with battery disconnect switch (2) and bag (4) from seat console | Do not pull on the ground line (vehicle) (7). This prevents damage to battery sensor (B95). |
|
| 3 | Switch off battery disconnect switch (2) and remove key (3) | ||
| 4 | Open cable tie on bag (4) and remove bag (4) | ||
| 5 | Disconnect ground line (5) from on-board electrical system battery (G1) | ||
| 6 | Loosen clamp screw (6) on ground line (5) and remove ground line (5) | ||
| 7 | Connect ground line (7) to on-board electrical system battery (G1) | Do not pull on the ground line (7). This prevents damage to battery sensor (B95). |
*BA54.10-Z-1001-01KOF |
| 8 | Set time | ||
| 9 | Install cover (1) on passenger-side seat console |
BATTERY
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA54.10-Z-1001-01KOF | Bolt, ground line to negative terminal for on-board electrical system battery/additional battery | Nm | 5 |
