Exterior Lights Function - GF82.10-S-0003TRF
Model 447
with code XM0 (Facelift)
except code XM7 (MOPF II)

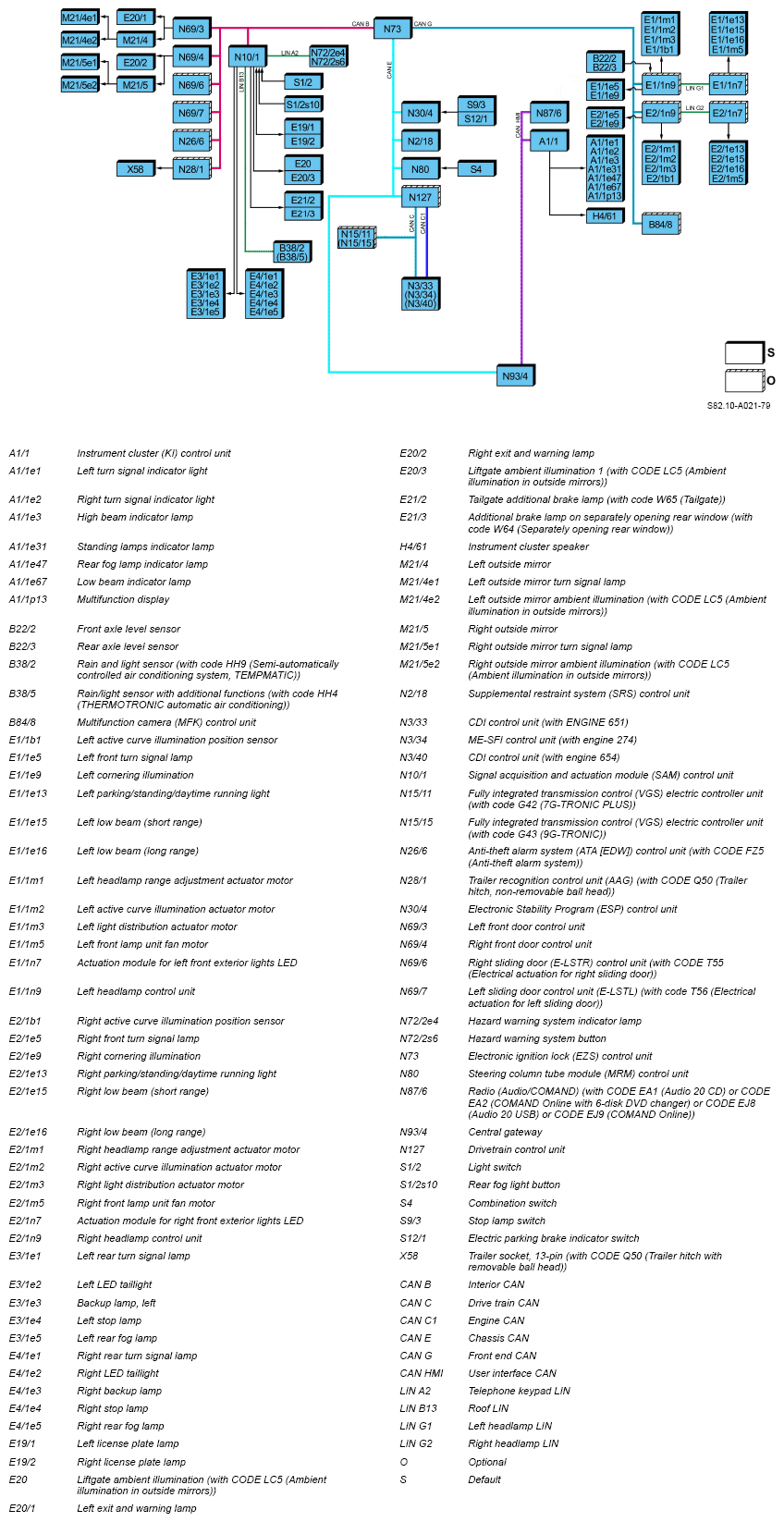

Illustration shows Model 447.8 with CODE LG2 (LED Intelligent Light System)

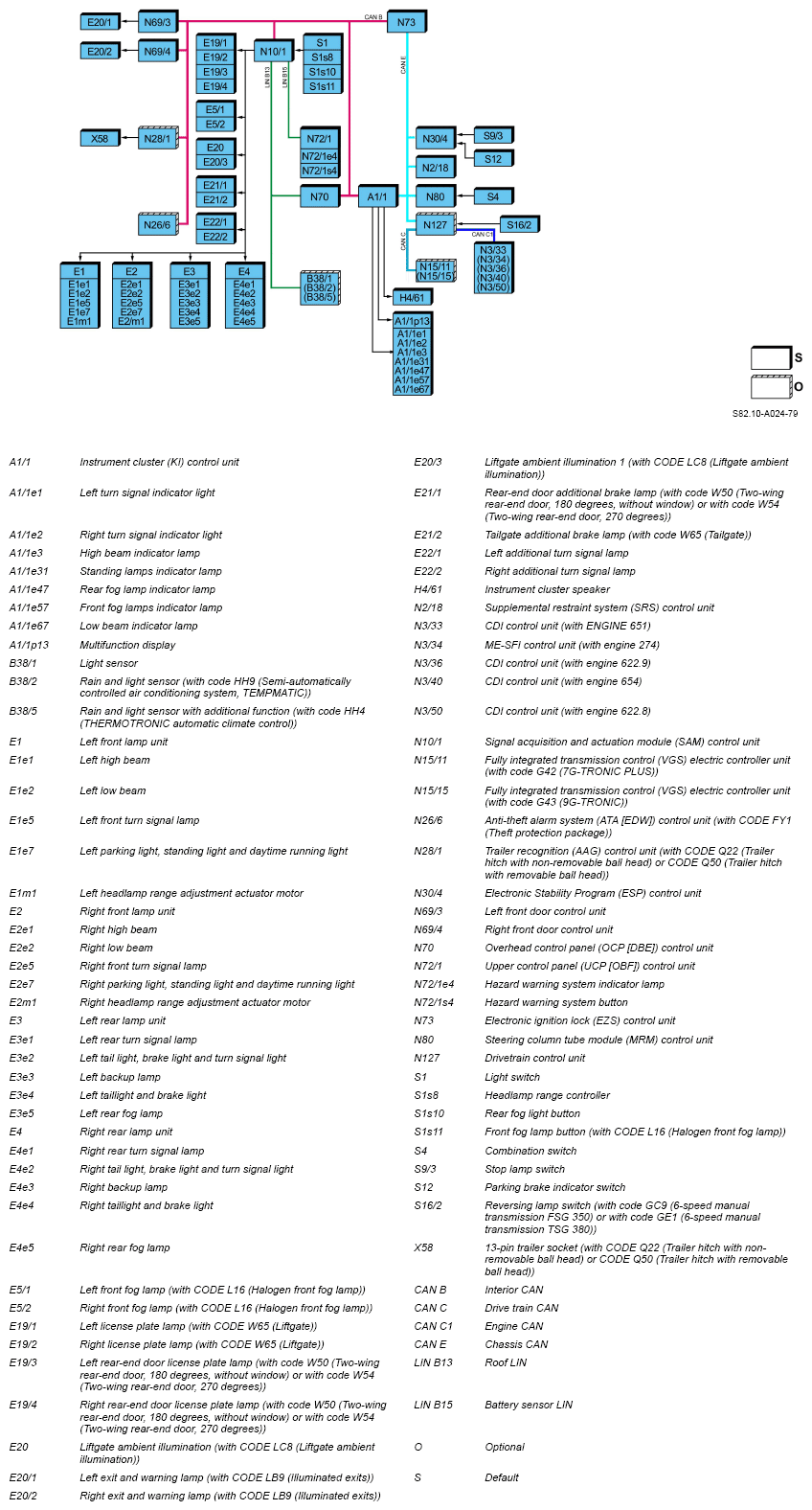

Shown on model 447.8 without code LG2 (LED Intelligent Light System

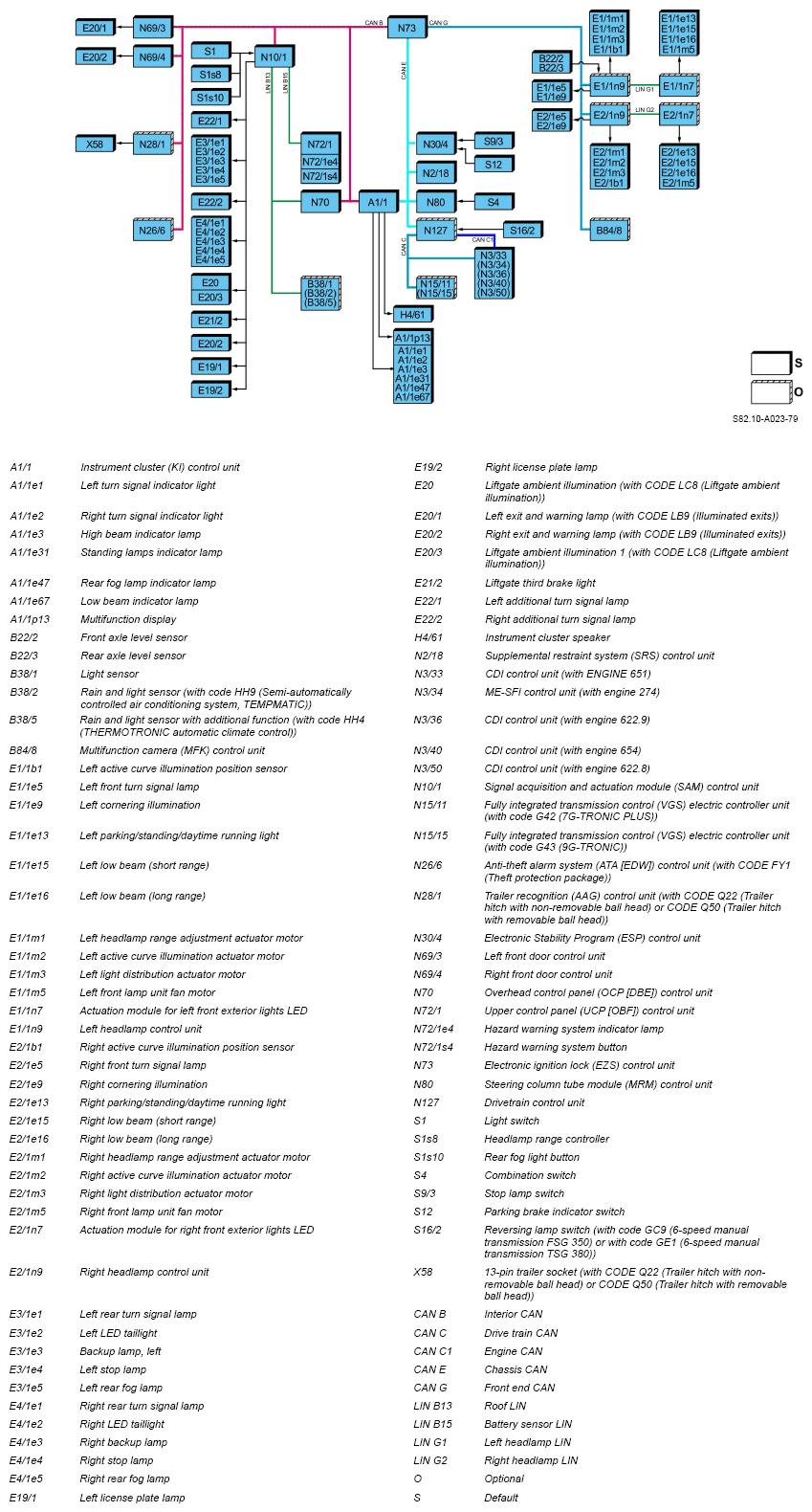

Shown on model 447.6/7 with CODE LG2 (LED Intelligent Light System)

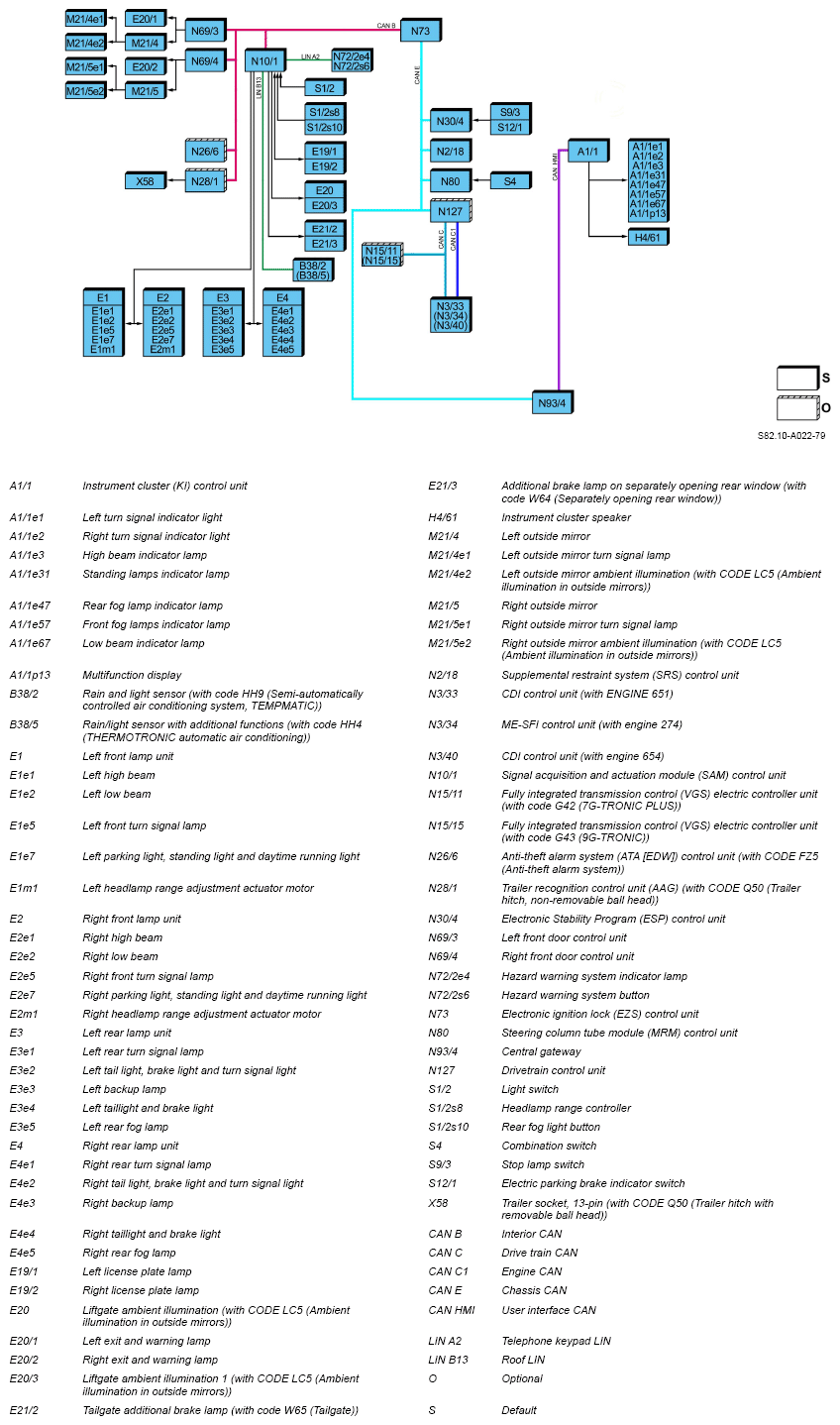

Shown on model 447.6/7 without CODE LG2 (LED Intelligent Light System)
Function requirements, general
- "exhaust stack 30 ON"
Exterior lights (ABL), general
The exterior lights control all the safety and comfort-relevant functions of the front, side and rear lights of the vehicle.
When the transport mode is active, only the basic functions of the exterior lights can be used. Functions such as the LED Intelligent Light System or Adaptive Highbeam Assist (with code LG2 (LED Intelligent Light System)) are deactivated during transport mode. Detailed information on the operating state of the transport mode is given in the separate function description "Energy management, function".
Function sequence for switching off the exterior lights
By switching off the exterior lights, the on-board electrical system load by the active standing or parking lights actuation is reduced.
Discharge of the on-board electrical system battery (G1) is reduced.
The low beam is already switched off with "terminal 15 OFF".
The standing lights may be switched on because the low beams have been manually switched on, because of the auto on/off driving lights or manually via the illumination switch. If the standing lights have been activated because of the manually activated low beams or the automatic driving lights, and the driver's door is then opened with the terminal status "terminal 15 ON", the standing lights are switched off.
As soon as the energy management detects that the starting capability of the engine is impaired, the standing light is switched off.
Vehicles with surround lighting
If the "Ambient illumination" function has been activated via the radio
(Audio/COMAND), it automatically switches itself on after the engine is turned off.
The standing lights remain on for the configured period from the point at which the last door or the liftgate was closed. The "Ambient illumination" function is described in detail in the separate document "Headlamp switch-off delay (SWA), function".
Front headlamp
A differentiation is made between the following versions of the front headlamp in accordance with the vehicle equipment:
- Halogen version front lamp units
(Without CODE LG2 (LED Intelligent Light System))
- Front LED lamp units
(With CODE LG2 (LED Intelligent Light System))
Further functions are described in separate documents:
- Standing/parking lights actuation function
- Standing lights actuation
- Lights on warning
- Parking lamp actuation
- Headlamp control function
- Low beam actuation
- High beam actuation (high beams, headlamp flasher)
- Daytime running lamps actuation
- Auto on/off driving lights (via rain/light sensor with additional functions, via wiper activities) (with CODE LG2 (LED Intelligent Light System))
- Headlamp range control
- Intelligent Light System, function (with CODE LG2 (LED Intelligent Light System))
- Cornering illumination
- Dynamic curve illumination
- Active light distribution (motorway lights, extended fog light function)
- Adaptive Highbeam Assist, function (with CODE LG2 (LED Intelligent Light System))
- Optical headlamp range control
- Automatic high beams
- High beam assist PLUS (with code LG8 (High beam assist PLUS))
- Front fog light actuation, function
- Turn signal light actuation function
- Turn signaling (left turn signal, right turn signal, one-touch turn signaling)
- Hazard warning flashing
- Brake lights actuation function
- Backup light actuation function
- Headlight switch off delay function
- Automatic headlamp on
- Locator lighting (AFB)
- Emergency light actuation function
| Headlamp control, function | GF82.10-S-2009TRF | ||
| Headlight switch off delay function | GF82.10-S-2011TRF | ||
| Turn signal indicator actuation, function | GF82.10-S-3008TRF | ||
| Brake light actuation, function | GF82.10-S-3010TRF | ||
| Backup lamp actuation, function | GF82.10-S-3011TRF | ||
| Emergency lamp control, function | GF82.10-S-3013TRF | ||
| Standing/parking lights actuation, function | GF82.10-S-3060TRF | ||
| Front fog light actuation, function | GF82.10-S-3070TRF | ||
| Function of Intelligent Light System | With CODE LG2 (LED Intelligent Light System) | GF82.10-S-3090TRF | |
| Function of Adaptive Highbeam Assist | With CODE LG2 (LED Intelligent Light System) | GF82.10-S-3091TRF | |
| Overview of exterior lights system components | GF82.10-S-9998TRF |
