Overview Of Exterior Lights System Components - GF82.10-S-9998TRF
Model 447
with code XM0 (Facelift)
except code XM7 (MOPF II)

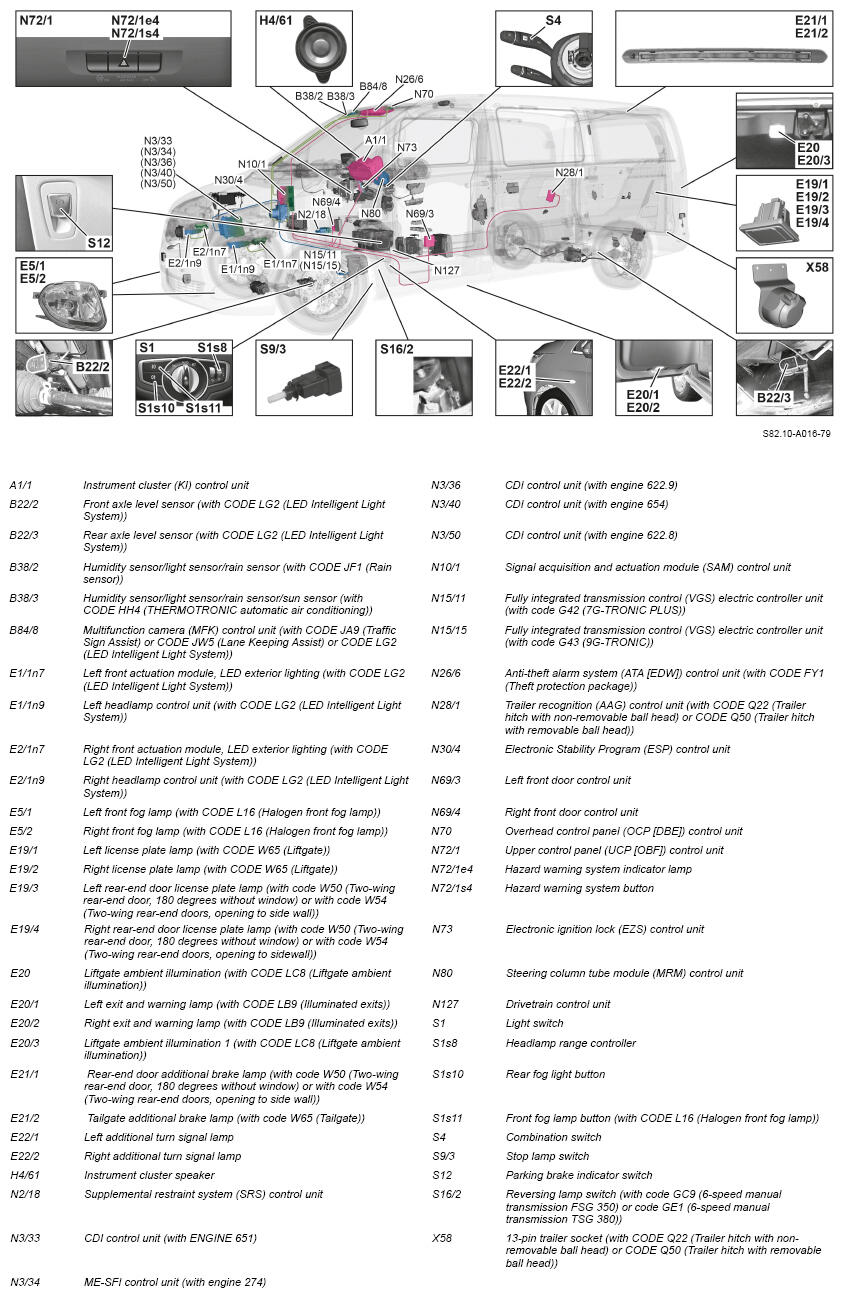

Shown on model 447.6/7

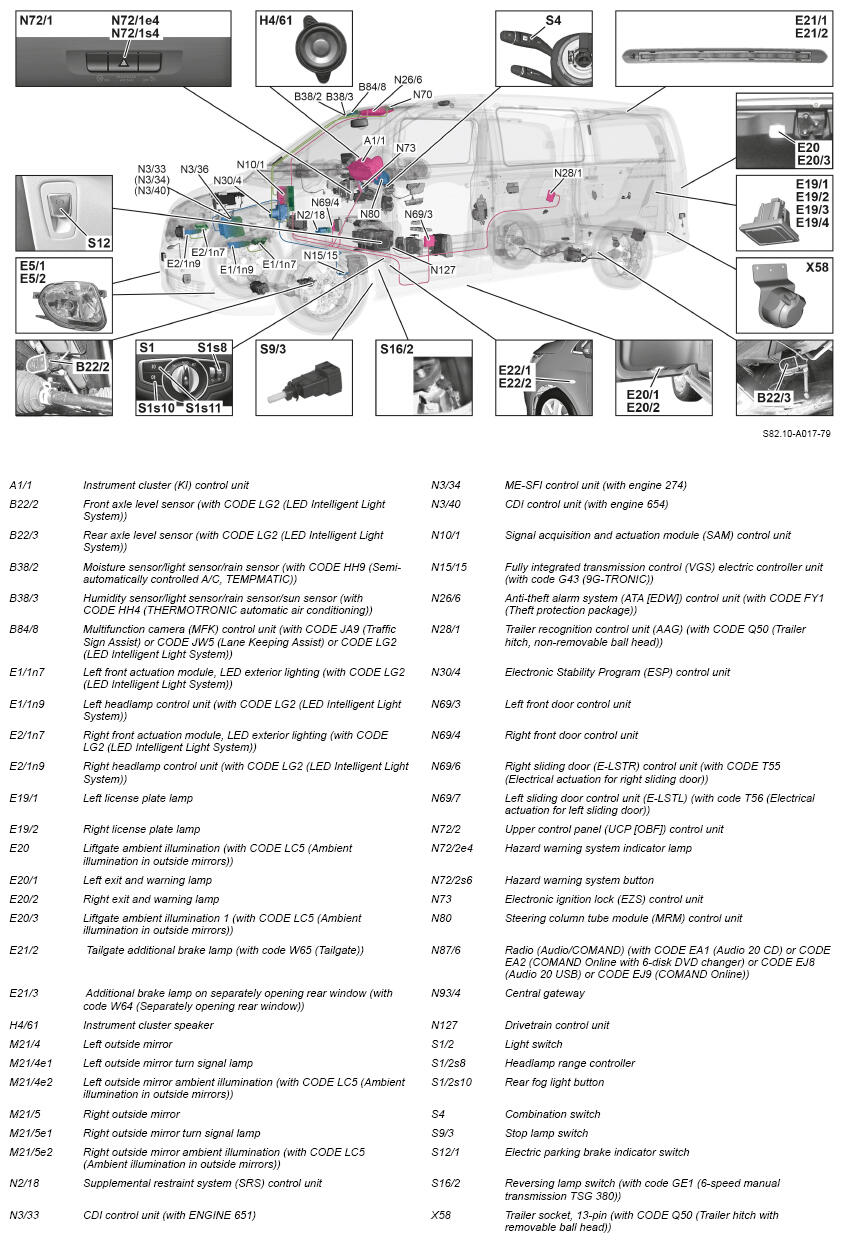

Illustration shows Model 447.8

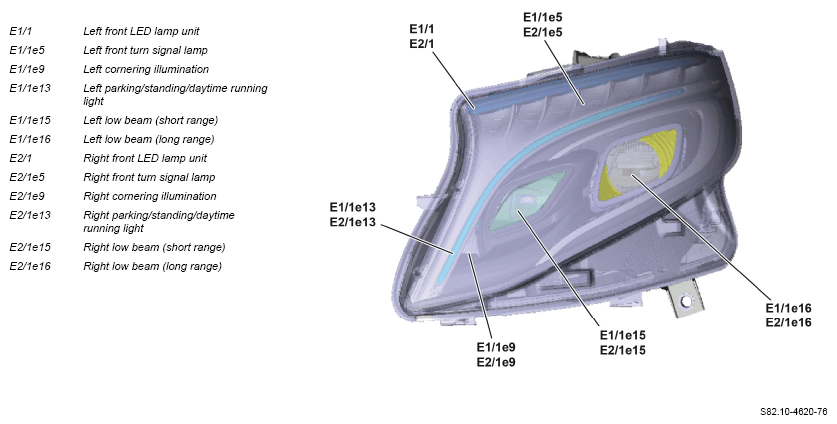

Shown on left front LED lamp unit (with CODE LG2 (LED Intelligent Light System))
Shown on left rear lamp unit (with CODE LG4 (Taillight, brake light and turn signal light in LED technology))
Shown on left rear lamp unit (without CODE LG4 (Taillight, brake light and turn signal light in LED technology))
Illustration shows Model 447.8
| Table of contents for function description of exterior lights | GF82.10-S-0999TRF |
