Exterior Lights Function - GF82.10-S-0003TRB
Model 447.6/7
except code XM0 (Facelift)
Model 448.7

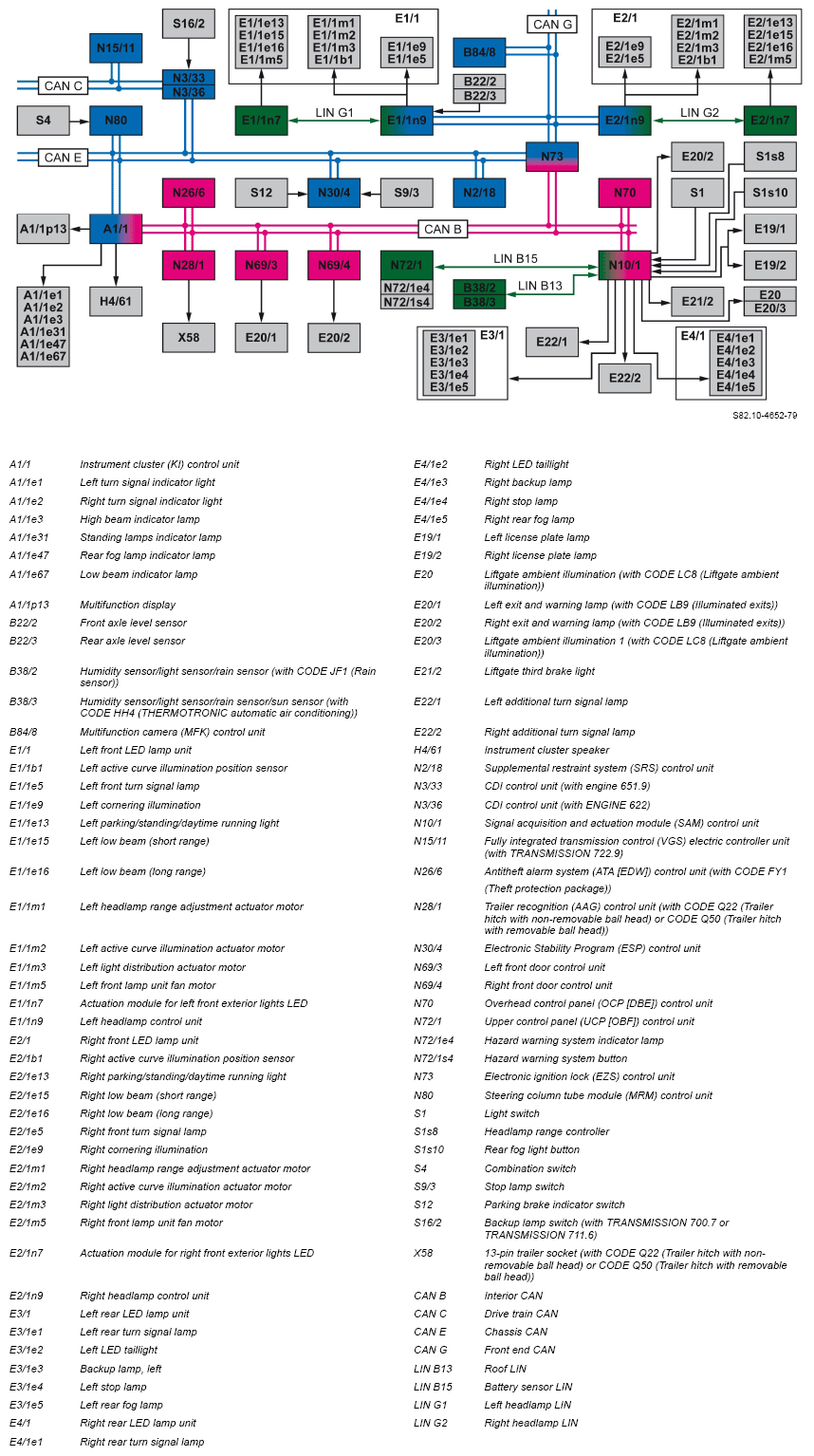

Shown on model 447.6/7 with CODE LG2 (LED Intelligent Light System)

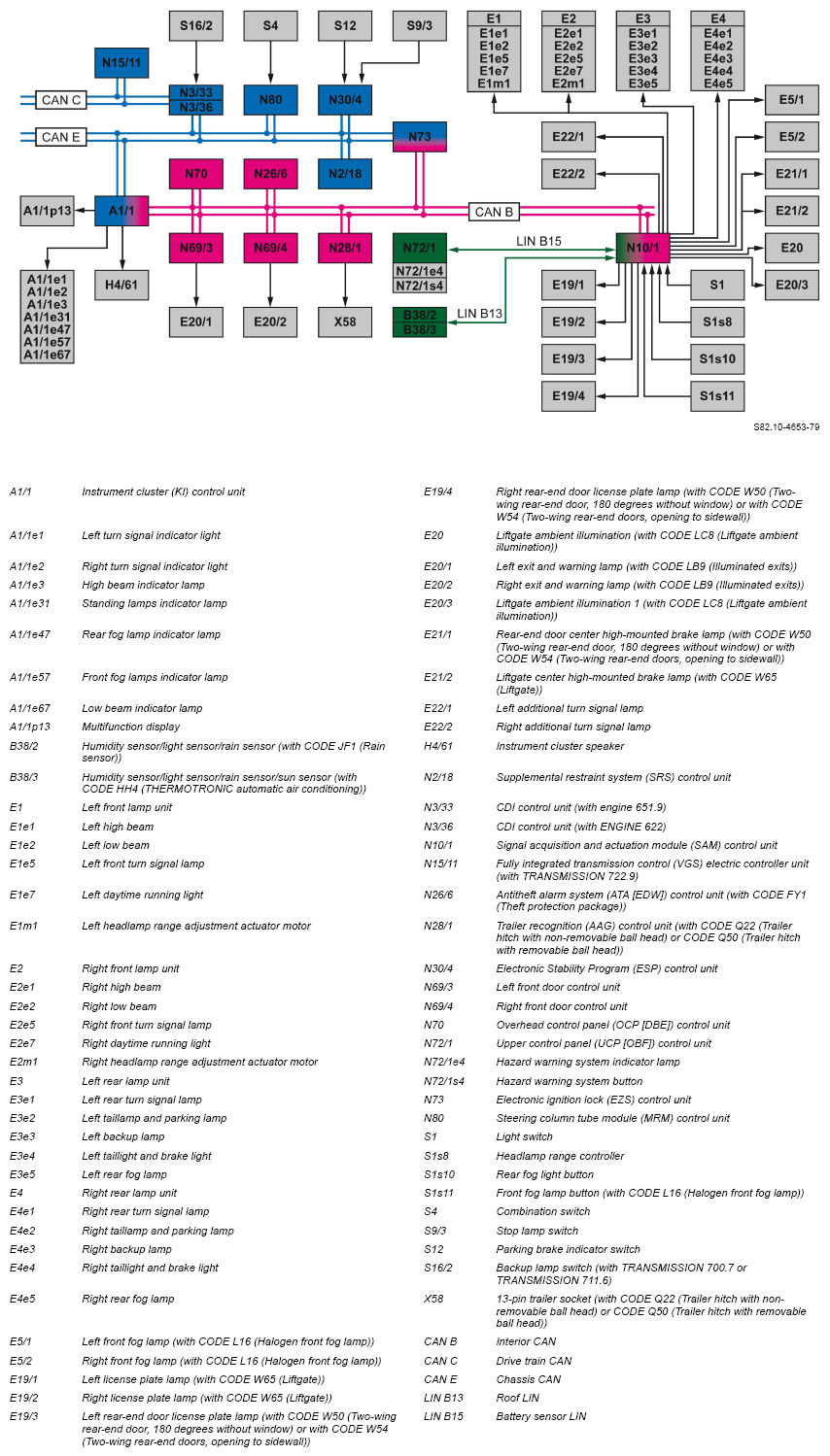

Shown on model 447.6/7 without CODE LG2 (LED Intelligent Light System)
Function requirements, general
- "exhaust stack 30 ON"
Exterior lights (ABL), general
The exterior lights control all the safety and comfort-relevant functions of the front, side and rear lights of the vehicle.
When the transport mode is active, only the basic functions of the exterior lights can be used. Functions such as the LED Intelligent Light System or Adaptive Highbeam Assist with CODE LG2 (LED Intelligent Light System) are deactivated during transport mode. Detailed information on the operating state of the transport mode is given in the separate function description "Energy management, function".
A differentiation is made between the following front headlamp versions in accordance with the vehicle equipment:
- Halogen version front lamp units
- Front LED lamp units with CODE LG2 (LED Intelligent Light System)
Further functions are described in separate documents:
- Standing/parking lights actuation function
- Standing lights actuation
- Lights on warning
- Parking lamp actuation
- Headlamp control function
- Low beam actuation
- High beam actuation (high beams, headlamp flasher)
- Daytime running lamps actuation
- Auto on/off driving lights (via rain/light sensor with additional functions, via wiper activities) with CODE LG2 (LED Intelligent Light System)
- Headlamp range adjustment (HRA)
- Intelligent Light System, function with CODE LG2 (LED Intelligent Light System)
- Cornering illumination
- Dynamic curve illumination
- Active light distribution (motorway lights, extended fog light function)
- Adaptive Highbeam Assist, function with CODE LG2 (LED Intelligent Light System)
- Optical headlamp range adjustment
- Automatic high beams
- Partial high beams
- Front fog light actuation, function
- Turn signal light actuation function
- Turn signaling (left turn signal, right turn signal, one-touch turn signaling)
- Hazard warning flashing
- Brake lights actuation function
- Backup light actuation function
- Headlight switch off delay function
- Automatic headlamp on
- Locator lighting (AFB)
- Emergency light actuation function
| Headlamp control, function | Model 447.6/7 with code LG2 (LED Intelligent Light System) except code XM0 (Facelift) |
GF82.10-S-2009TRC | |
| Model 447.6/7 except code LG2 (LED Intelligent Light System) except code XM0 (Facelift) Model 448.7 except code LG2 (LED Intelligent Light System) |
GF82.10-S-2009TRD | ||
| Headlight switch off delay function | Model 447.6/7 with code LP1 (Interior and ambient illumination for panel van) except code XM0 (Facelift) Model 447.7 with code LP2 (Interior and ambient illumination for crewbus) except code XM0 (Facelift) Model 448.7 with code LP2 (Interior and ambient illumination for crewbus) |
GF82.10-S-2011TRB | |
| Turn signal indicator actuation, function | GF82.10-S-3008TRA | ||
| Brake light actuation, function | GF82.10-S-3010TRA | ||
| Backup lamp actuation, function | GF82.10-S-3011TRA | ||
| Standing/parking lights actuation, function | GF82.10-S-3060TRA | ||
| Front fog light actuation, function | GF82.10-S-3070TRA | ||
| Emergency lamp control, function | GF82.10-S-3013TRA | ||
| Function of Intelligent Light System | Model 447.6/7 with code LG2 (LED Intelligent Light System) except code XM0 (Facelift) |
GF82.10-S-3090TRA | |
| Function of Adaptive Highbeam Assist | Model 447.6/7 with code LG2 (LED Intelligent Light System) except code XM0 (Facelift) |
GF82.10-S-3091TRA | |
| Overview of exterior lights system components | GF82.10-S-9998TRA |
