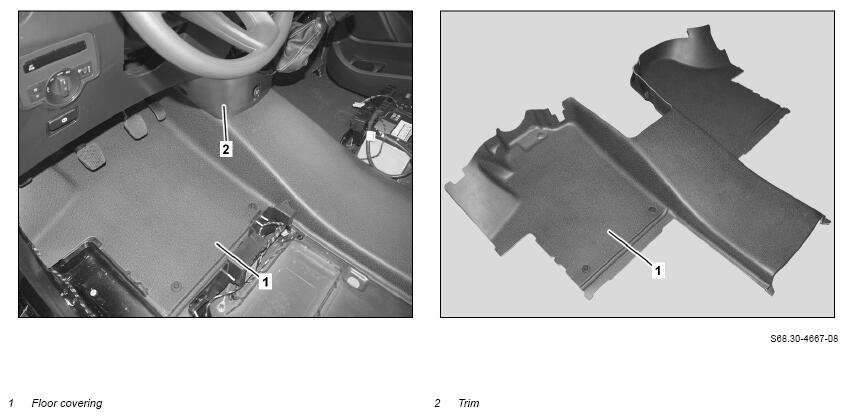

Remove/Install Front Floor Covering - AR68.30-S-0003E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

Shown On model 447.8 With Code F1O (center console with stowage compartment and cup holder, center version) and With Code XM7 (facelift II)

Courtesy of MERCEDES-BENZ USA

Shown On model 447.7 Except Code FF1 (center console with stowage compartment), Except Code FF2 (center console with 1 device installation frame), Except Code FG0 (luxury center console with roller blind) and Except Code XM7 (facelift II)

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove both front seat consoles.		AR91.10-S-3000E
2	Remove both door sill panels.		AR68.30-S-4100E
3	Remove trim in left footwell.		AR68.30-S-4020E
4	Remove trim in right footwell.		AR68.30-S-4030E

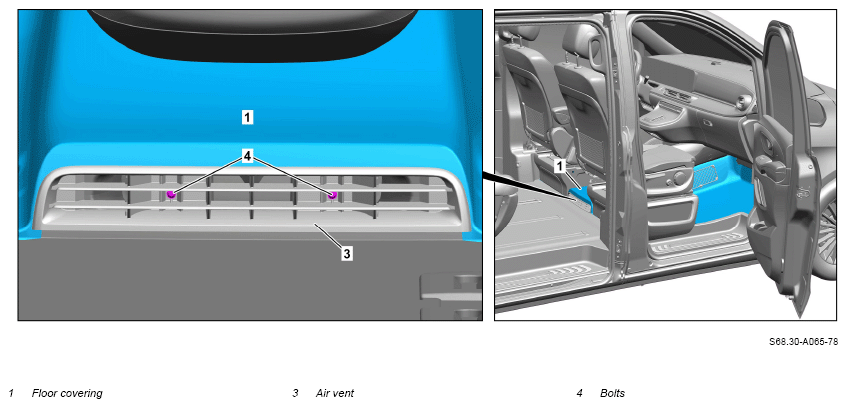

5	Unscrew the screws (4) and pull the air vent (3) back until the floor covering (1) is accessible.	Model 447, 448 with code H00 (Hot/cool air duct to passenger compartment)
6.1	Remove center console.	Model 447 with code F1O (Center console with stowage compartment and cup holder, center design) or with code FF1 (Center console with stowage compartment) or with code FF2 (Center console with 1 device installation frame) or with code FG0 (Luxury center console with roller blind) or with code FG6 (Center console with refrigerator box), Model 448 with code FF1 (Center console with stowage compartment) or with code FG0 (Luxury center console with roller blind) or with code FG6 (Center console with refrigerator box) Model 447 with code F1O (Center console with stowage compartment and cup holder, center design)	AR68.20-S-2000EH
		Model 447 with code FG0 (Luxury center console with roller blind)	AR68.20-S-2000EA
		Model 447 with code FF1 (center console with stowage compartment) or with code FF2 (center console with 1 device installation frame), model 448.7 with CodeFF1 (center console with stowage compartment)	AR68.20-S-2000E
		Model 447.8, 448.8 with code FG6 (Center console with refrigerator box)	AR68.20-S-2000CH
6.2	Remove trim (2).	Model 447.6/7 except code F1O (Center console with stowage compartment and cup holder, center design) except code FF1 (Center console with stowage compartment) except code FF2 (Center console with 1 device installation frame) except code FG0 (Luxury center console with roller blind)	AR68.00-S-1500E
7	Remove stowage box between front seats.	Model 448.7 with code YG5 (Stowage box between front seats)	AR68.20-S-0009CH
8	Remove holder of stowage box between front seats.	Model 448.7 with code YG5 (Stowage box between front seats)
9	Lift the floor covering (1) at the rear, pull it out of the footwells backward and upward and remove from the vehicle.	Helper required.
10	Cut new floor covering (1) to size.	Only when replacing floor covering (1). To be cut according to vehicle equipment. The floor covering (1) to be replaced serves as template for this purpose.
11	Install in the reverse order.
