Adjust Front Side Window - AR67.30-P-0100FR

Model 257, 290

Courtesy of MERCEDES-BENZ USA

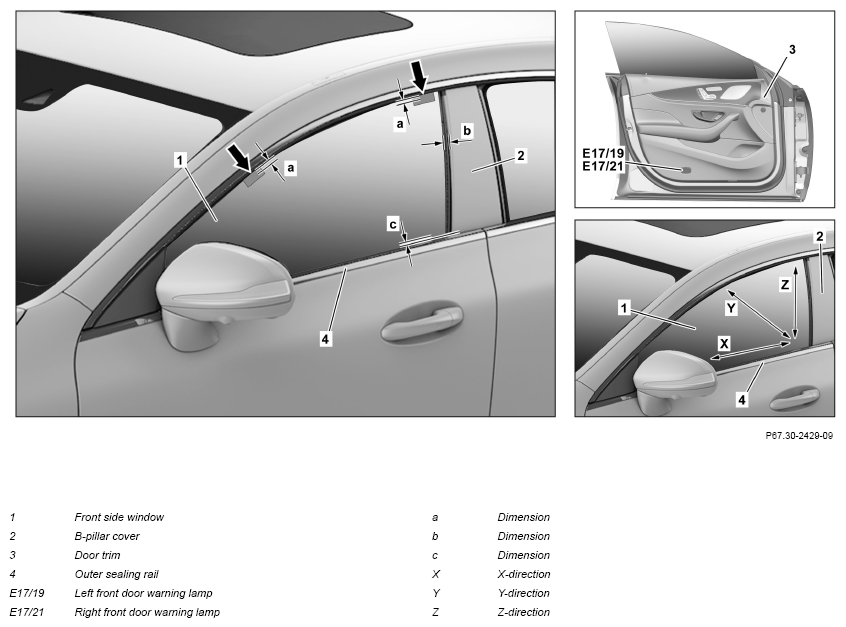

Shown on model 257 except code 811 (Advanced sound system)

	Check
1	Check adjustment of front door.	Driver's door	AR72.10-P-0551FR
		Passenger door Correct adjustment of the front door is a prerequisite for the adjustment of the front side window (1).	AR72.10-P-0552FR
2	Attach tapes (arrows), as shown, so that flush with upper edge of front side window (1).	Attach tapes (arrows) as far apart as possible.
3	Fully lower front side window (1) and then raise again to upper end position.
4	Close front door.
5	Apply markings to tapes (arrows) at lower edge of roof paneling.	Ensure that roof frame seal is not pressed in during application of markings. An incorrect window guide depth will otherwise be determined.
6	Determine dimension (b).	Determine dimension (b) at two locations that are as far apart as possible. A taper of dimension (b) of max. 1 mm is permitted from top to bottom.
7	Determine dimension (c).	Determine dimension (c) at two points at large distance if possible.
8	Open front door and determine dimensions (a).
9	Compare dimensions (a, b, c) with specified values.	Note deviations between actual and specified values.
		Insertion depth of front door side window in roof edge	*BE67.30-P-1001-03E
		Distance between front door side window and B-pillar cover	*BE67.30-P-1002-03E
		Transition between front door side window and B-pillar cover	*BE67.30-P-1003-03E
	Adjust front side window (1) in X-direction (X)
10	Remove door trim (3).		AR72.10-P-6575FR
11	Adjust distance between front side window (1) and B-pillar cover (2).	Observe previously noted deviations.	AR67.30-P-0100-03FR
		Distance between front door side window and B-pillar cover	*BE67.30-P-1002-03E
		Bolt, window to window lifter	*BA72.10-P-1006-01W
		Feeler gauge	Fig 1
	Adjust front side window (1) in Y-direction (Y)
12.1	Remove front door warning lamp (E17/19, E17/21).	Model 257, 290 except code 811 (Advanced sound system)
		Clip remover	Fig 4
12.2	Remove lower speaker cover.	Model 257, 290 with code 811 (Advanced sound system)
		Clip remover	Fig 4
13	Adjust transition between front side window (1) and B-pillar cover (2).	Observe previously noted deviations.	AR67.30-P-0100-02FR
		Transition between front door side window and B-pillar cover	*BE67.30-P-1003-03E
		Socket	Fig 3
		Socket wrench	Fig 2
	Adjusting in Z-direction (Z)
14	Remove outer sealing rail (4).
15	Adjust window guide depth of front side window (1) in roof frame seal.		AR67.30-P-0100-04FR
		Observe previously noted deviations.
		Insertion depth of front door side window in roof edge	*BE67.30-P-1001-03E
		Feeler gauge	Fig 1
	Install
16	Install door trim (3).	When adjusting front side window (1) in X-direction (X).
			AR72.10-P-6575FR
17.1	Install front door warning lamp (E17/19, E17/21).	Model 257, 290 except code 811 (Advanced sound system)
		When adjusting front side window (1) in Y-direction (Y).
17.2	Install lower speaker cover.	Model 257, 290 with code 811 (Advanced sound system)
		When adjusting front side window (1) in Y-direction (Y).
18	Install outer sealing rail (4).	When adjusting front side window (1) in Z-direction (Z).
19	Remove tapes (arrows).
20	Normalize front side window (1).

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Socket Wrench (209 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket (209 589 00 09 03)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
