Overview Of System Components, Telematics - GF82.85-P-9999RD
Model 172.4

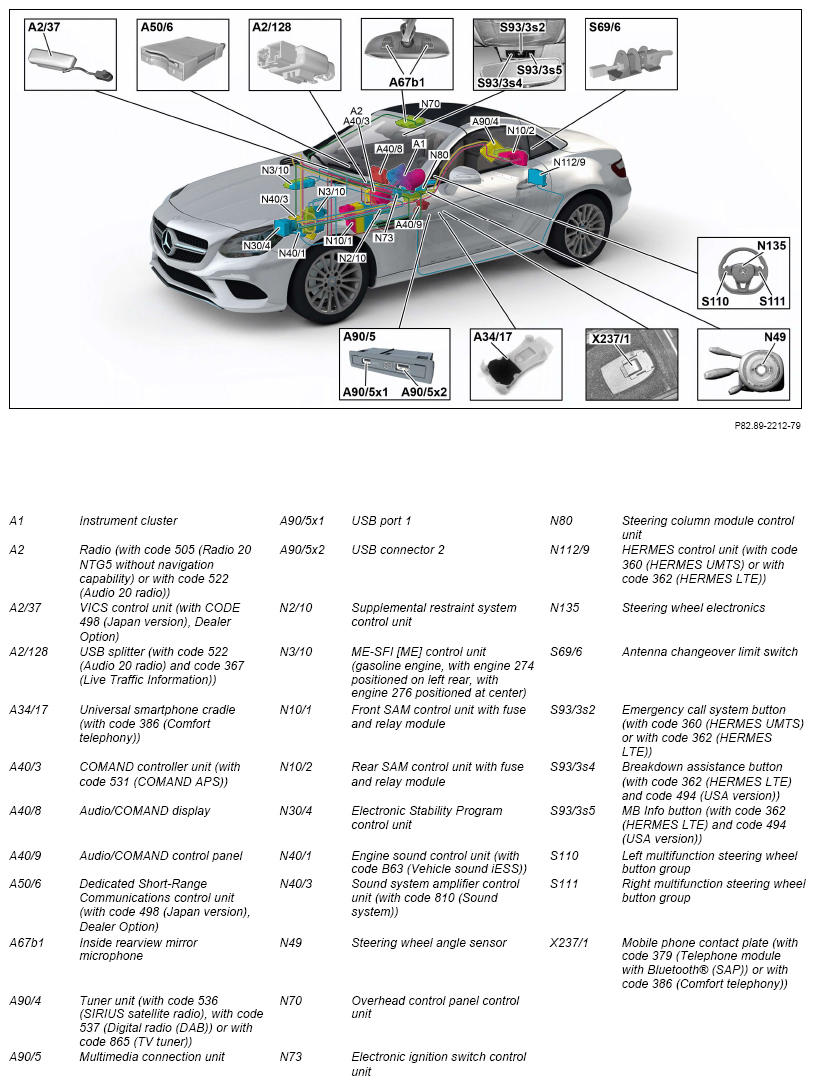

Shown on model 172.4 as of 01.03.2016, without antenna system and speaker system

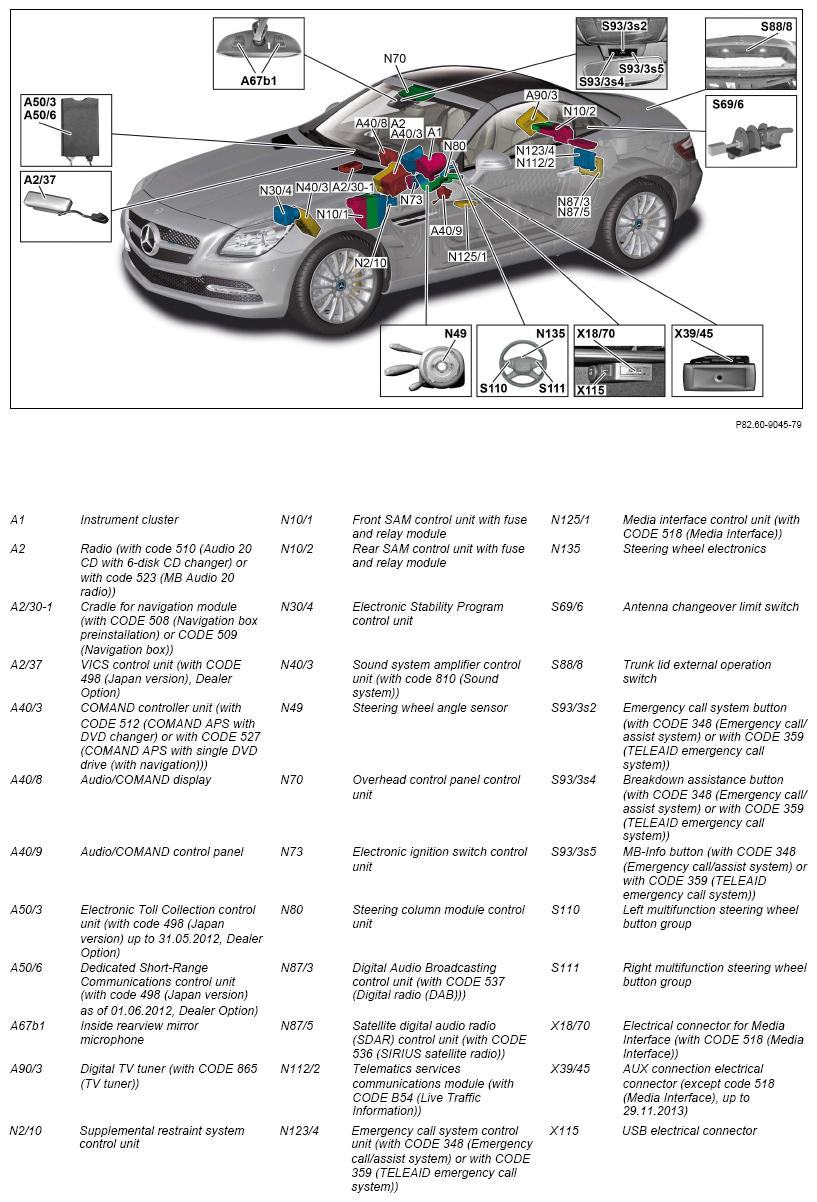

Shown on model 172.4 up to 29.02.2016, without antenna system and speaker system

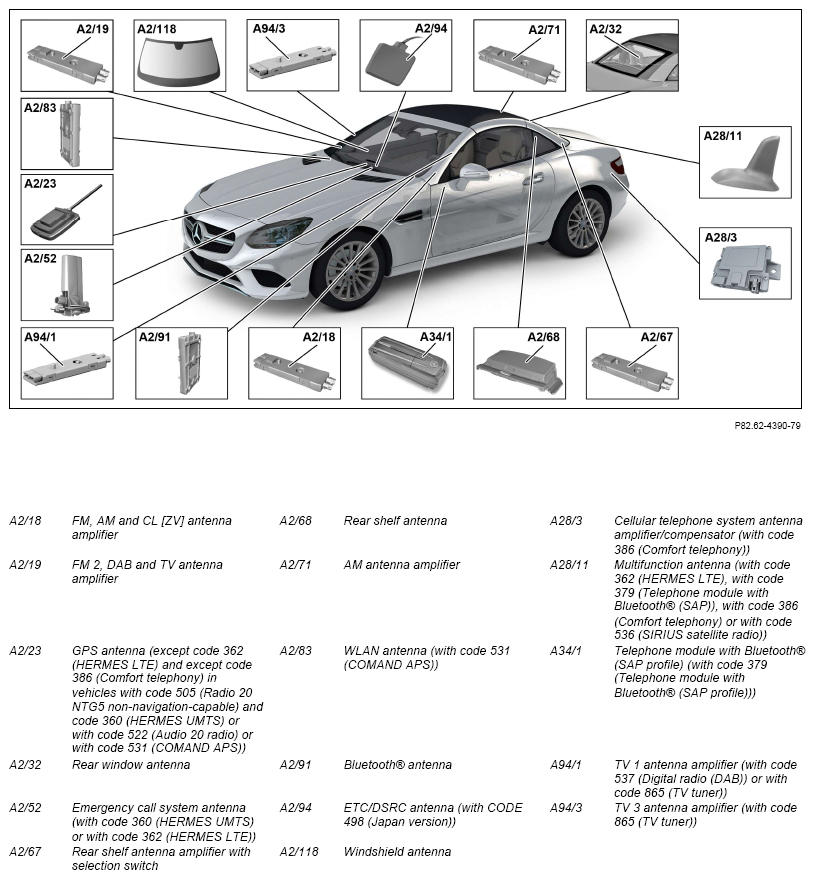

Telematics antenna system, shown on model 172.4 as of 01.03.2016

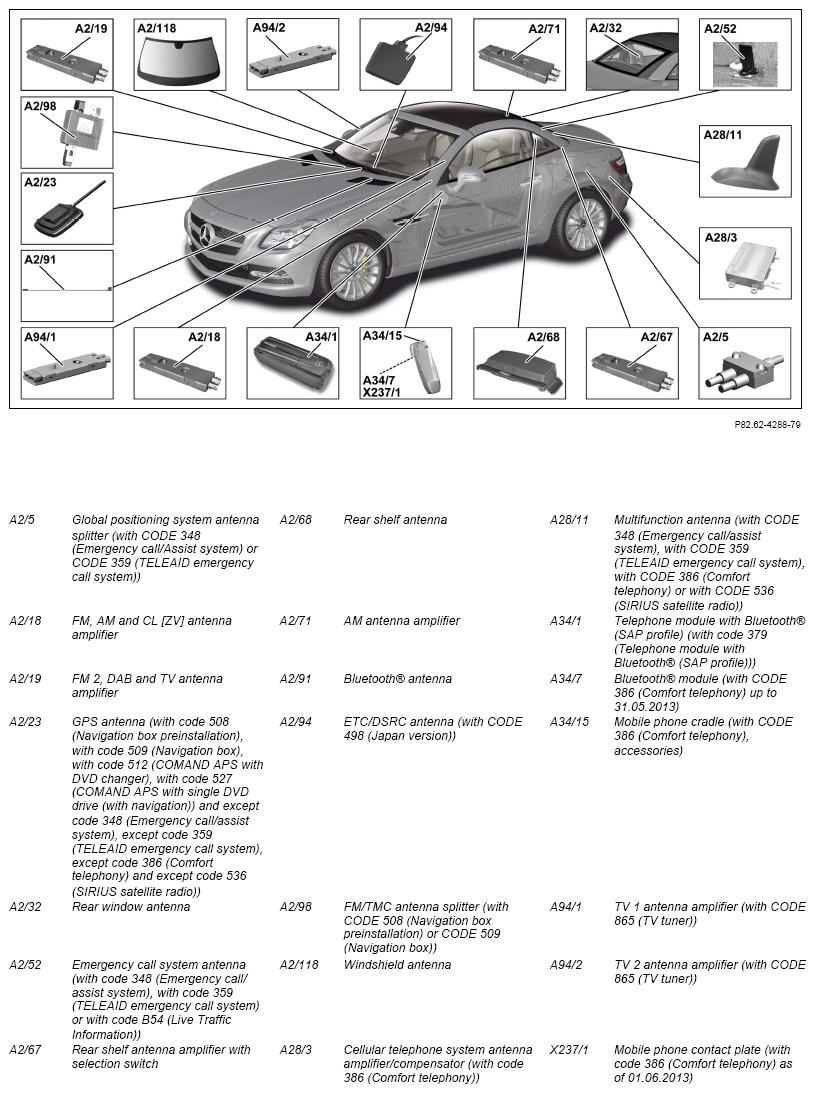

Shown on model 172.4 up to 29.02.2016, telematics antenna system

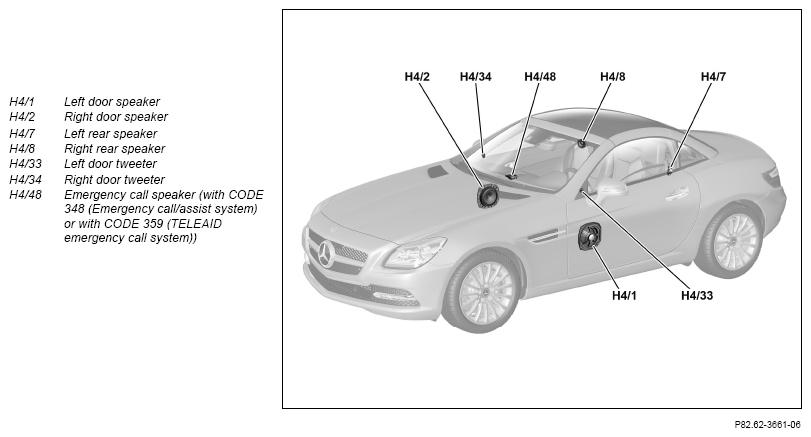

Speaker system except code 810 (Sound system), shown on model 172.4 up to 29.02.2016

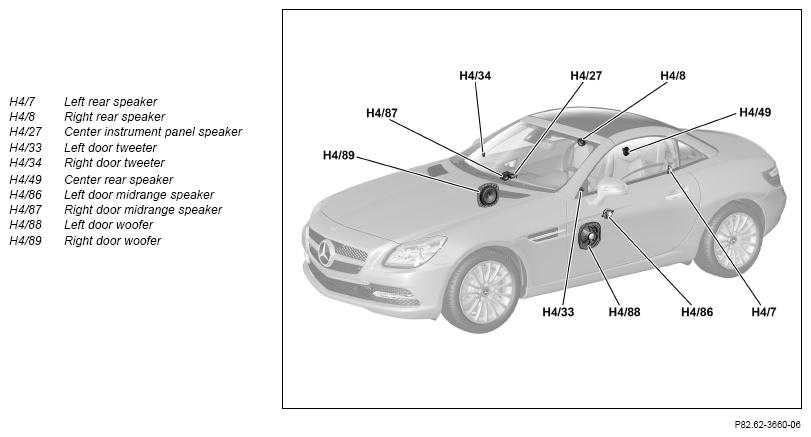

Speaker system with code 810 (Sound system), shown on model 172.4 up to 29.02.2016
| Component description for Electronic Stability Program control unit | Model 172.4 as of model year 2017 N30/4 | GF42.45-P-5119RDA | |
| Model 172.4 up to model year 2017 N30/4 | GF42.45-P-5119RD | ||
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Digital TV tuner, component description | Model 172.4 up to model year 2017 with code 865 (TV tuner) A90/3 | GF82.60-P-3118RDJ | |
| Component description for the radio | Model 172.4 as of model year 2017 with code 505 (Radio 20 NTG5, not navigation-enabled) Model 172.4 as of model year 2017 with code 522 (Audio 20 radio)A2 |
GF82.60-P-3122RDM | |
| Model 172.4 up to model year 2017 with code 510 (Audio 20 CD with 6-disc CD changer) Model 172.4 up to model year 2017 with code 523 (Audio 20 CD) A2 |
GF82.60-P-3122RD | ||
| Component description for media interface control unit | Model 172.4 as of model year 2013 up to model year 2017 with code 518 (Media interface) N125/1 | GF82.60-P-5000RDA | |
| Model 172.4 up to model year 2013 with code 518 (Media interface) N125/1 | GF82.60-P-5000RD | ||
| Tuner unit, component description | Model 172.4 as of model year 2017 with code 536 (SIRIUS satellite radio) Model 172.4 as of model year 2017 with code 537 (Digital radio (DAB)) Model 172.4 as of model year 2017 with code 865 (TV tuner) A90/4 |
GF82.60-P-5015RDM | |
| Component description for Digital Audio Broadcasting control unit | Model 172.4 up to model year 2017 with code 537 (Digital radio (DAB)) N87/3 | GF82.62-P-5000RD | |
| Component description for sound system amplifier control unit | Model 172.4 with code 810 (Sound system) N40/3 | GF82.62-P-5010RD | |
| Telematics services communications module, component description | Model 172.4 up to model year 2017 with code B54 (Live Traffic Information)N112/2 | GF82.85-P-0220RD | |
| HERMES control unit, component description | Model 172.4 with code 360 (HERMES UMTS) Model 172.4 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221RDM | |
| Satellite digital audio radio (SDAR) control unit, component description | Model 172.4 up to model year 2017 with code 536 (SIRIUS satellite radio) N87/5 | GF82.85-P-3121RDU | |
| Component description for COMAND controller unit | Model 172.4 as of model year 2017 with code 531 (COMAND APS) A40/3 | GF82.85-P-3136RDM | |
| Model 172.4 up to model year 2017 with code 512 (COMAND APS with DVD changer) Model 172.4 up to model year 2017 with code 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136RD | ||
| Component description for emergency call system control unit | Model 172.4 with code 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212RDV | |
| Model 172.4 with code 359 (TELE AID emergency call system) except code 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212RDU | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Table of contents for function description, telematics | GF82.85-P-0993RD |
