Telematics Services Communications Module, Component Description - GF82.85-P-0220RD

Model 172.4

up to model year 2017

with code B54 (Live Traffic Information)

Shown on model 172.4

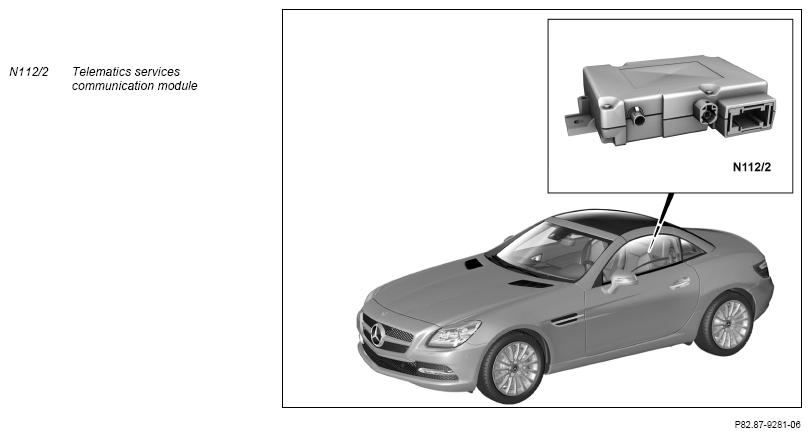

Fig 1: Telematics Services Communications Module Components Location - Model 172.4 Up To Model Year 2017 With Code B54

Courtesy of MERCEDES-BENZ USA

Location

The telematics services communications module is located behind the front seats at the major assembly carrier on model 172.4.

Tasks

The telematics services communications module uses the diagnostic CAN (CAN D). The telematics services communications module makes it possible to receive real-time traffic data that can be processed by the navigation module of the COMAND controller unit (A40/3); The telematics services communications module fulfills the following tasks here:

Receiving and transmitting position data
Receiving and forwarding real time traffic data

Receiving and transmitting position data

The telematics services communication module receives position data via a USB (Universal Serial Bus) connection from the COMAND controller unit.

The telematics services communications module transmits the position data to the service provider via the emergency call antenna (A2/52).

The position data are needed for the real time traffic data service.

Receiving and forwarding real time traffic data

The telematics services communication module receives real time traffic data from the emergency call system antenna and forwards it via USB connection to the COMAND controller unit.

Wiring diagram for telematics services communications module control unit

N112/2

PE82.85-P-2105-97TAA
