Component Description For Media Interface Control Unit - GF82.60-P-5000RDA
Model 172.4
as of model year 2013 up to model year 2017
with code 518 (Media interface)
Shown with CODE 386 (Comfort telephony)

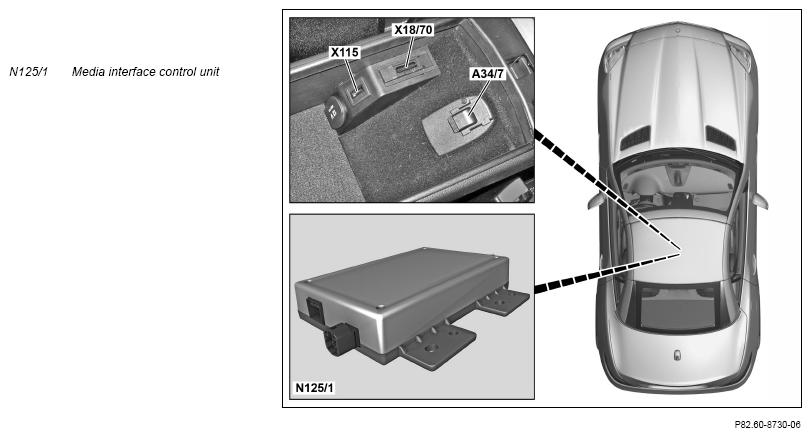

Fig 1: Media Interface Control Unit Components Location - Model 172.4 As Of Model Year 2013 Up To Model Year 2017 With Code 518 (Shown With Code 386)
Location
The media interface control unit is located beneath the armrest.
Tasks
The media interface control unit is responsible for the following tasks:
- Receive signals
- Transmitting signals
Receive signals
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
- Power supply via circuit 31 and circuit 30g
- Audio signals and data from the Media Interface electrical connector (X18/70) over a prefabricated connecting cable
- Electronic wake-up for MOST
Media Oriented System Transport (MOST)
- Control and operating signals from the audio equipment
Transmitting signals
- Direct lines
- MOST
Direct lines
- General power supply and power supply for the universal serial bus (USB) to the Media Interface electrical connector
- Control signals to media interface electrical connector via a prefabricated connecting cable
MOST
- Audio signals and data to the audio equipment
| Wiring diagram for media interface control unit N125/1 | PE82.60-P-2105-97TAA |
