Remove/Install Transmission With Torque Converter - AR27.10-P-0500OLE

Transmission 725.0 in model 213 with engine 276

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 238 with engine 276

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove
1	Secure vehicle to prevent it moving away.
2	Shift the transmission (1) into neutral position.
3	Release parking brake.
4	Remove ground line from the battery.	Transmission 725.0 in model 213 with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR54.10-P-0003LW
		Transmission 725.0 in model 238 with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR54.10-P-0003LWO
5	Remove the charge air cooler and place to one side with lines attached.		AR09.41-P-6817MND
6	Secure vehicle on vehicle lift.		AR00.60-P-0100CW
7	Remove oil lines.	Install center and rear sections of lower engine compartment lining only after the leak test.	AR27.55-P-0600OLD
8	Support transmission (1) with major-assembly support and mounting plate and strap down securely.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
9	Lower engine with engine mounts at front onto front axle carrier. 000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B

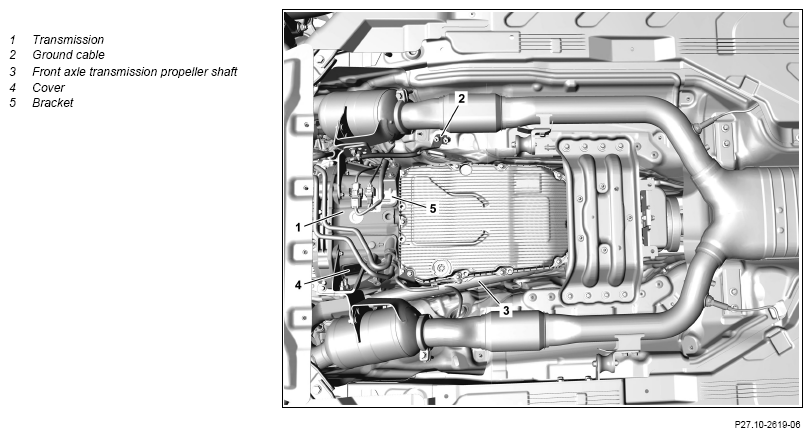

10	Remove front axle differential propeller shaft (3) from front axle differential.		AR41.10-P-0070OLC
11	Detach ground line (2) from transmission (1).
12	Release and disconnect electrical connection on electric controller unit.
13	Remove electrical wiring harness from transmission (1).
14	Remove cover (4).

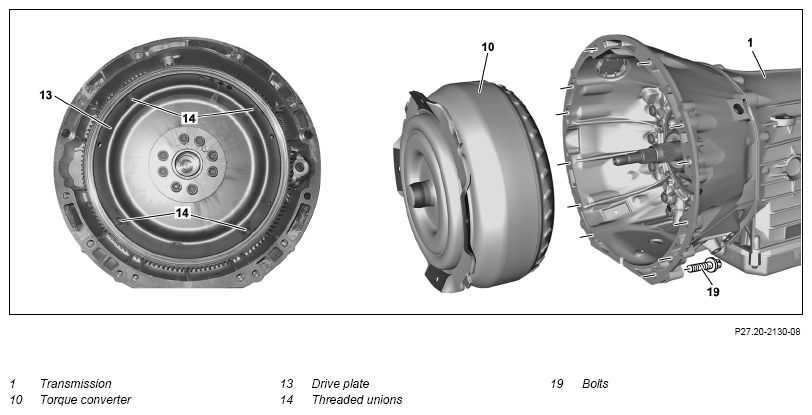

15	Remove torque converter (10) from drive plate (13).	Do not use an impact wrench or compressed air tools for screwing out and screwing in. Otherwise, the threaded unions (14) in the drive plate (13) will be damaged.	AR27.20-P-0001-01EWM
		Socket wrench bit	Fig 2
		Long wedge	Fig 1
16	Remove holder (5).	Transmission 725.0 in model 213 with engine 276.853 with code M005 (Vehicles with 4MATIC/all-wheel drive)
17	Unfasten starter wiring harness from transmission (1).
18	Remove left starter wiring harness holder from transmission (1).
19	Detach starter from transmission (1) and place to one side and fasten with lines connected.		AR15.30-P-7100MNG
20	Unscrew screws (19).
21	Remove transmission (1) with torque converter (10). 000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Secure the torque converter (10) to prevent it from dropping down. Otherwise damage will occur.
22	Remove torque converter (10).	If necessary.	AR27.20-P-0050EWM
23	Remove corrosion from crankshaft.		AR03.20-P-1000-01A
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Assembly cleaner	*BR00.45-Z-1028-04A
24	Check threaded unions (14) in drive plate (13).	If damaged or loose threaded unions (14) are present: ↓ Install a new clutch plate (13).	AR03.30-P-8003MND
	Install
25	Insert torque converter (10).	After removing the torque converter (10).	AR27.20-P-0050EWM
26	Install the transmission (1). 000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount	While doing so, align the bores of the torque converter (10) with the threaded unions (14) in the drive plate (13).	WS01.00-P-0092B
27	Tighten screws (19).	Screw/bolt, transmission to engine	*BA27.10-P-1001-04H
28	Release mounting of starter and mount starter onto transmission (1).		AR15.30-P-7100MNG
29	Attach left starter wiring harness holder at transmission (1).	M6x1	*BA00.10-P-1002-04A
30	Fasten starter wiring harness onto transmission (1).
31	Install bracket (5).	Transmission 725.0 in model 213 with engine 276.853 with code M005 (Vehicles with 4MATIC/all-wheel drive) M6x1	*BA00.10-P-1002-04A
32	Mount torque converter (10) onto drive plate (13).	Never use an impact wrench or compressed air tools for screwing in or unscrewing the screws. Otherwise, the threaded unions (14) in the drive plate (13) will be damaged.	AR27.20-P-0001-01EWM
		Bolt, torque converter to drive plate/star-shaped drive plates	*BA27.20-P-1001-01D
		Long wedge	Fig 1
		Socket wrench bit	Fig 2
33	Install cover (4).
34	Mount electrical wiring harness onto transmission (1).
35	Connect electrical connector to electric controller unit and lock.
36	Attach ground line (2) to transmission (1).	Bolt, ground line to transmission housing	*BA27.10-P-1024-04H
37	Install front axle differential propeller shaft (3) at front axle differential.		AR41.10-P-0070OLC
38	Lift engine with engine mounts until oil lines can be attached. 000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
39	Install oil lines.	Install center and rear sections of lower engine compartment lining only after the leak test.	AR27.55-P-0600OLD
40	Unfasten strapping from transmission (1) and lower major-assembly support and mounting plate. 000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
41	Install the charge air cooler.		AR09.41-P-6817MND
42	Attach ground line to battery.	Transmission 725.0 in model 213 with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR54.10-P-0003LW
		Transmission 725.0 in model 238 with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR54.10-P-0003LWO
43	Check and correct transmission oil level.		AR27.00-P-0270EWN
44	Perform transmission adaptation with vehicle diagnosis system.	After replacement or repair of transmission (1). Transmission 725.0 in model 213 with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AD00.00-P-2000-04B
		Transmission 725.0 in model 238 with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AD00.00-P-2000-06LWO
45	Reset data on service life of torque converter lockup clutch with the vehicle diagnosis system.	After replacement of torque converter (10). Transmission 725.0 in model 213 with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AD00.00-P-2000-04B
		Transmission 725.0 in model 238 with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AD00.00-P-2000-06LWO
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
46	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run and check transmission (1) for leak tightness and proper operation.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
47	Install center and rear sections of lower engine compartment lining.		AR61.20-P-1105LWE
48	Remove vehicle lift safety device and lower vehicle.		AR00.60-P-0100CW

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
