Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600OLD

Transmission 725.0 in model 213

with engine 276 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 238 with engine 276

with code M005 (Vehicles with 4MATIC/all-wheel drive)

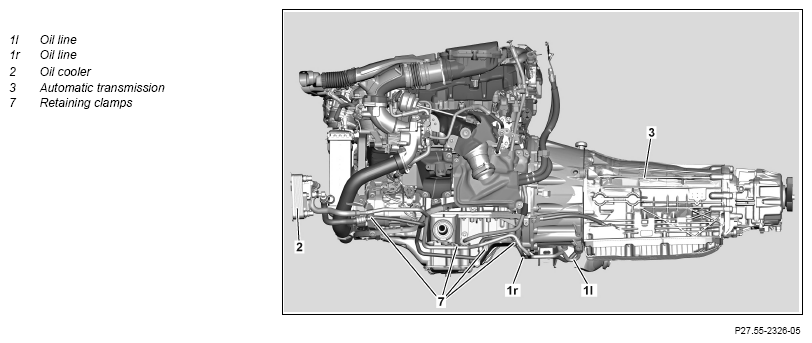

Fig 1: Oil Lines Of Oil Cooling For Automatic Transmission Components Location - Transmission 725.0 In Model 213 With Engine 276 With Code M005

Courtesy of MERCEDES-BENZ USA

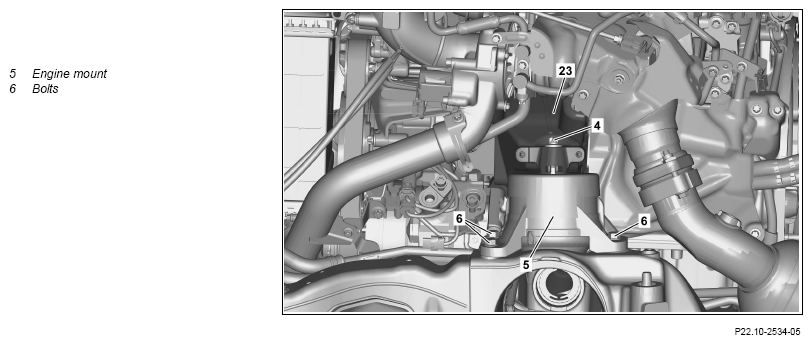

Shown: left engine mount

Courtesy of MERCEDES-BENZ USA

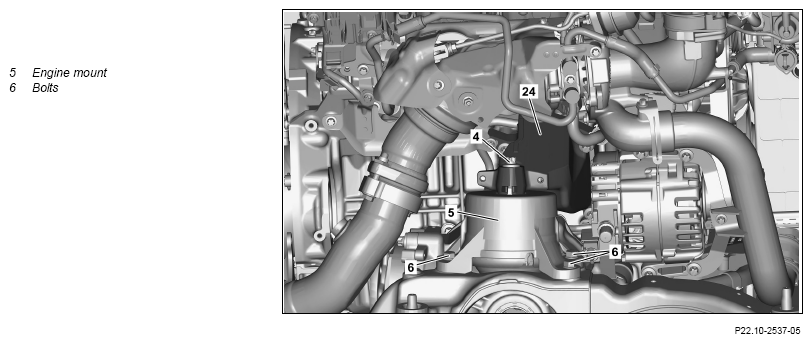

Shown on right engine mount

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove center and rear section of lower engine compartment paneling.	Install center and rear sections of lower engine compartment lining only after the leak test.	AR61.20-P-1105LWE
2	Remove intermediate shaft.		AR33.30-P-0625LWX
3	Remove right front axle shaft.		AR33.30-P-0620LW
4	Remove left catalytic converter.		AR49.10-P-5502MND
5	Remove right catalytic converter.		AR49.10-P-5503MND
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
6	Mount engine support fixture.		AR01.10-P-2400-17MND
		Engine hoist	Fig 3
		Adapter kit	Fig 6
		Adaptation plates	Fig 5
		Engine lifting device	Fig 2
7	Remove screws (6) of front engine mounts (5).	Transmission 725.0 in model 213 with engine 276 with code M005 (Vehicles with 4MATIC/all- wheel drive) Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03N
		Transmission 725.0 in model 238 with engine 276 with code M005 (Vehicles with 4MATIC/all- wheel drive) Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03O
8	Raise engine until oil lines (1l, 1r) are exposed.
9	Detach retaining clamps (7) of oil lines (1l, 1r).	Screw, oil cooler oil line to oil pan	*BA27.55-P-1003-01D
		Bolt, clamp to oil line	*BA27.55-P-1004-01D
		Bolt, clamp of oil cooler oil line to bracket	*BA27.55-P-1005-01D
		Screw, oil cooler oil line clamp to oil pan	*BA27.55-P-1006-01D
10	Detach oil lines (1l, 1r) from oil cooler (2).		AR27.10-P-0501-03LF
		Record plug	Fig 4
11	Seal openings in oil cooler (2) using suitable stop plugs.	Record plug	Fig 4
12	Detach oil lines (1l, 1r) from automatic transmission (3).		AR27.10-P-0501-03LF
		Record plug	Fig 4
13	Seal openings in automatic transmission (3) using suitable stop plugs.	Record plug	Fig 4
14	Remove oil lines (1l, 1r) towards the rear.	: Replace seals.
15	Install in the reverse order
16	Check and correct oil level in automatic transmission (3).		AR27.00-P-0270EWN
17	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Check automatic transmission (3) for proper operation and leak tightness.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
18	Install center and rear sections of lower engine compartment lining.		AR61.20-P-1105LWE

Fig 2: Identifying Engine Lifting Device (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Engine Hoist (205 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Adaptation Plates (240 589 00 32 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Adapter Kit (240 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
