Remove/Install Drive Plate - AR03.30-P-8003MND
Engine 276.8 in model 213, 238
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Remove/install | |||
| 1 | Remove A/T with the torque converter | Engine 276.8 in model 213, 238 with transmission 725.0 with code M005 (4MATIC) |
AR27.10-P-0500OLE |
| 2 | Install retaining lock for crankshaft/starter ring gear | AR03.30-P-5000MND | |
| 3 | Remove screw/bolts (1a) from drive plate (1) | AR03.30-P-8001-02MM | |
| *BA03.30-P-1002-01M | |||

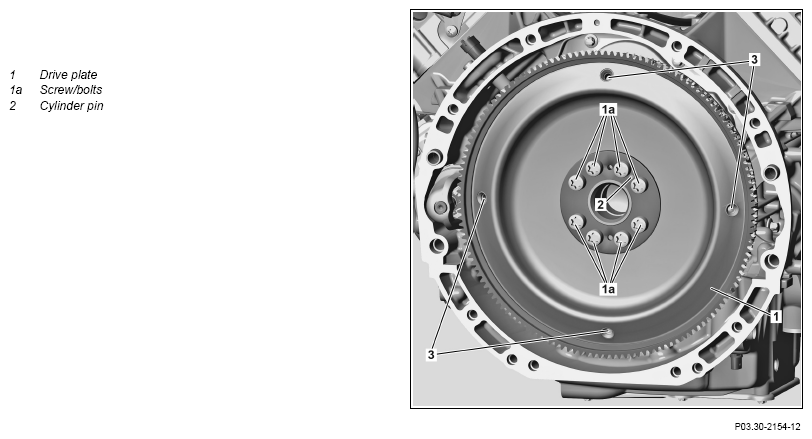

| Fig 2 | |||
| 4 | Remove drive plate (1) from crankshaft flange | ||
| 5 | Check drive plate (1) for damage | When reusing the drive plate (1). If damage is present. ↓ Install new drive plate (1). |
|
| 6 | Install in the reverse order | ||
| 7 | Perform default initialization and then sensor rotor adaptation using the diagnostic system | Only when replacing the clutch plate (1). | |
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| Engine 276.8 in model 238 ME-SFI [ME] control unit → Adaptations → Teach-in processes |
AD00.00-P-2000-06LWO |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA03.30-P-1002-01M | Bolt, starter ring gear/drive plate to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 45 | ||
| Stage 3 | ∠° | 90 | ||
