Fill Automatic Transmission With Transmission Oil - AR27.00-P-0270EWN

Transmission 725.0 (except 725.007/017/037/047), 725.1

G13745346Courtesy of MERCEDES-BENZ USA
G13745347Courtesy of MERCEDES-BENZ USA
  Risk of death  by slipping or tipping the vehicle off the lifting platform Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Warning Risk of injury  on skin and eyes from handling hot or glowing objects Wear protective gloves, protective clothing and, protective goggles if necessary. AS00.00-Z-0002-01A
WARNING Risk of accident  by starting up automatically while the engine is running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
CAUTION Caution Risk of injury  through cuts or scrapes on sharp-edged vehicle parts Always wear protective gloves when working on or in the area of sharp, unburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
CAUTION caution Risk of injury  on skin and eyes from handling transmission fluid.
Health risk  from swallowing transmission fluid.		 Wear protective gloves, protective clothing and protective goggles.
Do not pour transmission oil into drinking containers.		 AS00.40-Z-0001-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
  Fill with transmission oil
1 Remove the lower engine compartment panel. Transmission 725.0 (except 725.007/017/037/047), 725.1 in Model 206 AR61.20-P-1105WT
    Transmission 725.0 (except 725.007/017/037/047) in Model 167 AR61.20-P-1105ME
    Transmission 725.0 (except 725.007/017/037/047) in Model 463 as of Model year 2019 AR61.20-P-1105XG
    Transmission 725.0 (except 725.007/017/037/047), 725.1 in Model 257 AR61.20-P-1105FR
    Transmission 725.0 (except 725.007/017/037/047) in Model 290 AR61.20-P-1105FRX
    Transmission 725.0 (except 725.007/017/037/047) in Model 172.4 with engine 651 AR94.30-P-5300W
    Transmission 725.0 (except 725.007/017/037/047) in Model 207, 212, 218 with engine 642
Transmission 725.0 (except 725.007/017/037/047) in Model 207, 212, 218 with engine 651		 AR94.30-P-5300EW
    Transmission 725.0 (except 725.007/017/037/047) in Model 172.4 with engine 274
Transmission 725.0 (except 725.007/017/037/047) in Model 172.4 with engine 276		 AR61.20-P-1105W
    Transmission 725.0 (except 725.007/017/037/047) in Model 205, 253 AR61.20-P-1105LW
    Transmission 725.0 (except 725.007/017/037/047) in Model 231 AR61.20-P-1105RK
    Transmission 725.0 (except 725.007/017/037/047), 725.1 in Model 213, 238 AR61.20-P-1105LWE
    Transmission 725.0 (except 725.007/017/037/047) in Model 217, 222 AR61.20-P-1105LF
    Transmission 725.0 (except 725.007/017/037/047) in Model 218 with engine 276
Transmission 725.0 (except 725.007/017/037/047) in Model 218 with engine 278		 AR61.20-P-1105EW
    Transmission 725.0 (except 725.007/017/037/047) in Model 166, 292 AR61.30-P-1001GQ
    Transmission 725.0 (except 725.007/017/037/047), 725.1 in Model 223 AR61.20-P-1105S
2 Determine the design of the oil pan. Notes on versions of the oil pan Transmission 725.0 (except 725.007/017/037/047)
If the old version is installed,
↓
Replace the oil pan.		 AH27.10-P-0002-01EWN
    Transmission 725.0 (except 725.007/017/037/047) in Model 463
as of Model year 2019		 AR27.10-P-7031XG
    Transmission 725.0 (except 725.007/017/037/047) in Model 257 AR27.10-P-7031MSA
    Transmission 725.0 (except 725.007/017/037/047) in Model 166, 292 AR27.10-P-7031EWM
    Transmission 725.0 (except 725.007/017/037/047) in Model 172, 207, 231 AR27.10-P-7030EWM
    Transmission 725.0 (except 725.007/017/037/047) in Model 212, 218 AR27.10-P-7030AVG
    Transmission 725.0 (except 725.007/017/037/047) in Model 213, 238 AR27.10-P-7030OLC
    Transmission 725.0 (except 725.007/017/037/047) in Model 205, 253 AR27.10-P-7030LW
    Transmission 725.0 (except 725.007/017/037/047) in Model 217, 222 AR27.10-P-7030LF
    Transmission 725.0 (except 725.007/017/037/047) in Model 167 AR27.10-P-7031MSC
    Transmission 725.0 (except 725.007/017/037/047) in Model 223
IMPORTANT When ordering the new oil pan, the new version is supplied automatically.		 AR27.10-P-7031S
3 Position a suitable drip tray under the transmission.
4 Unscrew the quick release (1). NOTES
The torque specified on the oil pan is the max. torque for the quick-release coupling (1).
If overtightened, the oil pan will be damaged.
SPECIAL TOOL Socket wrench		 Fig 1

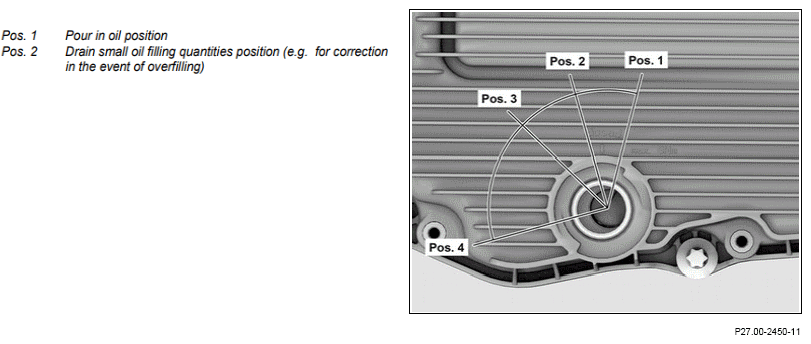

5 Move overflow pipe to "pour in oil" position (Pos. 1). SPECIAL TOOL Socket wrench Fig 3
6
REFER TO SPECIAL TOOLS		 Attach adapter and connect the oil dispenser.
000 588 06 82 00 Oil dispenser		   WS18.00-P-0026B
    NOTES
Set the air pressure on the oil dispenser to a maximum of 2 bar before filling the transmission.
Otherwise the oil pan will be damaged.
IMPORTANT The oil dispenser remains connected during the entire filling and testing process.
SPECIAL TOOL Adapter		 Fig 2
7
REFER TO CAPACITIES & SPECIFICATIONS		 Pump transmission oil into the transmission.
Fluid transmission ATF (Specification 236.17)		 IMPORTANT If the transmission oil has been drained from the oil pan, pre-fill the transmission with approx. 4.5 L and if the transmission oil has been drained from the oil pan and the torque converter, and if the transmission is completely empty, fill it with 7.5 L. BB00.40-P-0236-17A
8 Start the test routine, check the transmission oil level and correct it if necessary.   AR27.00-P-0270-02EWN
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 (except 725.007/017/037/047) in Model 223, 257, 290
Transmission 725.1 in Model 206, 223, 257		 AD00.00-P-2000-06FR
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 (except 725.007/017/037/047) in Model 205, 213, 217, 222, 253
Transmission 725.0 (except 725.007/017/037/047) in Model 463
as of Model year 2019
Transmission 725.1 in Model 213		 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 (except 725.007/017/037/047)
in Model 166, 172, 207, 212, 218, 231, 292		 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 (except 725.007/017/037/047), 725.1 in Model 238 AD00.00-P-2000-06LWO
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 (except 725.007/017/037/047) in Model 167 AD00.00-P-2000-06ME
REFER TO SPECIAL TOOLS 000 588 09 19 00 Oil level sensor   WS27.00-P-0188B
REFER TO SPECIAL TOOLS 000 588 06 82 00 Oil dispenser   WS18.00-P-0026B
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.17) IMPORTANT Select ultrasonic measurement method in XENTRY.
IMPORTANT On vehicles with thermostatically-controlled oil cooler.
After opening the oil cooling circuit (e.g. new oil cooler), heat up the transmission to more than 90 °C so that the thermostat on the oil cooler opens.		 BB00.40-P-0236-17A
    Assembly cleaner *BR00.45-Z-1028-04A
    MB Plastilube brake paste (brownish) *BR00.45-Z-1084-06A
    SPECIAL TOOL Socket wrench Fig 1
    SPECIAL TOOL Socket wrench Fig 3
    SPECIAL TOOL Adapter Fig 2
9
REFER TO SPECIAL TOOLS		 Disconnect adapter and screw in oil dispenser and quick-release fastener (1).
000 588 06 82 00 Oil dispenser		 NOTES
Engine running when closing off oil dispenser.
Otherwise, more oil will run out.
IMPORTANT Engine must run at idle, else too much oil will escape.
IMPORTANT A small quantity of oil runs out of the overflow pipe.		 WS18.00-P-0026B
    SPECIAL TOOL Adapter Fig 2
    SPECIAL TOOL Socket wrench Fig 1
10 Perform engine test run and check transmission for leak tightness and proper operation.
11 Install lower engine compartment lining. Transmission 725.1 in Model 206 AR61.20-P-1105WT
    Transmission 725.0 (except 725.007/017/037/04) in Model 463
as of Model year 2019		 AR61.20-P-1105XG
    Transmission 725.0 (except 725.007/017/037/047), 725.1 in Model 257 AR61.20-P-1105FR
    Transmission 725.0 (except 725.007/017/037/047) in Model 167 AR61.20-P-1105ME
    Transmission 725.0 (except 725.007/017/037/047) in Model 290 AR61.20-P-1105FRX
    Transmission 725.0 (except 725.007/017/037/047) in Model 172.4 with engine 651 AR94.30-P-5300W
    Transmission 725.0 (except 725.007/017/037/047) in Model 207, 212, 218 with engine 642
Transmission 725.0 (except 725.007/017/037/047) in Model 207, 212, 218 with engine 651		 AR94.30-P-5300EW
    Transmission 725.0 (except 725.007/017/037/047) in Model 172.4 with engine 274
Transmission 725.0 (except 725.007/017/037/047) in Model 172.4 with engine 276		 AR61.20-P-1105W
    Transmission 725.0 (except 725.007/017/037/047) in Model 205, 253 AR61.20-P-1105LW
    Transmission 725.0 (except 725.007/017/037/047) in Model 231 AR61.20-P-1105RK
    Transmission 725.0 (except 725.007/017/037/047), 725.1 in Model 213, 238 AR61.20-P-1105LWE
    Transmission 725.0 (except 725.007/017/037/047) in Model 217, 222 AR61.20-P-1105LF
    Transmission 725.0 (except 725.007/017/037/047) in Model 218 with engine 276
Transmission 725.0 (except 725.007/017/037/047) in Model 218 with engine 278		 AR61.20-P-1105EW
    Transmission 725.0 (except 725.007/017/037/047) in Model 166, 292 AR61.30-P-1001GQ
    Transmission 725.0 (except 725.007/017/037/047), 725.1 in Model 223 AR61.20-P-1105S
Fig 1: Identifying Socket wrench (724 589 01 09 00)
G13745348Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Adapter (725 589 00 90 00)
G12935427Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Socket wrench (725 589 00 09 00)
G11971897Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
BR00.45-Z-1084-06A MB Plastilube brake paste (brownish) A 002 989 37 51
