Remove/Install Starter - AR15.30-P-7100MNG

Engine 276.8 in model 213, 238 with code M005 (4MATIC)

G13744893Courtesy of MERCEDES-BENZ USA

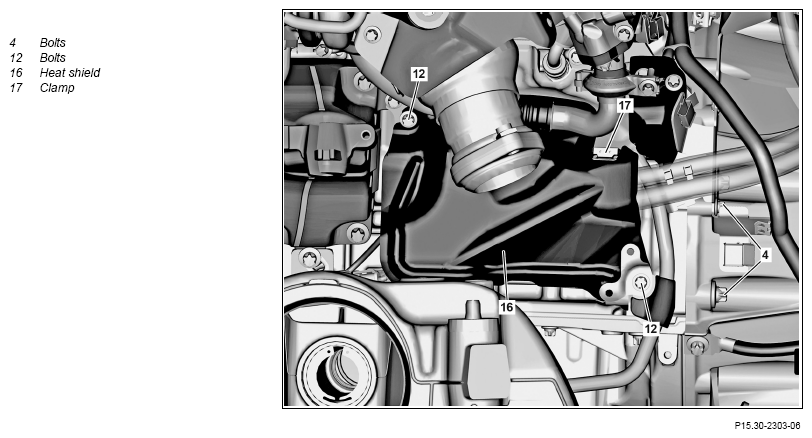

Fig 1: Starter Components Location - Engine 276.8 In Model 213 With Code M005
G13744894WARNINGCAUTIONREMOVINGINSTALLINGNOTESSPECIAL TOOLTORQUE SPECIFICATIONSPECIAL TOOLTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONSPECIAL TOOLINSPECTWARNINGWARNINGCourtesy of MERCEDES-BENZ USA
Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
REMOVINGINSTALLING Remove/install
1 Move complete wheels of front axle into straight-ahead position
2 Disconnect ground line at battery Engine 276.8 in model 238 with code M005 (4MATIC) AR54.10-P-0003LWO
  Notes on battery   AH54.10-P-0001-01A
    Engine 276.8 in model 213 with code M005 (4MATIC) AR54.10-P-0003LW
3 Fix steering wheel in position using the holding device NOTES
Do not turn steering wheel when steering coupling is removed.
Otherwise the clock spring contact will be destroyed.

    SPECIAL TOOL Retainer device Fig 4
4 Remove left catalytic converter   AR49.10-P-5502MND
5 Remove steering coupling from steering shaft Engine 276.8 in model 213 with code M005 (4MATIC)
except code 700 (Technology Local Content China)
Engine 276.8 in model 238 with code M005 (4MATIC)
AR46.10-P-8000-01LW
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
    Engine 276.8 in model 213 with code 700 (Technology Local Content China) with code M005 (4MATIC) AR46.10-P-8000-01LWA
    TORQUE SPECIFICATION Engine 276.8 in model 213 with code 700 (Technology Local Content China) with code M005 (4MATIC) Self-locking bolt, steering coupling to lower steering shaft *BA46.10-P-1003-01N
    SPECIAL TOOL Engine mount wrench set Fig 2

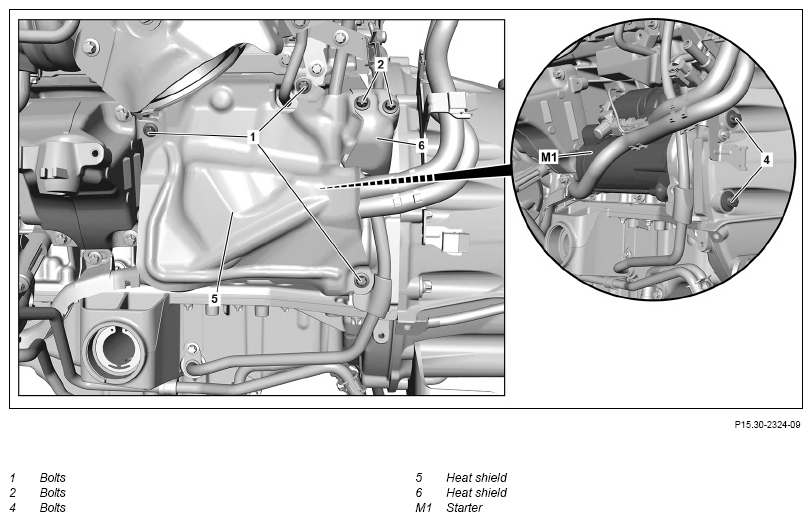

6 Unscrew screws/bolts (2) from heat shield (6) TORQUE SPECIFICATION Screw/bolt, heat shield of knock sensor to crankcase/engine support/bracket *BA15.10-P-1002-02B
7 Remove heat shield (6) downward
8.1 Unscrew screws/bolts (1) from heat shield (5) Engine 276.823 in model 213, 238 with code M005 (4MATIC)
    TORQUE SPECIFICATION Bolt/nut for shield attachment *BA09.40-P-1011-01W
8.2 Unscrew screws/bolts (12) from heat shield (16) Engine 276.853 in model 213 with code M005 (4MATIC)
    TORQUE SPECIFICATION Bolt/nut for shield attachment *BA09.40-P-1011-01W
9.1 Remove heat shield (5) downward Engine 276.823 in model 213, 238 with code M005 (4MATIC)
9.2 Unclip heat shield (16) from clamp (17) and remove downwards Engine 276.853 in model 213 with code M005 (4MATIC)
10 Detach wiring harness at starter (M1)   AR15.30-P-7100-03MND
    TORQUE SPECIFICATION Nut, connection for terminal designation 50 *BA15.30-P-1002-01J
    TORQUE SPECIFICATION Nut, connection for terminal designation 30 *BA15.30-P-1001-01J
11 Unscrew screws/bolts (4) and remove starter (M1) downwards TORQUE SPECIFICATION Bolt, starter to crankcase/transmission *BA15.30-P-1003-01J
12 Remove the charge air cooler and place with attached coolant line to one side   AR09.41-P-6817MND
13 Turn engine at the center bolt of crankshaft in direction of engine rotation and check the starter ring gear on clutch plate for wear and damage SPECIAL TOOL Socket wrench bit
If wear or damage present

Replace drive plate.
Fig 3
      AR03.30-P-8003MND
14 Install in the reverse order
INSPECT Check
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
15 Perform an engine test run, checking for proper operation of starter (M1)
TURBOCHARGER

Number Designation Engine 276.8
BA09.40-P-1011-01W Bolt/nut for shield attachment M6 Nm 9
KNOCK SENSORS

Number Designation Engine 276
BA15.10-P-1002-02B Screw/bolt, heat shield of knock sensor to crankcase/engine support/bracket Nm 9
STARTER

Number Designation Engine 276
BA15.30-P-1001-01J Nut, connection for terminal designation 30 Nm 15
STARTER

Number Designation Engine 276
BA15.30-P-1002-01J Nut, connection for terminal designation 50 Nm 6
STARTER

Number Designation Engine 276
BA15.30-P-1003-01J Bolt, starter to crankcase/transmission Nm 40
STEERING SHAFT

Number Designation Model 213
BA46.10-P-1003-01N Self-locking bolt, steering coupling to lower steering shaft Stage 1 Nm 25
Stage 2 ∠° 90
Fig 2: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G13744895Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Socket Wrench Bit (001 589 65 09 00)
G13744896Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Retainer Device (129 589 01 21 00)
G13744897Courtesy of MERCEDES-BENZ USA
