Remove/Install Automatic Transmission Auxiliary Oil Pump - Ar27.57-D-0652TSR

Transmission 722.9 in model 907

Modification notes

11.09.2018

Method adapted

Operation steps 8, 13

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
2	Remove lower engine compartment paneling.	Installation: Install engine compartment lining at bottom only after the leak test of the auxiliary oil pump (1) has been carried out.	AR61.20-D-1105TS
3	Remove underbody paneling.	If installed. Installation: Install underfloor paneling only after leak testing the auxiliary oil pump (1).	AR61.30-D-1001TS
4	Clean oil pan of automatic transmission and surrounding area thoroughly.	Cleanliness must be ensured when performing work on the automatic transmission. Otherwise, even the smallest foreign particles in the hydraulic components of the automatic transmission can lead to malfunctions or total failure of the automatic transmission.
		Use lint-free cleaning cloths when cleaning. Chamois leathers are the most suitable. Assembly cleaner	*BR00.45-Z-1028-04A
5	Drain fluid from transmission.	After loosening of the overflow pipe, it is imperative to remove oil pan and install overflow pipe again at the oil pan. Otherwise the transmission may be damaged. Only drain transmission oil from oil pan. Collect escaping transmission oil to determine quantity of transmission oil. Commercially available devices/tools  Collection bowl	AR27.00-D-0200-01TS
		Drift	Fig 1

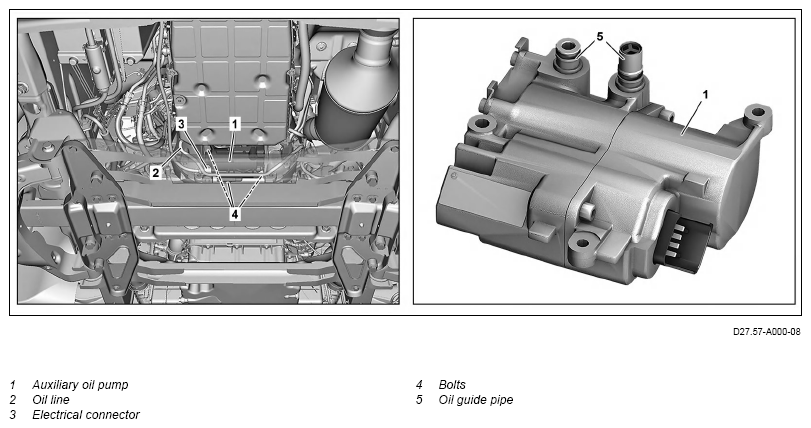

6	Remove oil line (2) on left of automatic transmission. Notes on threaded connections fastened using a tightening angle-based tightening process	Seal connections. Collect escaping transmission oil. Commercially available devices/tools  Collection bowl Bolt, oil line to transmission housing Bolt, dual clamp to oil line Record plug	AR27.10-D-0502-01TS
			AH00.00-P-0020-01A
			*BA27.55-N-1002-01I
			*BA27.55-N-1004-01I
			Fig 2
7	Disconnect electrical connector (3).
8	Support the automatic transmission. 000 588 11 62 00 Major assembly mount 000 588 10 62 00 Support plate
			WS01.00-P-0092B
			WS26.00-P-3309B
9	Remove rear engine mount from automatic transmission.	Screw/bolt, rear engine mount to transmission	*BA22.10-N-1001-01TSR
10	Remove propeller shaft from flange at automatic transmission.	Hang propeller shaft to one side.	AR41.10-D-0050TS
11	Lift automatic transmission carefully.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate	Position entire surface of mounting plate at oil pan of automatic transmission. Otherwise, the oil pan of the automatic transmission or the component parts underneath it may be damaged.	WS26.00-P-3309B
12	Remove screws/bolts (4).	Screw/bolt, auxiliary oil pump to transmission housing	*BA27.55-N-1009-01I
13	Remove auxiliary oil pump (1).	Seal connections. Collect escaping transmission oil. Commercially available devices/tools  Collection bowl : Replace plain couplers (5). Record plug	Fig 2
14	Install in the reverse order.
15	Fill automatic transmission with oil.	The function and leak tightness of the automatic transmission are also checked here	AR27.00-D-0270TSR
	Check
16	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Check auxiliary oil pump (1) for leak tightness with engine running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Notes on evaluating leakages	Visual inspection only.	AH00.00-N-0011-01A Engine mounts, engine supports

Number	Designation		Engine 642 in model 907	Engine 651 in model 907
BA22.10-N-1001-01TSR	Screw/bolt, rear engine mount to transmission	Nm	40	40

TRANSMISSION OIL COOLING

Number	Designation				Transmission 722.9
BA27.55-N-1002-01I	Bolt, oil line to transmission housing	Banjo bolt	Stage 1	Nm	5
			Stage 2	∠°	90
		Hexalobular bolt		Nm	12

TRANSMISSION OIL COOLING

Number	Designation		Transmission 722.9
BA27.55-N-1004-01I	Bolt, dual clamp to oil line	Nm	8

TRANSMISSION OIL COOLING

Number	Designation		Transmission 722.9
BA27.55-N-1009-01I	Screw/bolt, auxiliary oil pump to transmission housing	Nm	8

Fig 1: Drift (722 589 03 15 00)

Fig 2: Record Plug (129 589 00 91 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
