Remove/Install Lines At Automatic Transmission - Ar27.10-D-0502-01TS
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A |
Transmission 722.9 in model 907
| Number | Designation | Transmission 722.9 | |||
|---|---|---|---|---|---|
| BA27.55-N-1002-01I | Bolt, oil line to transmission housing | Banjo bolt | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | |||
| Hexalobular bolt | Nm | 12 | |||
| Number | Designation | Transmission 722.9 | |
|---|---|---|---|
| BA27.55-N-1004-01I | Bolt, dual clamp to oil line | Nm | 8 |

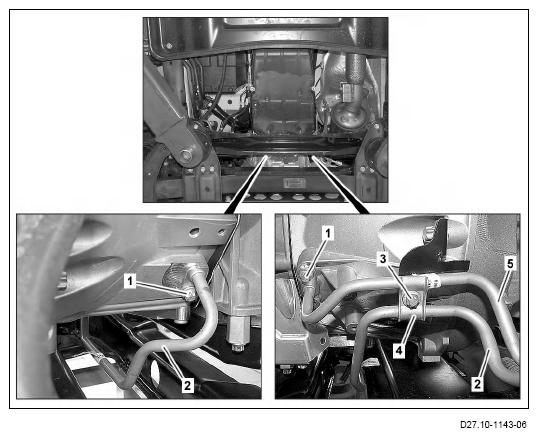

- Remove bolt (3) and remove holder (4)
- Remove bolt (1)
- Remove oil lines (2, 5) from automatic transmission.
Collect escaping transmission oil.
Collection bowl
- Seal openings on automatic transmission and oil lines (2, 5) using suitable
stop plugs.
- Install in the reverse order.
