Remove/Install Propeller Shaft - Ar41.10-D-0050TS
Model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on installing propeller shaft | AH41.10-N-0001-01TS | ||
| Remove/install | |||
| Raise vehicle. | AR00.60-D-1000-04TS | ||
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 2 | Remove underfloor panels. | Model 907 with code XM1 (Noise reduction) | AR61.30-D-1001TS |
| 3 | Remove check straps. | AR41.10-D-0050-01TS | |
| *BA41.10-N-1004-01TS | |||
| 4 | Remove mounting plate and cap of crash box. | Model 907 with code A4M (4MATIC) | AR41.10-D-0005TSX |

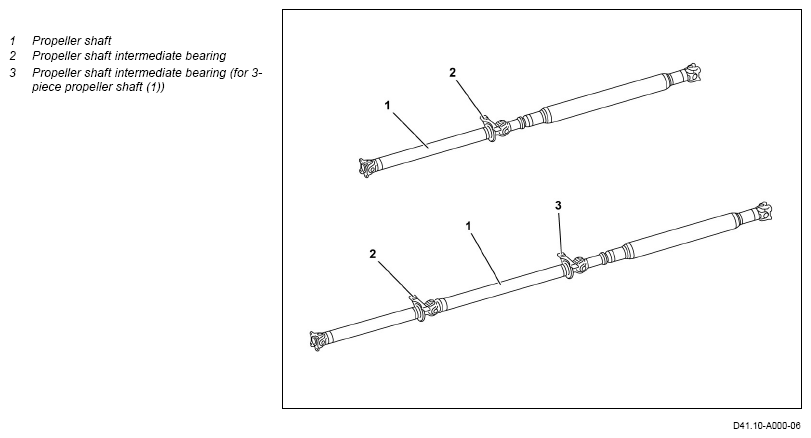

| 5 | Remove front propeller shaft intermediate bearing (2) from vehicle floor. | Model 907 with code ZG3 (Engageable all-wheel drive with gear reduction) Installation: Check for correct positioning of spacer disks. |
|
| *BA41.40-N-1001-02TS | |||
| 6 | Remove rear propeller shaft intermediate bearing (3) from vehicle floor. | If a 3-piece propeller shaft (1) is installed. Model 907 with code ZG3 (Engageable all-wheel drive with gear reduction) Installation: Check for correct positioning of spacer disks. |
|
| *BA41.40-N-1001-02TS | |||

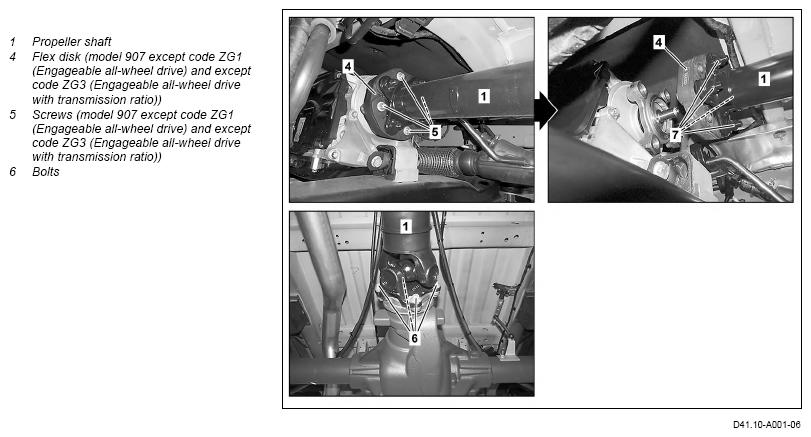

| 7.1 | Counterhold propeller shaft (1), remove screws (5) and remove propeller shaft (1) with flex disk (4) from output flange of transmission. | Model 907 except code ZG1 (Engageable all-wheel drive) except code ZG3 (Engageable all-wheel drive with gear reduction) If flex disk (4) is installed. If a 3-piece propeller shaft is installed, the aid of two helpers is required. |
|
If corresponding findings are present, ↓ Replace flex disk (4). |
*BA41.10-N-1003-01TS | ||
| AR41.10-D-0040TS | |||
| 7.2 | Counterhold propeller shaft (1), remove screws and remove propeller shaft (1) from output flange of transmission. | Model 907 except code ZG1 (Engageable all-wheel drive) except code ZG3 (Engageable all-wheel drive with gear reduction) If flex disk (4) is not installed. |
|
except code G42 (7G-TRONIC PLUS) except code G43 (9G-TRONIC) except code ZG1 (Engageable all-wheel drive) except code ZG3 (Engageable all-wheel drive with gear reduction) Model 907 with code G42 (7G-TRONIC PLUS) except code G43 (9G-TRONIC) except code ZG1 (Engageable all-wheel drive) except code ZG3 (Engageable all-wheel drive with gear reduction) Screw, propeller shaft to output flange of transmission/transfer case |
*BA41.10-N-1001-01TS | ||
| 7.3 | Counterhold propeller shaft (1), remove screws and remove propeller shaft (1) from output flange of transfer case. | Model 907 with code ZG1 (Engageable all-wheel drive) Model 907 with code ZG3 (Engageable all-wheel drive with gear reduction) |
|
with code ZG1 (Engageable all-wheel drive) except code G43 (9G-TRONIC) Model 907 with code G42 (7G-TRONIC PLUS) with code ZG3 (Engageable all-wheel drive with gear reduction) except code G43 (9G-TRONIC) Model 907 with code ZG1 (Engageable all-wheel drive) except code G42 (7G-TRONIC PLUS) except code G43 (9G-TRONIC) Model 907 with code ZG3 (Engageable all-wheel drive with gear reduction) except code G42 (7G-TRONIC PLUS) except code G43 (9G-TRONIC) Screw, propeller shaft to output flange of _ transmission/transfer case |
*BA41.10-N-1001-01TS | ||
| 8 | Counterhold propeller shaft (1), remove screws (6) from drive flange of rear axle differential and remove propeller shaft (1). | If a 3-piece propeller shaft is installed, the aid of two helpers is required. |
*BA41.10-N-1002-01TS |
| 9 | Install in the reverse order. |
| Number | Designation | Model 907 except code G42 | Model 907 with code G42 | |||
|---|---|---|---|---|---|---|
| BA41.10-N-1001-01TS | Screw, propeller shaft to output flange of transmission/transfer case | M10x1 | Stage 1 | Nm | 40 | |
| Stage 2 | ∠° | 60 | - | |||
| M12x1.5 | Stage 1 | Nm | 40 | 66 | ||
| Stage 2 | ∠° | 60 | 55 | |||
| Number | Designation | Model 907 with code A4M (4MATIC) and with code G43 (9G-TRONIC) | Model 907 except code G42 | |||
|---|---|---|---|---|---|---|
| BA41.10-N-1002-01TS | Screw, propeller shaft to rear axle differential drive flange | M10x1 | Stage 1 | Nm | 40 | 40 |
| Stage 2 | 60 | 60 1 | ||||
Propeller shaft
| Number | Designation | Model 907 with code G42 | ||
|---|---|---|---|---|
| BA41.10-N-1002-01TS | Screw, propeller shaft to M10x1 rear axle differential drive flange | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 60 | ||
| Number | Designation | Model 907 with code A4M (4MATIC) and with code G43 (9G-TRONIC) | Model 907 with code G42 | |||
|---|---|---|---|---|---|---|
| BA41.10-N-1003-01TS | Screw, flex disk to transmission output flange | M10x1 | Stage 1 | Nm | - | - |
| Stage 2 | ∠° | - | - | |||
| M12x1.5 | Stage 1 | Nm | 66 | 66 | ||
| Stage 2 | ∠° | 55 | 55 | |||
| Number | Designation | Model 907 with code A4M (4MATIC) and with code G43 (9G-TRONIC) | Model 907 except code G42 | |
|---|---|---|---|---|
| BA41.10-N-1004-01TS | Bolt, check strap to frame | Nm | 70 | 70 |
| Number | Designation | Model 907 with code G42 | |
|---|---|---|---|
| BA41.10-N-1004-01TS | Bolt, check strap to frame | Nm | 70 |
| Number | Designation | Model 907 | ||
|---|---|---|---|---|
| BA41.40-N-1001-02TS | Bolt, propeller shaft intermediate bearing to frame | M12x1.5 | Nm | 135 |
