Remove/Install Underbody Paneling - Ar61.30-D-1001TS

Model 907

MODIFICATION NOTES

12.07.2019	Method extended	Operation steps 1, 2	AR61.30-D-1001-01TS
12.07.2019	Method extended	Operation step 2	AR61.30-D-1001-02TS

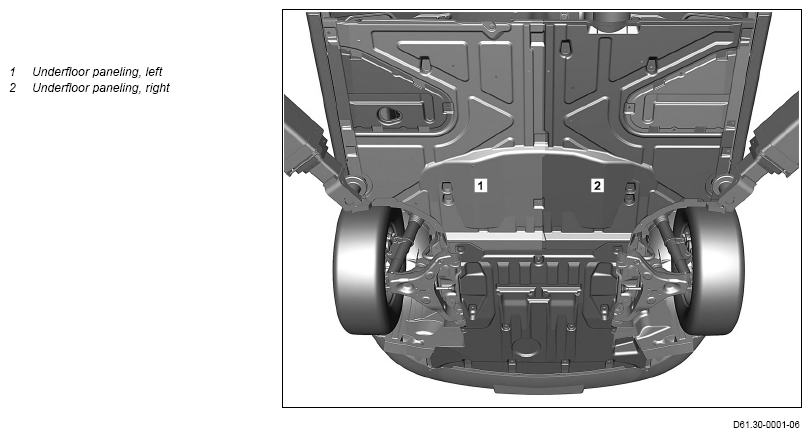

Shown on model 907

G13788064

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
	Remove/install
1	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
2	Remove left underfloor paneling (1).		AR61.30-D-1001-02TS
3	Remove right underfloor paneling (2).		AR61.30-D-1001-01TS
4	Install in the reverse order.
