Remove/Install Automatic Transmission Auxiliary Oil Pump - Ar27.57-D-0652TSC

Transmission 725.0 in model 907

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install

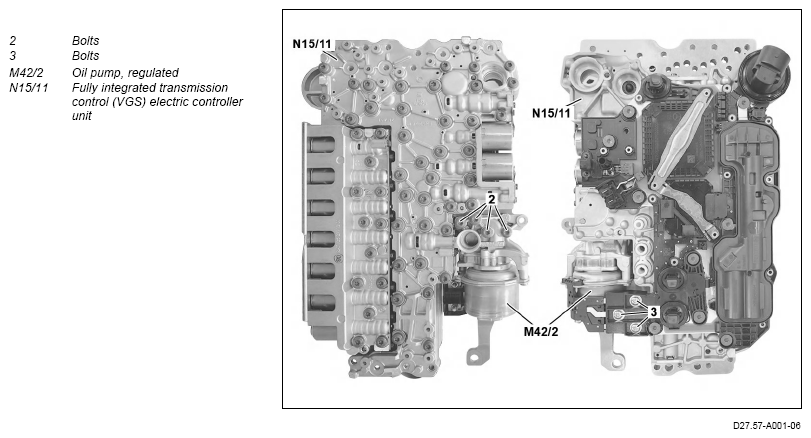

1	Remove fully integrated transmission control (VGS) electric controller unit (N15/11).		AR27.19-D-0200TSC
2	Unscrew bolts (3).	Screw/bolt, electrical connection for auxiliary oil pump to control unit	*BA27.19-P-1004-01D
3	Remove screws (2) and remove controlled oil pump (M42/2).	Installation: Replace screw/bolts (2). Screw/bolt, auxiliary oil pump to shift valve body cover	*BA27.19-P-1002-01D
4	Install in the reverse order

ELECTROHYDRAULIC CONTROLLER UNIT

Number	Designation			Transmission 725.0
BA27.19-P-1002-01D	Screw/bolt, auxiliary oil pump to shift valve body cover	Stage 1	Nm	4
		Stage 2	∠°	90

ELECTROHYDRAULIC CONTROLLER UNIT

Number	Designation		Transmission 725.0
BA27.19-P-1004-01D	Screw/bolt, electrical connection for auxiliary oil pump to control unit	Nm	5
