Fill The Automatic Transmission With OL - Ar27.00-D-0270TSR

Transmission 722.9 in model 907

MODIFICATION NOTES

08.11.2018

Fluid transmission ATF

Transmission 722.9

IBF27.00-N-1001-01A

Warning	Danger of accidents if the engine starts up automatically while the engine is running. Risk of injury from bruises and burns when intervening during the starting process or while the engine is running.	Secure the vehicle against starting by itself. Wear closed, close-fitting work clothing. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
Attention	Danger of injury to skin and eyes from handling gear fluid. Health hazard from swallowing transmission fluid.	Wear protective gloves, protective clothing and protective goggles. Do not put fluid in drinking containers.	AS00.40-Z-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Fill in the gearbox
1	Raise the vehicle.		AR00.60-D-1000-04TS
	Instructions for lifting and jacking up.	Raise the vehicle in a horizontal and longitudinal direction. Otherwise measurement errors can occur, which can result in malfunctions and damage to the gear unit.	AH00.60-N-0100-01TS
2	Remove the lower engine compartment trim.	When installed.	AR61.20-D-1105TS
3	Remove underbody paneling.	When installed.	AR61.30-D-1001TS
4	Unscrew the drain plug (3).	Catch leaking gear fluid Commercially available devices / tools Drip tray

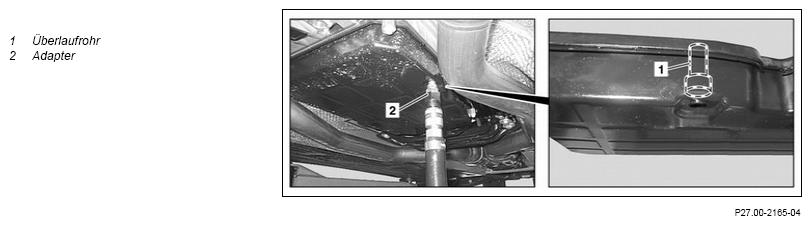

5	Screw in the adapter (2) of the oil dispenser. 000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
6	Connect the oil dispenser. 000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
7	Pump 6 l Fluid into the automatic transmission. Fluid transmission lead ATF (specification 236.15)	The operating fluid regulations must be observed. Otherwise damage to the automatic transmission can occur. otherwise the automatic transmission may be damaged.	BB00.40-P-0236-15A
8	Start the motor.
9	Query transmission air temperature with diagnosis system.	The engine must run at idle speed. When checking and correcting the transmission exposure, the transmission exposure temperatures must be strictly adhered to.	AD00.00-D-2000-06TS
10.1	Transmission oil temperature 90 °C or 194 °F bring.	If the oil cooler of the automatic transmission has been removed or replaced. The automatic transmission in selector lever position; P; leave it in place and increase the engine speed to 2500 rpm and maintain it. The automatic transmission oil cooler thermostat opens at 90 ° C or 194 ° F and the automatic transmission oil cooler is filled and vented.
10.2	Bring transmission blowing temperature into temperature range 40 to 45 ° C or 104 to 113 ° F.	If the oil cooler of the automatic transmission has not been removed or replaced. The automatic transmission in selector lever position; P; leave it in place and increase the engine speed to 2500 rpm and maintain it.
11	Stop engine.
12	Query transmission air temperature with diagnosis system.	Transmission blowing temperature must be between 40 to 45 ° C or 104 to 113 ° F. If the transmission blowing temperature is not between 40 to 45 ° C or 104 to 113 ° F, ↓ Warm up or cool down the gear unit.	AD00.00-D-2000-06TS
13	Start the engine and move it to selector lever position; P; let run.
14.1	Top up with approx. 4 liters of gear oil. 000 588 06 82 00 Oil dispenser	According to automatic transmission resp. Torque converter exchange.	WS18.00-P-0026B
		J Fluid transmission ATF	*BF27.00-N-1001-01A
14.2	Top up approx. 2 liters of gear oil. 000 588 06 82 00 Oil dispenser	If the torque converter has not been drained.	WS18.00-P-0026B
		Fluid transmission ATF	*BF27.00-N-1001-01A
	Correct transmission oil level
15	The speed steps "P";, "R";, "N"; "D"; Switch through several times with the brake applied and the engine idling.
16	Motor in selector lever position "P"; let it run at idle speed.
17	Query transmission air temperature with diagnosis system.	Transmission blowing temperature must be between 40 to 45 ° C or 104 to 113 ° F. Otherwise too much gear oil will be drained off at higher gear temperatures.	AD00.00-D-2000-06TS
18	Remove the adapter (2).

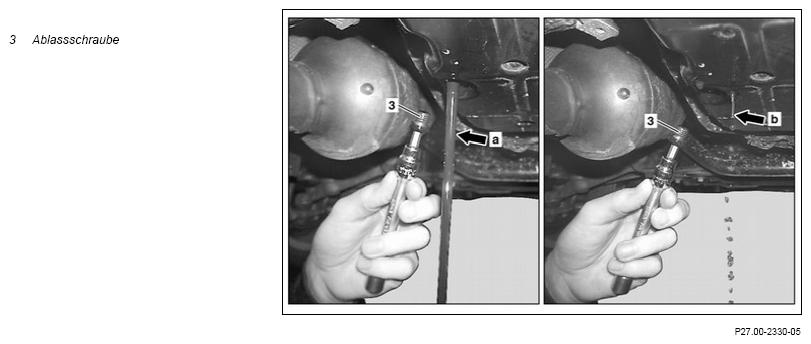

19	If the oil fill quantity is too large and at the beginning of the oil setting (arrow a), allow the constant oil flow to run off at the specified transmission oil temperature until the correct oil fill quantity (arrow b) has been reached after the overfill quantity has run out.	The engine must run at idle speed and the transmission air temperature must not be above the specified transmission air temperature. Otherwise too much gear oil will be drained off at a higher gear oil temperature. If the oil flow is not constant at the beginning of the oil setting, ↓ Install the adapter (2), top up the transmission bl and adjust the transmission deficit again (from step 15).
20	Screw in the drain plug (3).	Renew the sealing ring. Drain plug on oil pan	*BA27.10-N-1005-04B
Warning 21	Danger of accidents if the engine starts up automatically while the engine is running. Risk of injury from bruises and burns when intervening during the starting process or while the engine is running. Check the automatic transmission for function and leaks with the engine running.	Secure the vehicle against starting by itself. Wear closed, close-fitting work clothing. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
22	Install underbody trim.	When installed.	AR61.30-D-1001TS
23	Install lower engine compartment trim.	When installed.	AR61.20-D-1105TS
24	Stop engine.

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation		Transmission 722.9
BA27.10-N-1005-04B	Drain plug on oil pan	Nm	22

AUTOMATIC DRIVE

Number	designation				Transmission 722.9
BF27.00-N-1001-01A	Fluid transmission ATF	Full amount refilling		Liter	10,0
Full amount of oil change			Liter	9,0
Full amount of oil change with converter gear			Liter	9,0
Full amount of oil change without converter gear			Liter	5,5
					BB00.40-P-0236-15A
					-
