Remove/Install Rear Window - AR67.20-P-5145LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.2

Model 213.2

Model 253, 293

Shown on MODEL 205.2

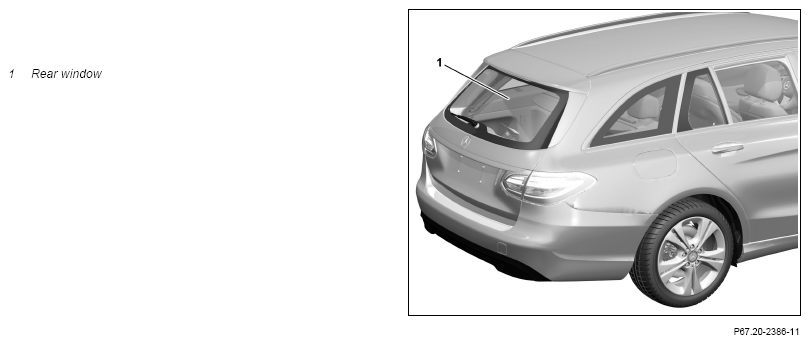

Fig 1: Rear Window Components Location - Model 253 (Shown On Model 205.2)
G14471455WARNINGREMOVINGSPECIAL TOOLNOTESIMPORTANTIMPORTANTWARNINGIMPORTANTINSTALLINGNOTESIMPORTANTIMPORTANTNOTESIMPORTANTIMPORTANTIMPORTANTSPECIAL TOOLNOTESIMPORTANTIMPORTANTSPECIAL TOOLIMPORTANTIMPORTANTCLEANCourtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
Topical note  Notes on removal/installation of windows   AH67.10-P-1000-02RT
Topical note  Notes on removal/installation of rear window   AH67.20-P-2000-02A
  Notes on HANDS-FREE ACCESS   AH80.61-P-0001-01A
REMOVING Remove
1 Prepare adhesive cartridge.   AR67.00-P-0001-02LWE
    SPECIAL TOOL Adapter Fig 2
2 Open side window in driver door. NOTES The side window in the driver door must be open during the curing time of the adhesive material.
This prevents the rear window (1) from being pressed outwards by the air pressure when the door are closed.
3.1 Remove roof spoiler with integrated brake lamp. Model 205.2, 213.2, 253.1/9, 293
Model 205.2, 253.1/9, 293		 AR82.10-P-5375LWS
    Model 213.2 AR82.10-P-5376LWT
3.2 Remove additional brake lamp. Model 253.3 AR82.10-P-5376LWX
4 Remove liftgate wiper motor. Model 205.2, 213.2, 253.1/9, 293 AR82.30-P-6550LW
5 Disconnect all electrical connectors on rear window (1). IMPORTANT The number of electrical connectors varies according to vehicle equipment.
6 Fix all electrical lines connected to rear Notice1 window (1) to inside of rear window (1) with suitable tape. IMPORTANT The number of electrical lines varies depending on the vehicle equipment.
7 Protect areas around rear window (1) against damage with suitable tape.
WARNING Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows Wear protective gloves and safety glasses. AS67.00-Z-0004-01A
8 Cut out rear window (1) with window removal tool and remove. IMPORTANT Helper required. AR67.00-P-0001-01LWE
INSTALLING Install
9 Prepare liftgate for installation.   AR67.20-P-5145-08LWE
  General notes about painting the body flange in the glazing area   AH98.00-P-9408-06A
    NOTES The liftgate must be free of dust and grease. Otherwise the adhesive force of the adhesive material starts to decrease.
IMPORTANT Use only primer filler and primer sticks approved by Daimler AG: https://xentryportaLi.daimler.com
IMPORTANT Use only repair kit specified in EPC. Primer stick		 *BR00.45-Z-1012-07A
10 Prepare rear window (1) for installation. NOTES The bonding area on the rear window (1) must be absolutely free of dust and grease. Otherwise the adhesive force of the adhesive material starts to decrease.
IMPORTANT Use only repair kit specified in EPC.		 AR67.20-P-5145-03LWE
11 Replace rubber window spacers. IMPORTANT Remove protective foil from rubber window spacers only on one side.
12 Align rear window (1) in liftgate, attach multiple tape strips for later positioning, cut and remove rear window (1) again. IMPORTANT Helper required.
Model 293Liftgate to rear window, side		 *BE60.00-P-1020-01OA
    Model 293Liftgate to rear window, bottom *BE60.00-P-1019-01OA
    Model 205.2Liftgate to rear window *BE60.00-P-1025-01BB
    Model 253.1/9Liftgate to rear window, bottom *BE60.00-P-1017-01FA
    Model 253.1/9Liftgate to rear window, side *BE60.00-P-1018-01FA
    Model 213.2Liftgate to rear window, bottom *BE67.20-P-1003-01O
    Model 213.2Liftgate to rear window, side *BE67.20-P-1004-01O
    SPECIAL TOOL Feeler gauge Fig 3
13 Detach protective foil from the rubber window spacers.
14 Apply adhesive material. NOTES Install rear window (1) within 10 min after applying adhesive material.
Otherwise the adhesive force of the adhesive material starts to decrease.
IMPORTANT Uniformly apply adhesive bead at a height of approx. 13 mm.
IMPORTANT Use only repair kit specified in EPC.		 AR67.20-P-3000-05LWE
    SPECIAL TOOL Adapter Fig 2
15 Align rear window (1) in liftgate according to tape strips, firmly press on and fix in place with suitable tape. IMPORTANT Helper required.
IMPORTANT Observe manufacturer's specifications for curing time of adhesive material.
Perform following work only after curing time.
16 Connect all electrical connectors to rear window (1).
17 Install liftgate wiper motor. Model 205.2, 213.2, 253.1/9, 293 AR82.30-P-6550LW
18.1 Install roof spoiler with integrated brake lamp. Model 205.2, 213.2, 253.1/9, 293
Model 205.2, 253.1/9, 293		 AR82.10-P-5375LWS
    Model 213.2 AR82.10-P-5376LWT
18.2 Install additional brake lamp. Model 253.3 AR82.10-P-5376LWX
19 Close side window in driver's door.
20 Remove all tape from vehicle.
CLEAN Clean
21 Clean rear window (1), adjacent painted parts and vehicle interior.
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.1/9
BE60.00-P-1017-01FA Liftgate to rear window, bottom Dimension "V1" mm 2, 0 (±1)
    For picture, see   AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.1/9
BE60.00-P-1018-01FA Liftgate to rear window, side 1 Dimension "V2" mm 2, 5 (+1, 5/-1)
    For picture, see   AR60.00-P-0700-01LW
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1019-01OA Liftgate to rear window, bottom Dimension "N1" mm 3, 0 (±1, 5)
    -   -
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1020-01OA Liftgate to rear window, side Dimension "N2" mm 2, 5 (±1, 0)
    -   -
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1025-01BB Liftgate to rear window Dimension "V" mm 2, 5 (±1, 0)
    For picture, see   AR60.00-P-0700-01LW
REAR WINDOW

Number Designation Model 213.2
BE67.20-P-1003-01O Liftgate to rear window, bottom Dimension "V1" mm 2, 5 (±1, 0)
    For picture, see   AR60.00-P-0700-01LWE
REAR WINDOW

Number Designation Model 213.2
BE67.20-P-1004-01O Liftgate to rear window, side Dimension "V2" mm 3, 0 (±1, 0)
    For picture, see   AR60.00-P-0700-01LWE
Fig 2: Identifying Adapter (000 589 86 63 00)
G13659549Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Feeler Gauge (129 589 03 21 00)
G11129185Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1012-07A Primer stick A 000 986 27 50
