Replace Timing Chain - AR05.10-P-7601MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||
| 1 | Remove camshafts together with camshaft positioners. | AR05.20-P-6992MFC | |

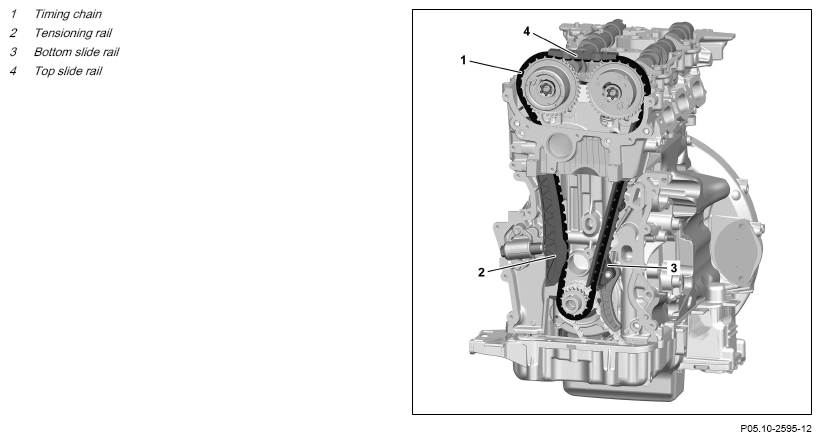

| 2 | Disconnect timing chain (1). | AR05.10-P-7601-01MRH | |
| Fig 3 | |||
| Check | |||
| 3 | Check tensioning rail (2) and slide rails (3, 4) for wear and damage. | ||
| 000 588 27 21 00 Endoscope | If problems exist: ↓ Replace corresponding components. |
WS01.00-P-0252B | |
| replace slide rails (3, 4) | AR05.10-P-8480MFC | ||
| Replace tensioning rail (2) | AR05.10-P-8127MFC | ||
| 4 | Check sprocket of crankshaft for wear and damage. | ||
| 000 588 27 21 00 Endoscope | If problems exist: ↓ Replace sprocket of crankshaft. |
WS01.00-P-0252B | |
| AR01.40-P-8002MFC | |||
| 5 | Check camshaft positioners for wear and damage. | If problems exist: ↓ Replace camshaft positioner. |
|
| Install | |||
| 6 | Draw in new timing chain (1). | AR05.10-P-7601-04MRH | |
| Fig 2 | |||
| 7 | Rivet new timing chain (1). | AR05.10-P-7601-02MRH | |
| Fig 3 | |||
| 8 | Install camshafts with camshaft positioners. | AR05.20-P-6992MFC |
