Remove/Install Camshafts - AR05.20-P-6992MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247

MODIFICATION NOTES

27.04.2022

Document completely revised.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove camshaft positioners (1).		AR05.20-P-7204MFC
2	Remove hold-down tools (2n) of exhaust camshaft (2a) and intake camshaft (2e).	Install hold-down tools (2n) again in the same position (mark if necessary). Otherwise, the exhaust camshaft (2a) and intake camshaft (2e) or the cylinder head will be damaged. Bolt for camshaft hold-down tool	*BA05.20-P-1001-02K

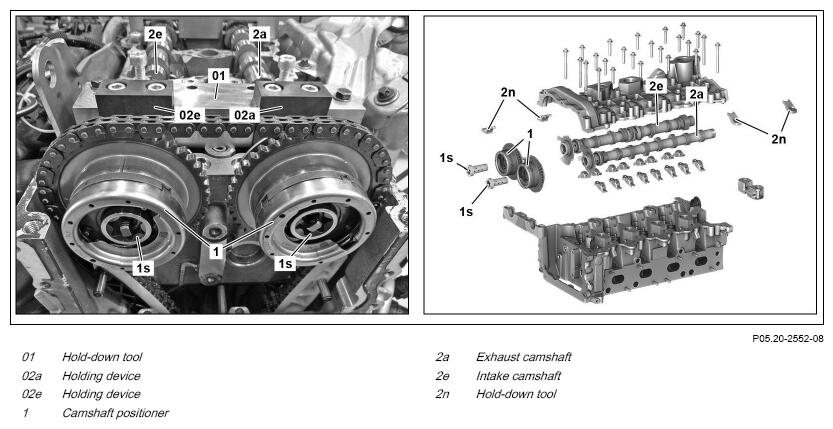

3	Remove hold-down tool (01) of exhaust camshaft (2a) and intake camshaft (2e) with holding devices (02a, 02e).	Holding device	Fig 1
4	Remove intake camshaft (2e). General information on checking camshafts and bearing points of camshafts		AH05.20-P-1000-09SZ

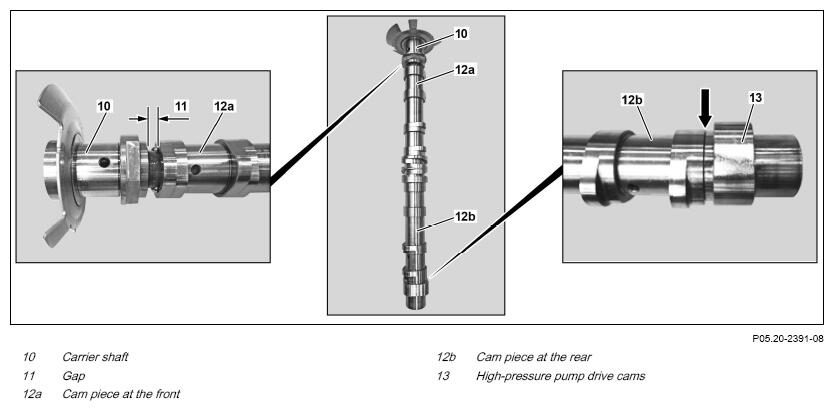

	Specified engine oils for Cars, Vans (service) - Overview	The cams on the intake camshaft (2e) must be pointing upright at an angle after inserting intake camshaft (2e) on cylinder 1. There is otherwise risk of breakage of the intake camshaft (2e) and exhaust camshaft (2a). Wet compensating elements and camshaft bearing points with engine oil. Ensure that the intake camshaft (2e) is installed in the full stroke position (picture). The full stroke position can be recognized by the 6.5 mm wide gap (11) between the carrier shaft (10) and the front cam piece (12a). There should be no gap (arrow) between the camshaft piece at the rear (12b) and the high-pressure pump drive cams (13). Adjust the camshaft piece at the front (12a) or the camshaft piece at the rear (12b) by hand if necessary.	BB00.40-P-0223-02A
5	Remove exhaust camshaft (2a). General information on checking camshafts and bearing points of camshafts		AH05.20-P-1000-09SZ
	Specified engine oils for Cars, Vans (service) - Overview	Cams of exhaust camshaft (2a) must point upwards at an angle after insertion of exhaust camshaft (2a) at cylinder 1 There is otherwise risk of breakage of the intake camshaft (2e) and exhaust camshaft (2a). Wet compensating elements, vacuum pump drive and camshaft bearing points with engine oil.	BB00.40-P-0223-02A
	Check
6	Check diameter of camshaft bearing journals for wear and replace intake camshaft (2e) or exhaust camshaft (2a) if necessary.	Diameter of camshaft fitted bearing journal	*BE05.20-P-1002-03E
7	Check intake camshaft (2e), exhaust camshaft (2a) and bearings in cylinder head as well as cylinder head cover for galling.	If there is a problem: ↓ Replace camshafts, cylinder head cover and cylinder head. Replace cylinder head	AR01.30-P-5800MFC
		Replace cylinder head cover	AR01.20-P-5014MFC
8	Install in the reverse order.

CHECK VALUES FOR CAMSHAFT BEARING

Number	Designation			Engine 260
BE05.20-P-1002-03E	Diameter of camshaft fitted bearing journal	Standard size	mm	31, 947...31, 963

CAMSHAFT, CAMSHAFT ADJUSTMENT

Number	Designation		Engine 260
BA05.20-P-1001-02K	Bolt for camshaft hold-down tool	Nm	28

Fig 1: Identifying Holding Device (270 589 01 61 00)

Courtesy of MERCEDES-BENZ USA
