Overview Of System Components For Driver Assistance Systems - GF54.00-P-9998RD
Model 172.4 up to model year 2017

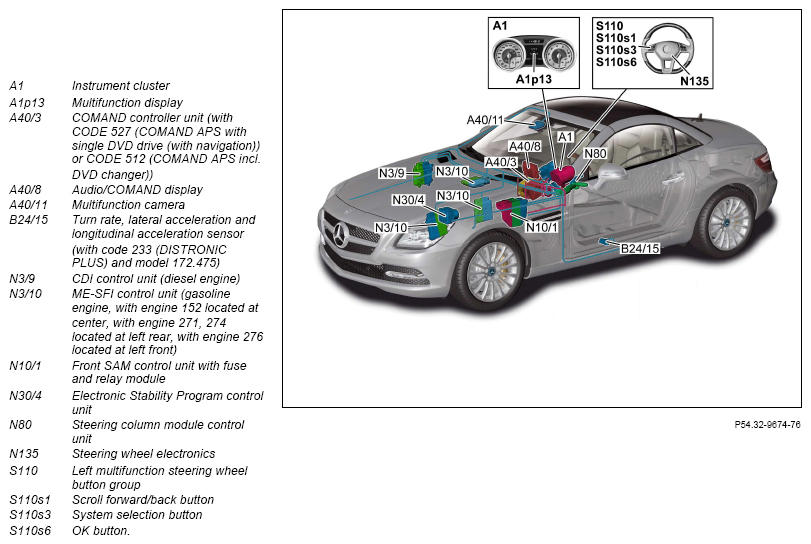

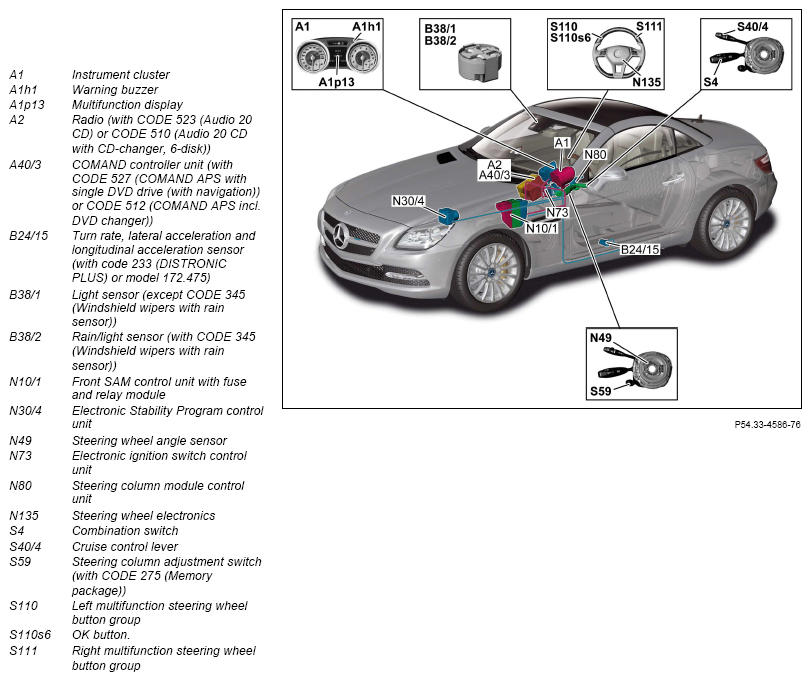

Attention assistance system

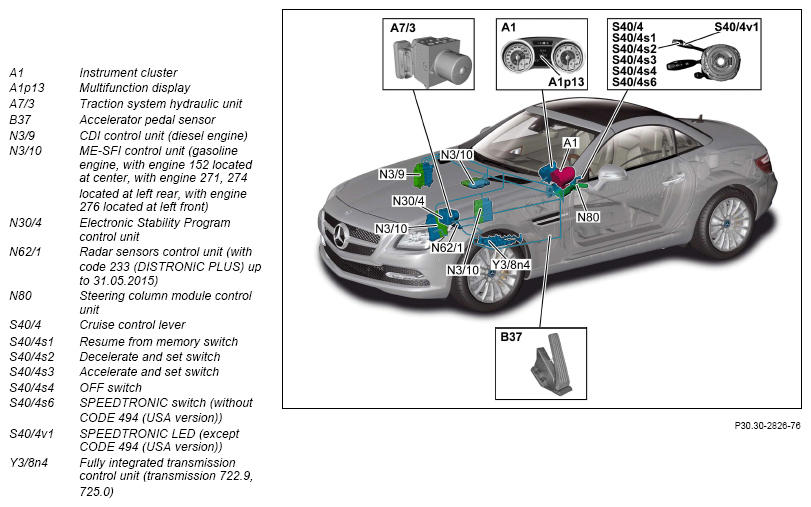

Cruise control

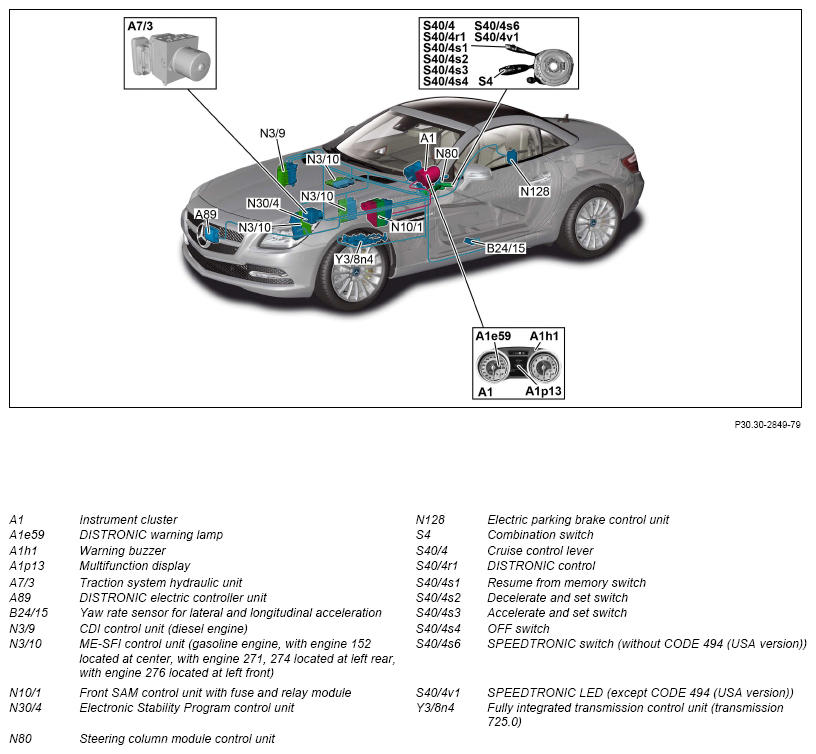

DISTRONIC PLUS (with code 239 (DISTRONIC PLUS)) as of 01.06.2015

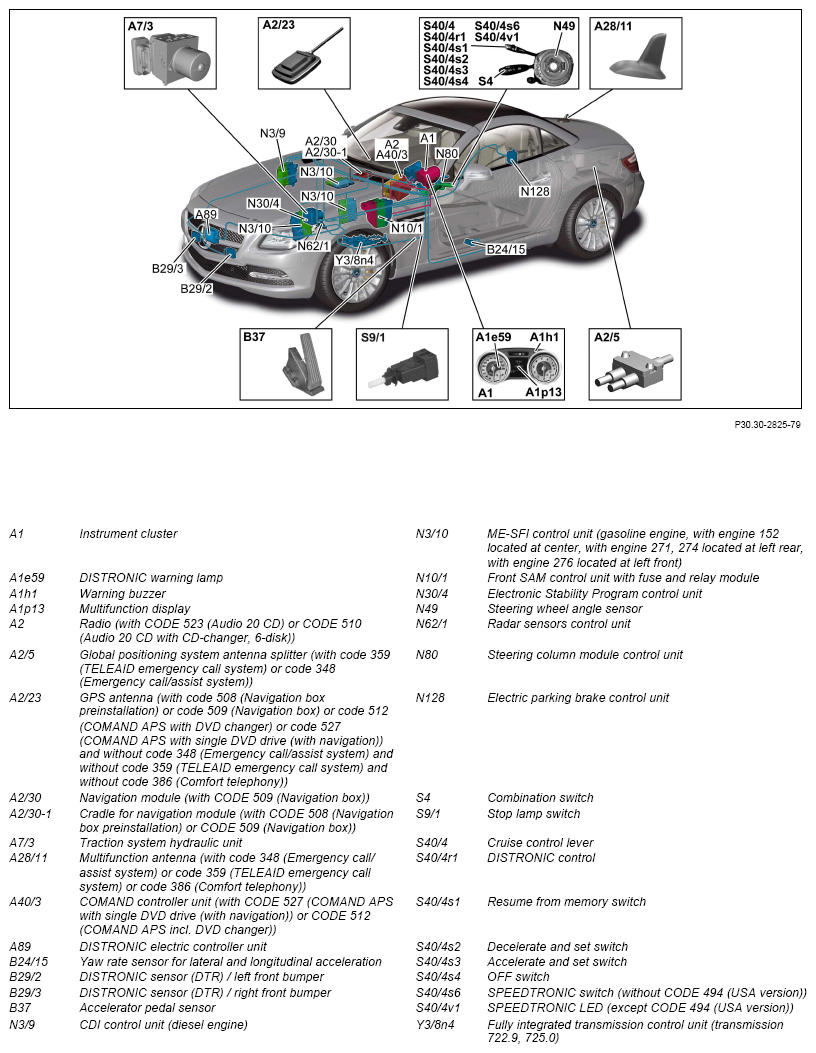

DISTRONIC PLUS incl. Brake Assist System PLUS (BAS PLUS) and PRE-SAFE® brake (with code 233 (DISTRONIC PLUS)) up to 31.05.2015

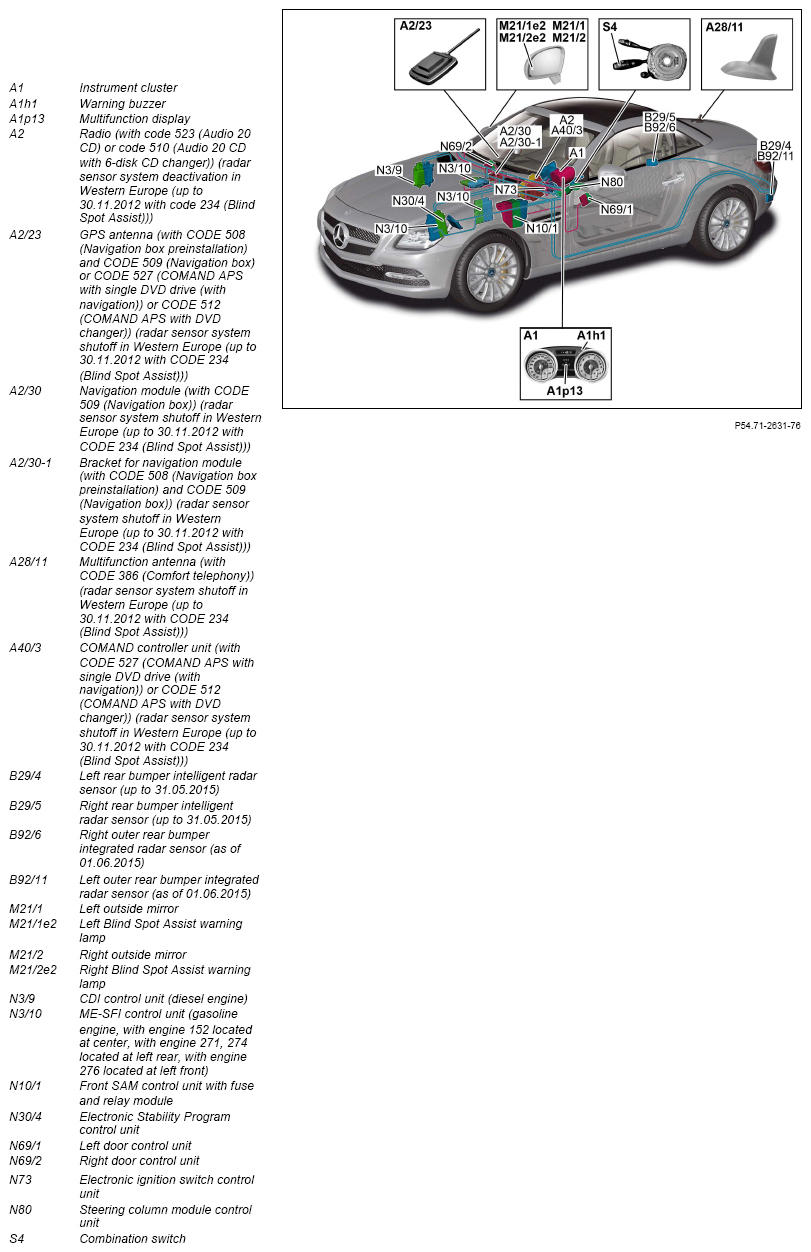

Blind Spot Assist (with CODE 234 (Blind Spot Assist))

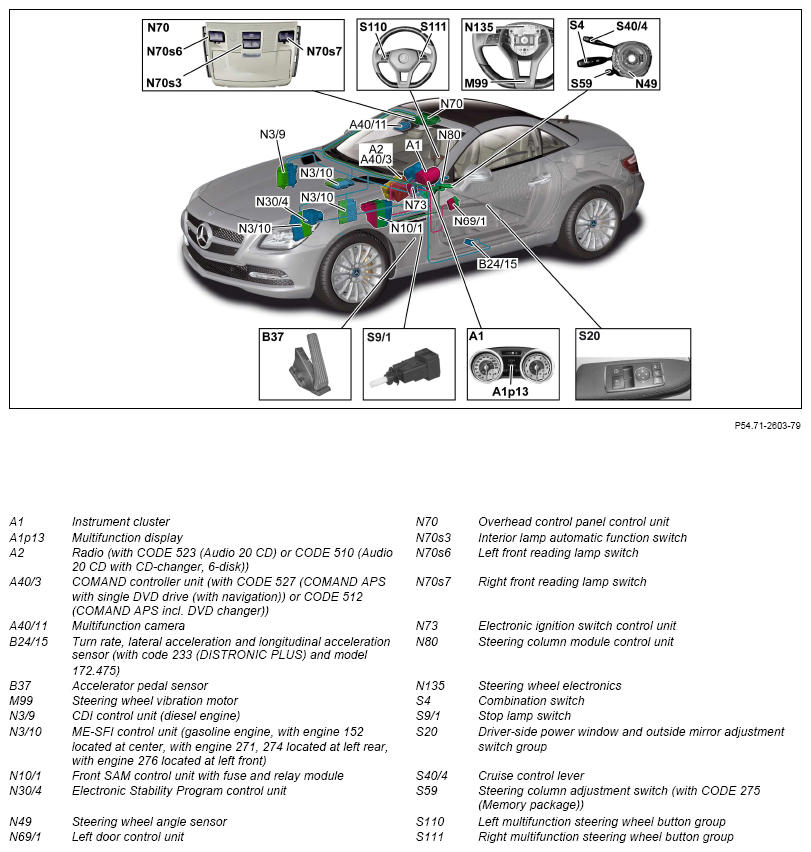

Lane Keeping Assist (as of 01.06.2012 with CODE 476 (Lane Keeping Assist))
Speed Limit Assist (with CODE 513 (Speed Limit Assist))

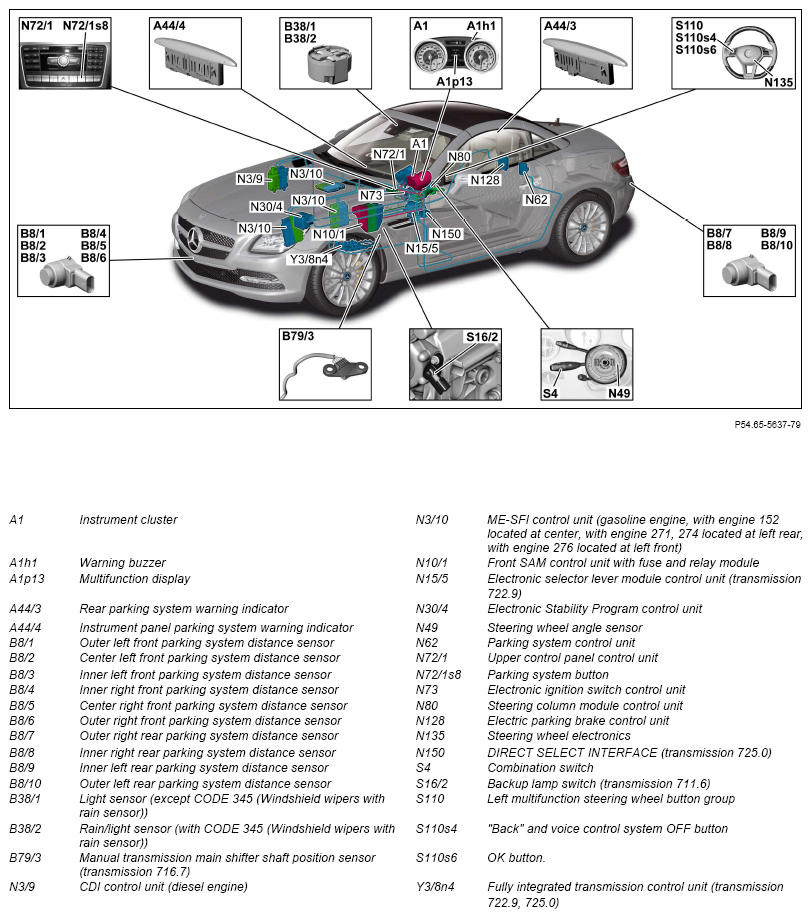

Parking system (with CODE 230 (Exclusive parking assist))
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for the radio | Model 172.4 up to model year 2017 with code 510 (Audio 20 CD with 6-disc CD changer) Model 172.4 up to model year 2017 with code 523 (Audio 20 CD) A2 | GF82.60-P-3122RD | |
| Cradle for navigation module, component description | Model 172.4 up to model year 2017 with code 508 (Navigation box preinstallation) Model 172.4 up to model year 2017 with code 509 (Navigation box) A2/30-1 |
GF82.85-P-3137RD | |
| Component description for COMMAND controller unit | Model 172.4 up to model year 2017 with code 512 (COMMAND APS with DVD changer) Model 172.4 up to model year 2017 with code 527 (COMMAND APS with single DVD drive (with navigation)) A40/3 | GF82.85-P-3136RD | |
| Component description for Audio/COMMAND display | A40/8 | GF54.30-P-6150RD | |
| Component description for multifunction camera | Model 172.4 up to model year 2017 with code 476 (Lane keeping assist) Model 172.4 up to model year 2017 with code 513 (Speed Limit Assist) A40/11 | GF54.21-P-3300RD | |
| Component description for DISTRONIC electric controller unit | Model 172.4 up to model year 2016 with code 233 (DISTRONIC PLUS) A89 | GF30.30-P-3213RD | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | Model 172.4 as of model year 2016 up to model year 2017 with code 239 (DISTRONIC PLUS) Model 172.4 up to model year 2016 with code 233 (DISTRONIC PLUS) B24/15 | GF42.45-P-4810RD | |
| Component description for bumper radar sensors | Model 172.4 up to model year 2017 with code 233 (DISTRONIC PLUS) B29/2, B29/3 | GF30.30-P-3302RD | |
| Component description for intelligent radar sensor control unit | Model 172.4 as of model year 2013 up to model year 2016 with code 234 (Blind Spot Monitoring) B29/4, B29/5 | GF30.30-P-3305RD | |
| Integrated radar sensor, component description | Model 172.4 as of model year 2016 up to model year 2017 with code 234 (Blind Spot Monitoring) B92/6, B92/11 | GF30.30-P-3313RDM | |
| Component description for CDI control unit | Model 172.4 with engine 651.9 up to model year 2017 N3/9 | GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 152.9 up to model year 2017 N3/10 | GF07.61-P-6000MMI | |
| Model 172.4 with engine 271.861 up to model year 2017 N3/10 | GF07.61-P-6000MGA | ||
| Model 172.4 with engine 274.9 up to model year 2017 N3/10 | GF07.61-P-6000MRE | ||
| Model 172.4 with engine 276.9 up to model year 2017 N3/10 | GF07.61-P-6000MMD | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for electronic selector lever module control unit | Model 172.4 with transmission 722.9 up to model year 2017 N15/5 | GF27.60-P-5163AHN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RD | |
| Parking system control unit component description | Model 172.4 up to model year 2017 with code 230 (Advanced Parking Guidance) N62 | GF54.65-P-5002RD | |
| Component description for radar sensors control unit | Model 172.4 up to model year 2016 with code 233 (DISTRONIC PLUS) N62/1 | GF30.30-P-3301RD | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RD | |
| DIRECT SELECT interface, component description | Model 172 with transmission 725.0 up to model year 2017 N150 | GF27.19-P-1300ANH | |
| Component description for fully integrated transmission control unit | Model 172.4 with transmission 722.9 up to model year 2017 Y38n4 | GF27.60-P-5165AHN | |
| Model 172 with transmission 725.0 up to model year 2017 Y38n4 | GF27.60-P-5165ANH | ||
| Table of contents for function description of driver assistance systems | GF54.00-P-0998RD |
