Remove/Install Side Paneling In Rear - AR68.30-P-4780RG

Model 190.3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move driver seat and passenger set toward front to end position
2	Remove belt end fitting		AR91.40-P-1030-02A

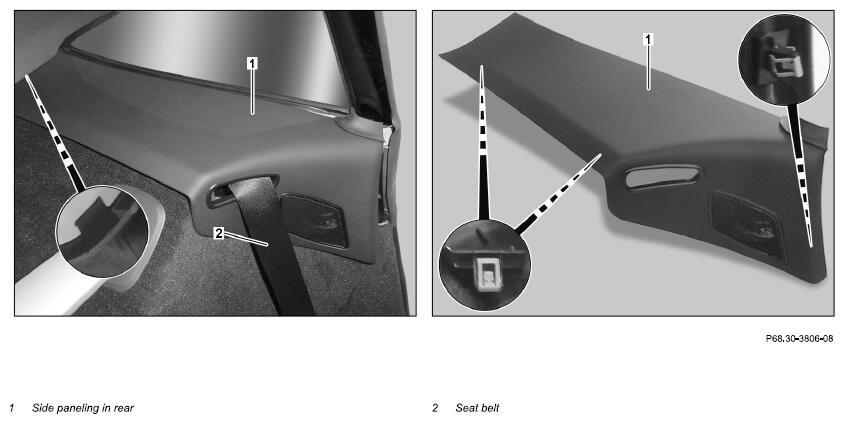

3	Unclip side paneling in rear (1) upward on driver and passenger side
4	Guide seat belt (2) through side paneling in rear (1)
5	Remove side paneling in rear (1)	Ensure correct seat of side trim clips in rear (1). Guide lug of side trim in rear (1) must hook into C-pillar trim. Damaged clips must be replaced.
6	Install in the reverse order
