Remove/Install Trim At C-pillar - AR68.30-P-4490RG
Model 190.3
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove rear passenger compartment side trim. | AR68.30-P-4780RG | |

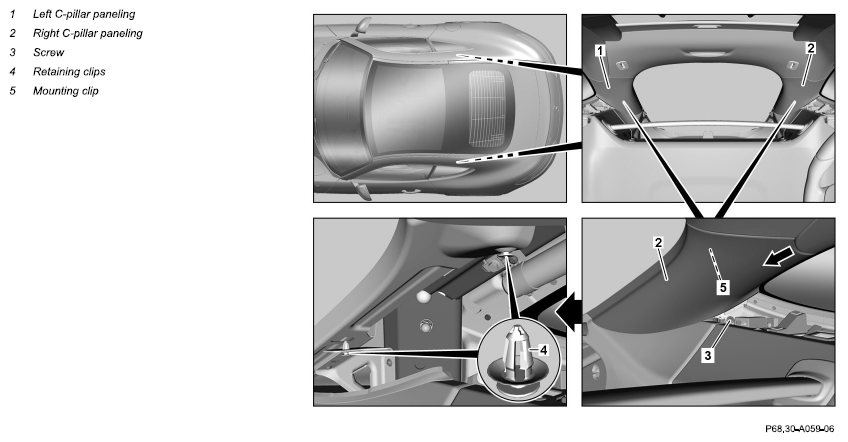

| 2 | Remove bolt (3). | ||
| 3 | Unclip C-pillar trim (1 and 2) from the retaining dips (4 and 5). | ||
| 4 | Unhook C-pillar trim (1 and 2) toward the rear (arrow) and remove. | ||
| 5 | Install in the reverse order. |
