Remove/Install Front Fender - AR88.10-P-1005RG

Model 190

Courtesy of MERCEDES-BENZ USA

Shown on the LH side on model 190 except code M030 (GT R version) and except code M032 (black series)

Courtesy of MERCEDES-BENZ USA

Shown on model 190 except code M030 (GT R version) and except code M032 (black series)

Shown on the right side of vehicle on model 190 with code M030 (GT R version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Open hood.		AR88.40-P-1000RG
2	Remove the left/right front door.	Model 190.3 with code M032 (Black Series version) Model 190 with code M030 (GT R version)	AR72.10-P-0500RG

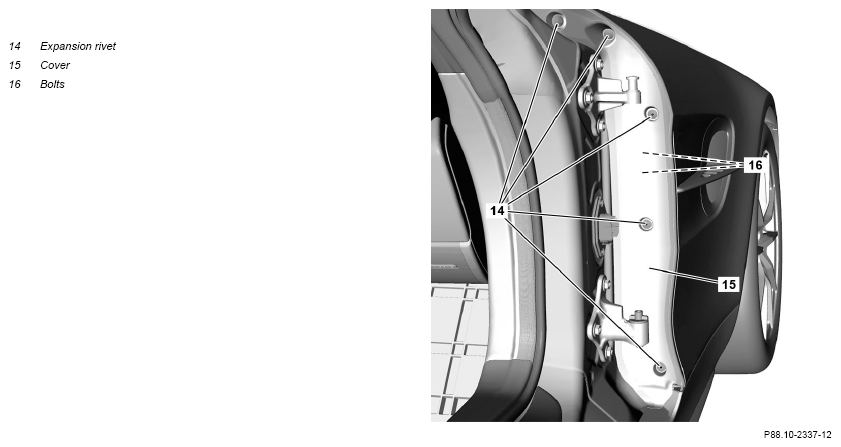

3	Unclip the expansion rivet (14) from the cover (15) and remove the cover (15).	Model 190.3 with code M032 (Black Series version) Model 190 with code M030 (GT R version) Clip remover	Fig 2
4	Remove screws (16).	Model 190.3 with code M032 (Black Series version) Model 190 with code M030 (GT R version) Bolt/nut, attachment of fender to body	*BA88.10-P-1002-01H
5	Remove the fender liner in the front fender (1).	Model 190 with code M032 (Black Series version)	AR88.10-P-1300RGB
		Model 190 except code M032 (Black Series version)	AR88.10-P-1300RG
6	Remove longitudinal member panel.	Model 190 with code M032 (Black Series version)	AR88.80-P-6000RGB
		Model 190 except code M032 (Black Series version)	AR88.80-P-6000RG

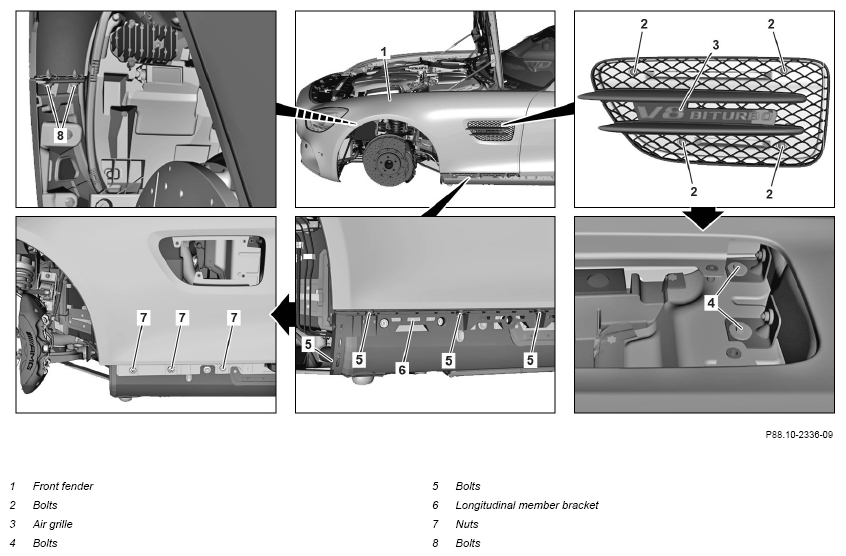

7	Unscrew the bolts (5) and remove the longitudinal member panel holder (6).
8	Remove nuts (7).	Bolt/nut, attachment of fender to body	*BA88.10-P-1002-01H
9	Remove screws (8).
10	Unscrew the bolts (2) and remove the air grille (3).	Model 190 except code M030 (GT R version) except code M032 (Black Series version)
11	Remove bolts (4).	Model 190 except code M030 (GT R version) except code M032 (Black Series version)
		Bolt/nut, attachment of fender to body	*BA88.10-P-1002-01H

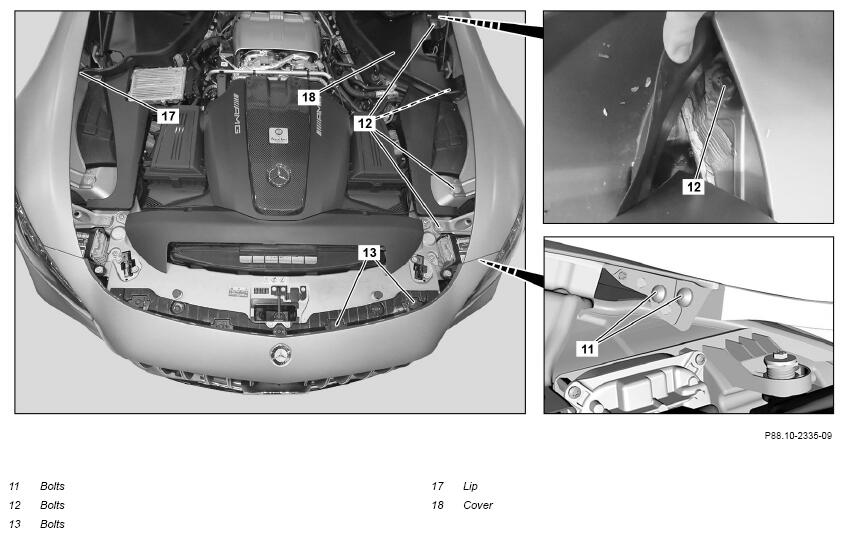

12	Remove screws (11).	The number of screws varies depending on the model year.
13.1	Place the seal (17) to one side in the working area.	Only for removal of front right fender (1).
13.2	Remove cover (18).	Only for removal of front left fender (1).
14	Remove screws (12).	Bolt/nut, attachment of fender to body	*BA88.10-P-1002-01H
15	Use suitable means to stop the front bumper from falling.
16	Unscrew the bolts (13) on the repair side and remove the bumper.	: Secure the bumper in its original position.
17	Remove the left/right front fender (1).	Carefully remove the front left/right fender (1) and place it on a suitable mat. Otherwise paint damage can occur.
		Helper required.
18	Install in the reverse order.
	Check
19	Check and, if necessary, adjust the gap dimension on the front fender (1).		AR60.00-P-0700-01RG
		Gap dimension, longitudinal member panel to fender/sidewall panel	*BE60.00-P-1009-01EA
		Gap dimension, fender to door paneling	*BE60.00-P-1007-01EA
		Gap dimension, fender to bumper lamp unit	*BE60.00-P-1005-01EA
		Gap dimension, fender to lamp unit	*BE60.00-P-1003-01EA
		Gap dimension, fender to engine hood	*BE60.00-P-1002-01EA
		Feeler gauge	Fig 1

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
