Remove/Install Front Door - AR72.10-P-0500RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Completely lower side window (2)
2	Switch of ignition, remove transmitter key if necessary and lay transmitter key down outside of KEYLESS-GO transmission range
3	Disconnect battery ground line		AR54.10-P-0003RG

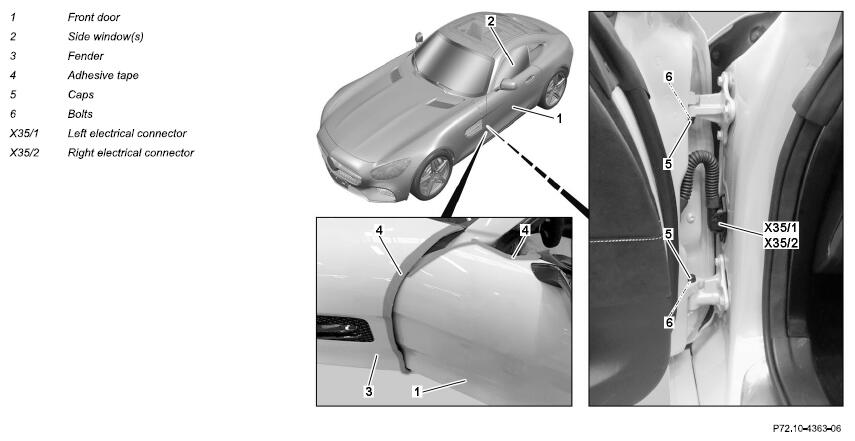

4	Mask fender (3) and front door (1) at edges with adhesive tape (4) as shown
5	Disconnect left electrical connector (X35/1) or right door electrical connector (X35/2)
6	Remove protective caps (5)
7	Remove bolts (6)	Moisten thread on bolts (6) with Loctite. Repair paint damage in area of bolts (6).
		Bolt to hinge shaft	*BA72.10-P-1014-01T
		Thread locking agent, Loctite 243 (10 ml)	*BR00.45-Z-1133-02A
8	Remove front door (1) from hinges and lay on a suitable base	Carefully remove front door (1). If the front door (1) comes into contact with the vehicle, the paint can be damaged. Helper required.
9	Install In the reverse order
	Check
10	Check gap dimensions on front door (1), correct If necessary		AR72.10-P-0550RG
11	Calibrate power window	Actuate button to close side window and hold for approx. 5 s. Then check whether side window opens or closes correctly.
12	Check front door for proper function (1)	The functions can vary depending on the equipment.

FRONT DOOR

Number	Designation		Model 190
BA72.10-P-1014-01T	Bolt to hinge shaft	Nm	34

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1133-02A	Thread locking agent, Loctite 243 (10 ml)	A 613 989 09 71 09
