Remove/Install Longitudinal Member Paneling - AR88.80-P-6000RG

Model 190

except code M032 (Black Series version)

Courtesy of MERCEDES-BENZ USA

	Remove/install

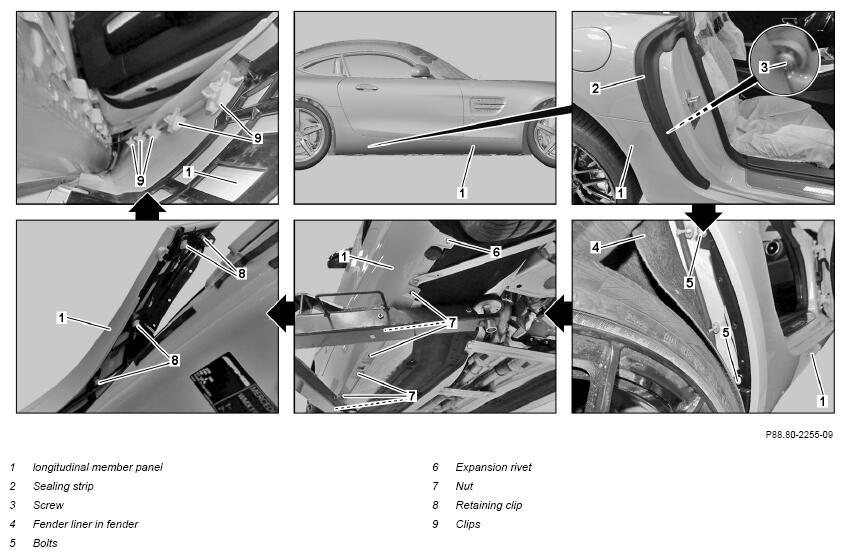

1	Remove seal strip (2)
2	Unscrew bolt (3)
3	Detach front section on fender liner in fender (4)	: Loosen only until bolts (5) are accessible.	AR88.10-P-1400RG
4	Unscrew bolts (5)
5	Remove expansion rivet (6)
6	Unscrew nut (7)
7	Unclip longitudinal member panel (1) on retaining clip (8) at rear end	Clip remover	Fig 2
8	Loosen clips (9) and remove longitudinal member panel (1) starting at rear
9	Remove longitudinal member panel (1)
10	Install in the reverse order
	Check
11	Check gap dimensions on longitudinal member panel (1), adjust if necessary		AR60.00-P-0700-01RG
		Gap dimension, longitudinal member panel to fender/sidewall panel	*BE60.00-P-1009-01EA
		Feeler gauge	Fig 1

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1009-01EA	Gap dimension, longitudinal member panel to fender/sidewall panel	Dimension "I"	mm	0 (+0, 5)	0, 5 (±0, 5)
		See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
