Remove/Install Longitudinal Member Paneling - AR88.80-P-6000RGB
Model 190
with code M032 (Black Series version)
MODIFICATION NOTES
| 25.06.2021 | Heat cover (10) and release adhesively bonded connection, added. | Operation step 6 |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove nuts (2). | ||

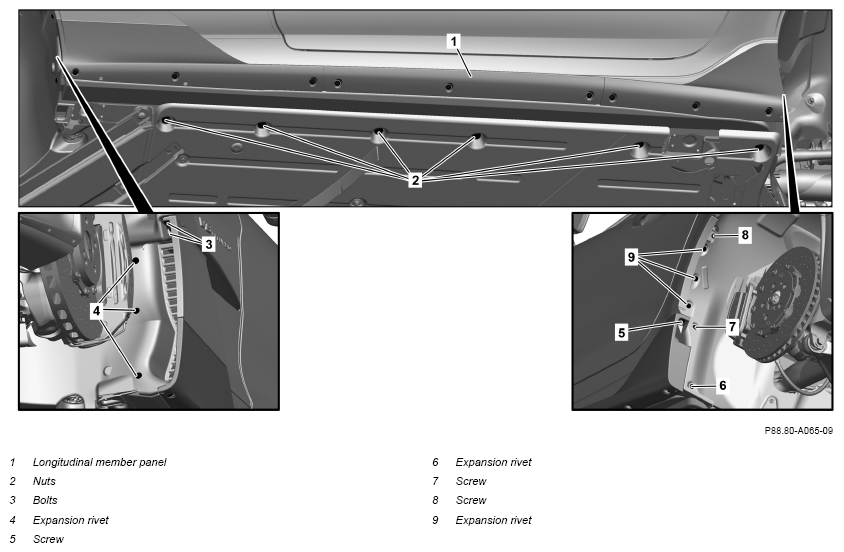

| 2 | Remove expansion rivets (4). | Fig 2 | |
| 3 | Remove screw/bolts (3). | ||
| 4 | Remove expansion rivets (6 and 9). | Fig 2 | |
| 5 | Remove screws (5, 7, and 8). | ||

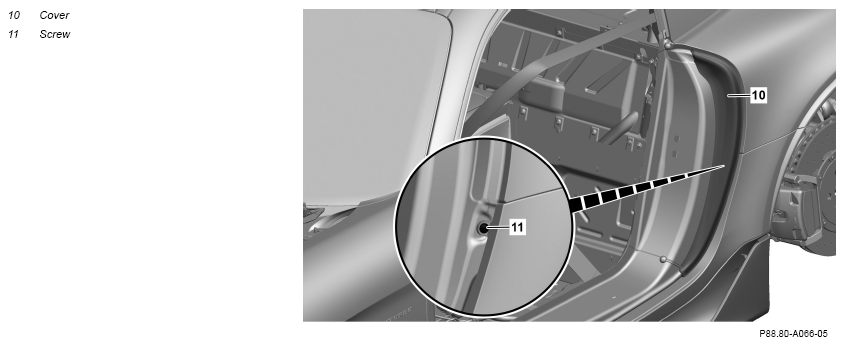

| 6 | Heat cover (10) and release adhesively bonded connection. | ||
| 000 588 15 84 00 Heat gun | WS54.00-P-0125B | ||
| 7 | Remove cover (10) and remove residual adhesive from body. | ||
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| 8 | Remove screw (11). | ||
| 9 | Unclip longitudinal member panel (1) and remove. | Unclip longitudinal member panel (1) by hand. Surface will otherwise be damaged by sharp-edged tools. |
|
| 10 | Install in the reverse order. | ||
| Check | |||
| 11 | Check gap dimensions on longitudinal member panel (1), adjust if necessary. | AR60.00-P-0700-01RG | |
| *BE60.00-P-1009-01EA | |||
| Fig 1 |
GAP DIMENSIONS
| Number | Designation | Model 190.3 | Model 190.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1009-01EA | Gap dimension, longitudinal member panel to fender/sidewall panel | Dimension "I" | mm | 0 (+0, 5) | 0, 5 (±0, 5) |
| See | AR60.00-P-0700-01RG | AR60.00-P-0700-01RG | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
