Retrofit Incar Hotspot - AZ82.80-P-0002GQX

Model 166.8## (except 166.874) 1#

with code 386 (Comfort telephony)

with code 512 (COMAND APS with DVD changer)

except code 460 (Canada version)

except code 494 (US version)

except code 498 (Japanese version)

except code 830 (China version)

Model 166.8## (except 166.874) 1#

with code 386 (Comfort telephony)

with code 527 (COMAND APS with single DVD drive (with navigation))

except code 460 (Canada version)

except code 494 (US version)

except code 498 (Japanese version)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove paneling on left in trunk
			AR68.30-P-4800GQX
2	Fold floor covering below rear seats towards rear
			AR68.20-P-4800GQX

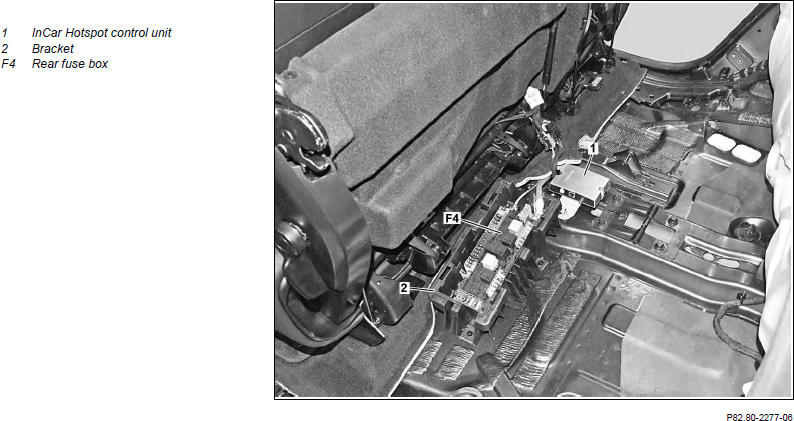

3	Remove rear fuse box (F4) with electrical lines connected from bracket (2) and remove bracket (2)
			AR54.15-P-1261GQ
	Install
4	Retrofit In Car Hotspot control unit (1) with bracket		AZ82.80-P-0002-02GQX
5	Install wiring harness for In Car Hotspot control unit (1)	MODEL 166.8 with CODE 228 (Stationary heater)	AZ82.80-P-0002-01GQY
		MODEL 166.8 except CODE 228 (Stationary heater)	AZ82.80-P-0002-01GQX
		Left rear seat ground point	*BA00.19-P-1019-01G
6	Retrofit Telestart antenna	MODEL 166.8 with CODE 228 (Stationary heater)	AZ83.70-P-0009-01GQX
7	Fold floor covering under rear seats towards front
8	Make cutout for In Car Hotspot control unit (1) in floor covering		AZ82.80-P-0002-04GQX
9	Install remaining parts
	Update Vehicle Documentation (VeDoc)
10	Attach note "In Car Hotspot retrofitted as per AZ82.80-P-0002GQX" under field organization texts to design group 82
	Check
11	Check function of In Car Hotspot	See owner's manual.

Number	Designation			Model 166
BA00.19-P-1019-01G	Left rear seat ground point	W17/1	Nm	10

Part no.	Designation	Quantity
KG 98 (see EPC)	In Car Hotspot parts kit	1
