Remove/Install Side Paneling In Trunk - AR68.30-P-4800GQX
Model 166.8

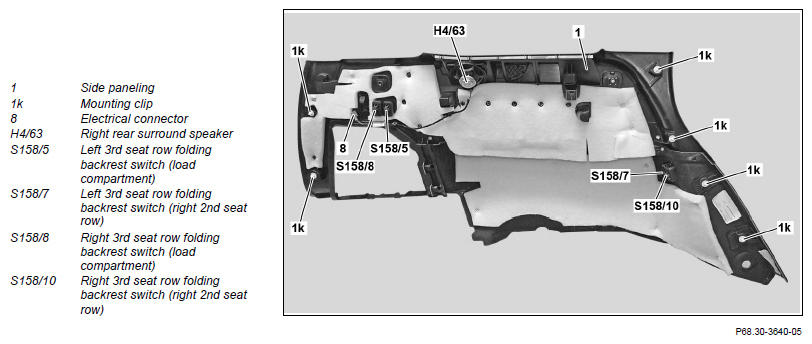

Shown on right side paneling in model 166.873

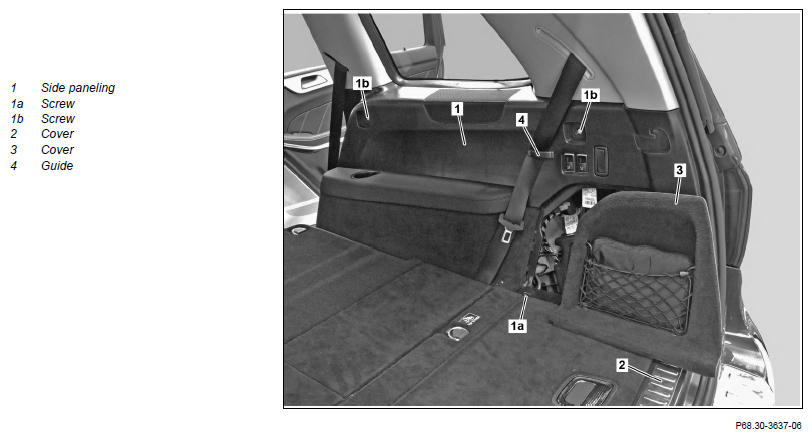

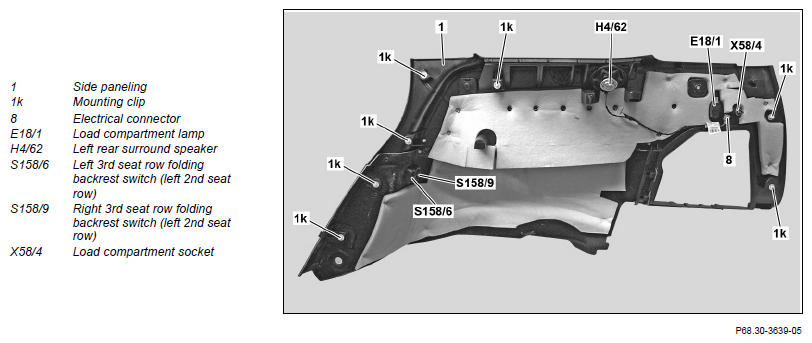

Shown on left side paneling in model 166.873
Shown on right side paneling in model 166.873

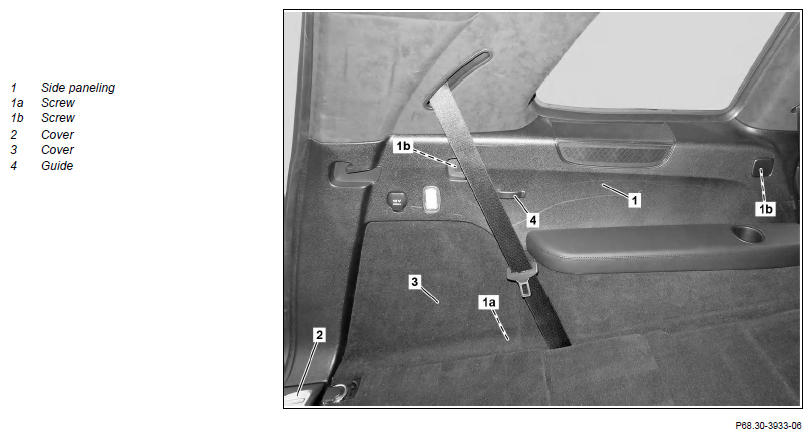

Shown on left side paneling in model 166.873

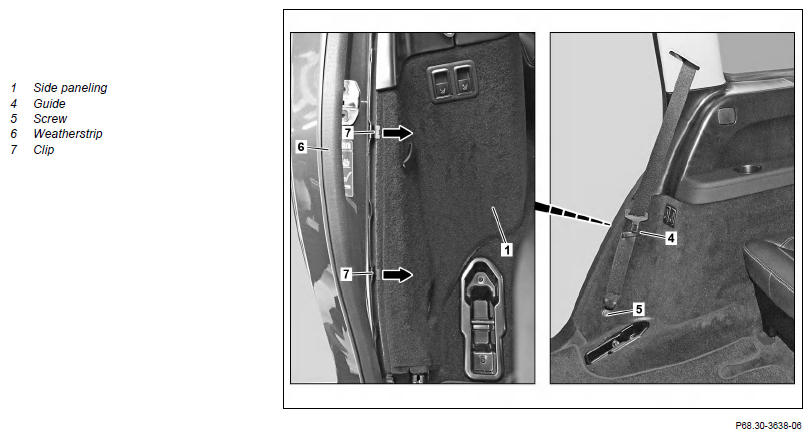

Shown on right side paneling in model 166.873
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Fold rear seat to the front | ||
| 2 | Remove cargo area cover | ||
| 3 | Fold up backrest of third seat row | ||
| 4 | Lift load compartment floor and remove cover (2) from rear center section | ||
| 5 | Remove cover (3) | Fig 3 | |
| 6 | Remove bolt (1) | ||
| 7 | Remove belt strap from guides (4) | ||
| 8 | Pry off covers above bolts (1b) and unscrew bolts (1b) | Fig 3 | |
| 9 | Unscrew bolt (5) from belt end fitting | *BA91.40-P-1007-01R | |
| 10 | Remove rear door sill molding | AR68.30-P-4100GQ | |
| 11 | Remove weather strip (6) in area of side paneling (1) | ||
| 12 | Pry out side paneling (1) in direction of clamps (7) | Fig 3 | |
| 13 | Pry side paneling (1) out of body | For this purpose directly move assembly wedge to retaining clips (1k) and pry out carefully. Otherwise damage will occur. |
|
| Fig 3 | |||
| 14.1 | Unlock electrical connectors on left 3rd seat row folding backrest switch (2nd seat row on right) (S158/7), right 3rd seat row folding backrest switch (2nd seat row on right) (S158/10), left 3rd seat row folding backrest switch (cargo area) (S158/5) and right 3rd seat row folding backrest switch (cargo area) (S158/8) and disconnect | When removing right side paneling (1). | |
| 14.2 | Unlock electrical connectors on left 3rd seat row folding backrest switch (2nd seat row on left) (S158/6), right 3rd seat row folding backrest switch (2nd seat row on left) (S158/9), cargo area power outlet (X58/4) and cargo area lamp (E18/1) and disconnect | When removing left side paneling (1). | |
| 15 | Unlock electrical connector (8) from feed line for left rear surround speaker (H4/62) or right rear surround speaker (H4/63) and disconnect | Model 166.8 with code 810 (Sound system) Model 166.8 with code 811 (Advanced sound system) |
|
| 16 | Remove side paneling (1) | ||
| 17 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 166 | |
|---|---|---|---|
| BA91.40-P-1007-01R | Bolt, belt end fitting/seat belt lock, rear seat on body/seat | Nm | 35 |
