Retrofit Telestart Antenna - AZ83.70-P-0009-01GQX

MODEL 166.8 with CODE 228 (Auxiliary heater)

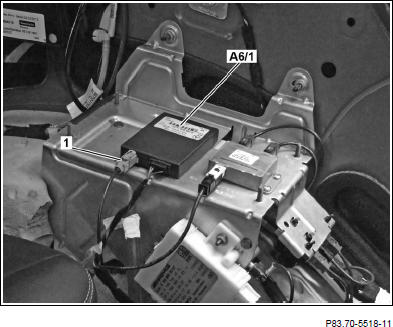

  1. Release, detach and strap down beige 1-pin connector (1) at stationary heater radio remote control receiver (A6/1).

    IMPORTANT Beige 1-pin connector (1) is no longer required.

    G14137907Courtesy of MERCEDES-BENZ USA

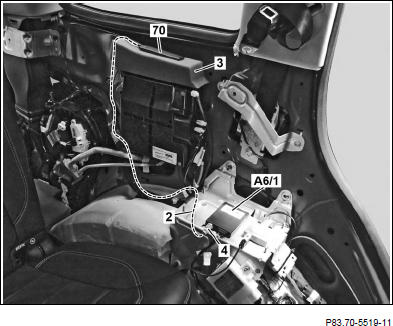

  2. Wrap felt tape around antenna line (2) of Telestart antenna (70).
  3. Remove protective foil from Telestart antenna (70) and bond Telestart antenna (70) as shown to insulation (3).
  4. Route antenna line (2) along existing lines to stationary heater radio remote control receiver (A6/1) and connect beige 1-pin connector (4) to stationary heater radio remote control receiver (A6/1).
  5. Fix antenna line (2) in place at existing lines.

    IMPORTANT Strap down excess length of antenna line (2) here in a ring of at least 0 50 mm.

    G14137908Courtesy of MERCEDES-BENZ USA
