Retrofit Cutout In Floor Covering For Incar Hotspot - AZ82.80-P-0002-04GQX

MODEL 166.8

Courtesy of MERCEDES-BENZ USA

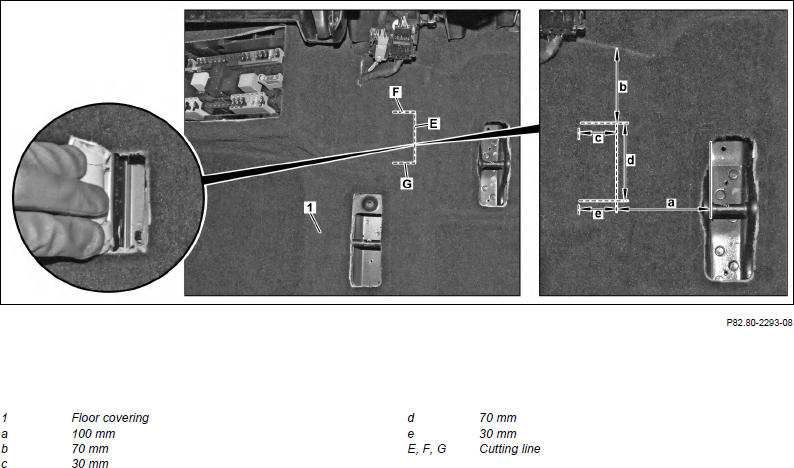

1. Mark cutting line (E) parallel to vehicle's longitudinal axis with distance dimension (a) on floor covering (1).
2. Mark cutting line (F) at right angle to vehicle's longitudinal axis with distance dimension (b) and length dimension (c) on floor covering (1).

   Measure dimension (b) from front edge of rear floor covering (1).

3. Mark cutting line (G) at right angle to vehicle's longitudinal axis with distance dimension (d) and length dimension (e) on floor covering (1).
4. Raise floor covering (1) slightly and cut using a utility knife along the cutting lines (E, F, G).

   Cut the cutting line (E) on the floor covering (1) only in the area between cutting line (E) and cutting line (G).

5. Lower and straighten floor covering (1).
6. Fold up the cut section of the floor covering (1) and check accessibility of card slot for SIM card on the In Car Hotspot.
7. Clean floor covering (1).
