Remove/Install Windshield - AR67.10-P-1700GQC

MODEL 292

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Notes on removal/installation of windshield		AH67.10-P-1000-01P
	Remove
1	Prepare 1-component adhesive	: Heating time is approx. 60 minutes.	AR67.10-P-1000-12SX
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Adapter	Fig 2
2	Open side window in driver door	The side window of the driver door should remain open during the curing time. Otherwise the windshield (1) can be pressed toward outside by the air when a door is closed.
3	Remove water repellent		AR88.85-P-2100RT
4	Remove air-water duct		AR83.25-P-1402GQ

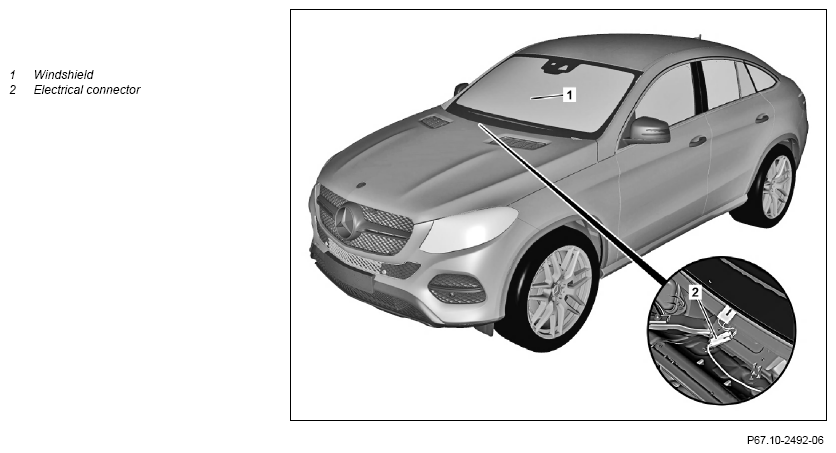

5	Disconnect electrical connection (2)
6	Fix electrical line for windshield (1) in place on outside of windshield (1) with suitable duct tape
7	Remove paneling from A-pillars		AR68.30-P-4050GQC
8	Remove inside rearview mirror		AR68.40-P-0001GQA
9	Remove rain/light sensor		AR82.30-P-7800GQC
10	Remove multifunction camera	Model 292 with code 238 (Active lane keeping Assist) Model 292 with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) Model 292 with code 268 (Brake Assist System Plus) Model 292 with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) Model 292 with code 271 (Autonomous brake intervention/pedestrian protection) Model 292 with code 300 (PRE-SAFE® Brake) Model 292 with code 476 (Lane keeping assist) Model 292 with code 513 (Speed Limit Assist) Model 292 with code 608 (Adaptive Highbeam Assist) Model 292 with code 628 (Adaptive Highbeam Assist Plus)	AR54.21-P-3000GQC
11	Remove sun visors
12	Cover dashboard	To protect against dirt and damage.
	Risk of injury from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows	Wear protective gloves and safety glasses.	AS67.00-Z-0004-01A
13	Cut out windshield (1) with window removal tool and remove	Helper required to separate windshield (1).	AR67.10-P-1000-11SX
	Clean
14	Clean passenger compartment
	Install
15	Prepare body flange for installation of window		AR67.10-P-1501-01P
	General notes about painting the body flange in the glazing area		AH98.00-P-9408-06A
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Primer stick	*BR00.45-Z-1012-07A
		Hepox 2K EP primer filler 4017 (Spray Max)	*BR00.45-Z-1050-07A
16	Transfer detachable parts on windshield (1)	Use new windshield (1) depending on version.
17	Prepare windshield (1) for installation	The bonding area on the windshield (1) must be absolutely free of dust and grease. Otherwise the adhesive force of the adhesive material starts to decrease.	AR67.10-P-1000-03P
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
18	Replace rubber window spacers	Do not yet remove protective foils.	AR67.10-P-1000-02T
19	Align windshield (1) in body opening and mark installation position	Helper required. Observe gap.	AR67.10-P-1000-09GQC
		Model 292 except code 413 (Automatic panoramic sliding sunroof) Distance between top edge of window and front edge of roof	*BE67.10-P-1001-01H
		Model 292 with code 413 (Automatic panoramic sliding sunroof) Distance between top edge of window and frame of panoramic roof	*BE67.10-P-1002-01H
		Feeler gauge	Fig 1
20	Remove protective foil from rubber window spacers
21	Apply adhesive material	Install windshield (1) within 10 minutes after applying adhesive material to body flange. Otherwise the adhesive force of the adhesive material starts to decrease.	AR67.10-P-1000-08P
		Uniformly apply adhesive bead at a height of approx. 13 mm. Helper required. Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Adapter	Fig 2
22	Install windshield (1) and fix in place with suitable duct tape	Helper required. The curing time of the adhesive material is approx. 2 h measured from the time the windshield (1) is installed.	AR67.10-P-1503-01P
23	Install sun visors
24	Install multifunction camera	Model 292 with code 238 (Active lane keeping Assist) Model 292 with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) Model 292 with code 268 (Brake Assist System Plus) Model 292 with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) Model 292 with code 271 (Autonomous brake intervention/pedestrian protection) Model 292 with code 300 (PRE-SAFE® Brake) Model 292 with code 476 (Lane keeping assist) Model 292 with code 513 (Speed Limit Assist) Model 292 with code 608 (Adaptive Highbeam Assist) Model 292 with code 628 (Adaptive Highbeam Assist Plus)	AR54.21-P-3000GQC
25	Install rain/light sensor		AR82.30-P-7800GQC
26	Install inside rearview mirror		AR68.40-P-0001GQA
27	Install paneling on A-pillars		AR68.30-P-4050GQC
28	Connect electrical connection (2)
29	Install air/water duct		AR83.25-P-1402GQ
30	Install water repellent		AR88.85-P-2100RT
31	Remove cover from dashboard
32	Close side window in driver door	After curing time of adhesive material.
33	Remove all adhesive strips	After curing time of adhesive material.
	Clean
34	Clean windshield (1) and vehicle interior	After curing time of adhesive material.

WINDSHIELD

Number	Designation		Model 292
BE67.10-P-1001-01H	Distance between top edge of window and front edge of roof	mm	2, 5 (± 1, 0)

WINDSHIELD

Number	Designation		Model 292
BE67.10-P-1002-01H	Distance between top edge of window and frame of panoramic roof	mm	2, 6 (± 1, 0)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-07A	Primer stick	A 000 986 27 50
BR00.45-Z-1050-07A	Hepox 2K EP primer filler 4017 (Spray Max)	Spies Hecker Gmbh
BR00.45-Z-1135-02A	Repair kit for installing windshields, 1-component adhesive	A 221 670 81 01
