Remove/Install Paneling On A-Pillar - AR68.30-P-4050GQC
MODEL 292
| Note on functional reliability of windowbag | AH91.60-P-0693-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||

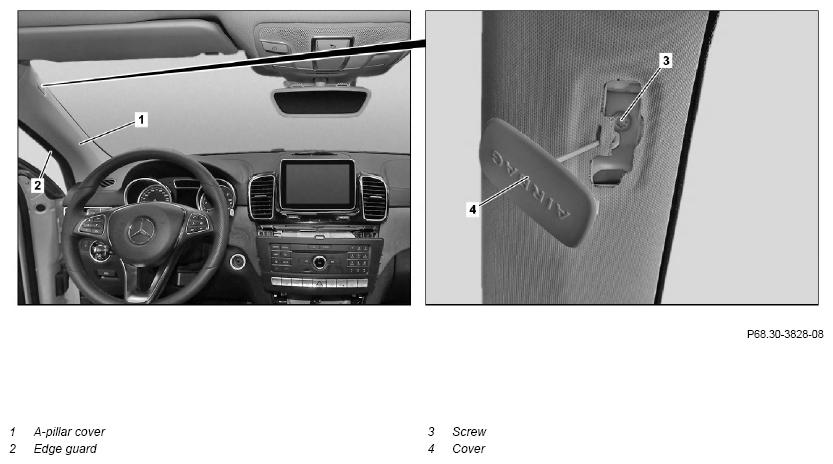

| 1 | Remove edge guard (2) in area of A-pillar paneling (1) | ||
| 2 | Unclip cover (4) | Figure | |
| 3 | Unscrew bolt (3) | ||
| 4 | Press off A-pillar paneling (1) | ||
| Figure | |||
| 5 | Remove A-pillar paneling (1) out of dashboard guide upward | ||
| 6 | Install in the reverse order |
